LEVELING AND STABILIZATION
GROUND CONTROL
®
3.0 6 POINT AFTERMARKET ASSEMBLY
Jack Bracket
Mounting
Bolt x24
Rear Sensor & Harness
One Control Touch Panel/ Harness
Hall Effect
Jacks;
Right Rear
Hall Effect
Jacks; Left Rear
Landing
Gear x2
Jack Mounting
Bracket x2
Snapper Pin x2
Landing Gear
Harnesses x2
Rear Jack
Harnesses x2
Power and
Ground
Harness
Jack Mounting Bolt/Nut
x12
Bolt On
Pull Pin
Carriage Bolt/ Nut x4
Rear
Sensor
Screw x4
Rear Sensor
Mounting Plate
6 Point Controller
Auto Leveling Control Touch Pad
Rev: 06.29.2018
Contact us: Lippert Components Inc. - www.lci1.com/support - Phone: (574) 537-8900 - Email: customerservice@lci1.com
Page 23 of 26
LEVELING AND STABILIZATION
GROUND CONTROL 3.0 COMPONENTS
D
H
G
F
E
C
B
A

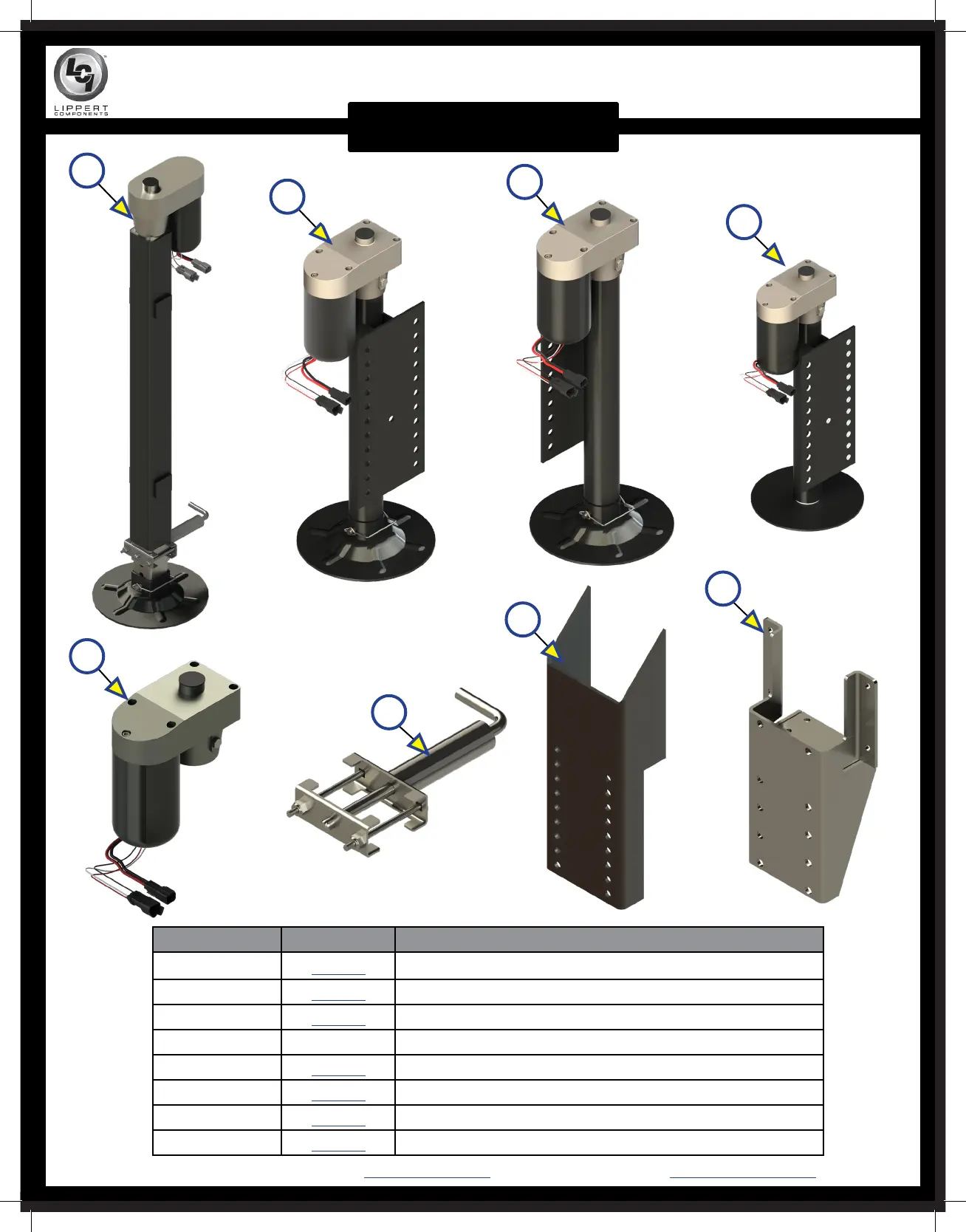

Callout Part # Description
A
305340 Hall Effect Landing Gear; Front Stroke 19.8125"
B
305339 Left Hall Effect Jack; Rear and Middle 12.5" Stroke
C
344792 Right Hall Effect Jack; Rear and Middle 12.5" Stroke
D 342610 Hall Effect Jack; Rear Short 12.5" Stroke
E
343758 Hall Effect Jack Motor
F
119113 Bolt On Pull Pin
G
134989 Weld On Jack Mounting Bracket (OEM Only)
H
349975 Bolt On Jack Mounting Bracket (Aftermarket Only)
