(3) Connect Power Cable to Power Adapter.
( Figure 5.4-B )

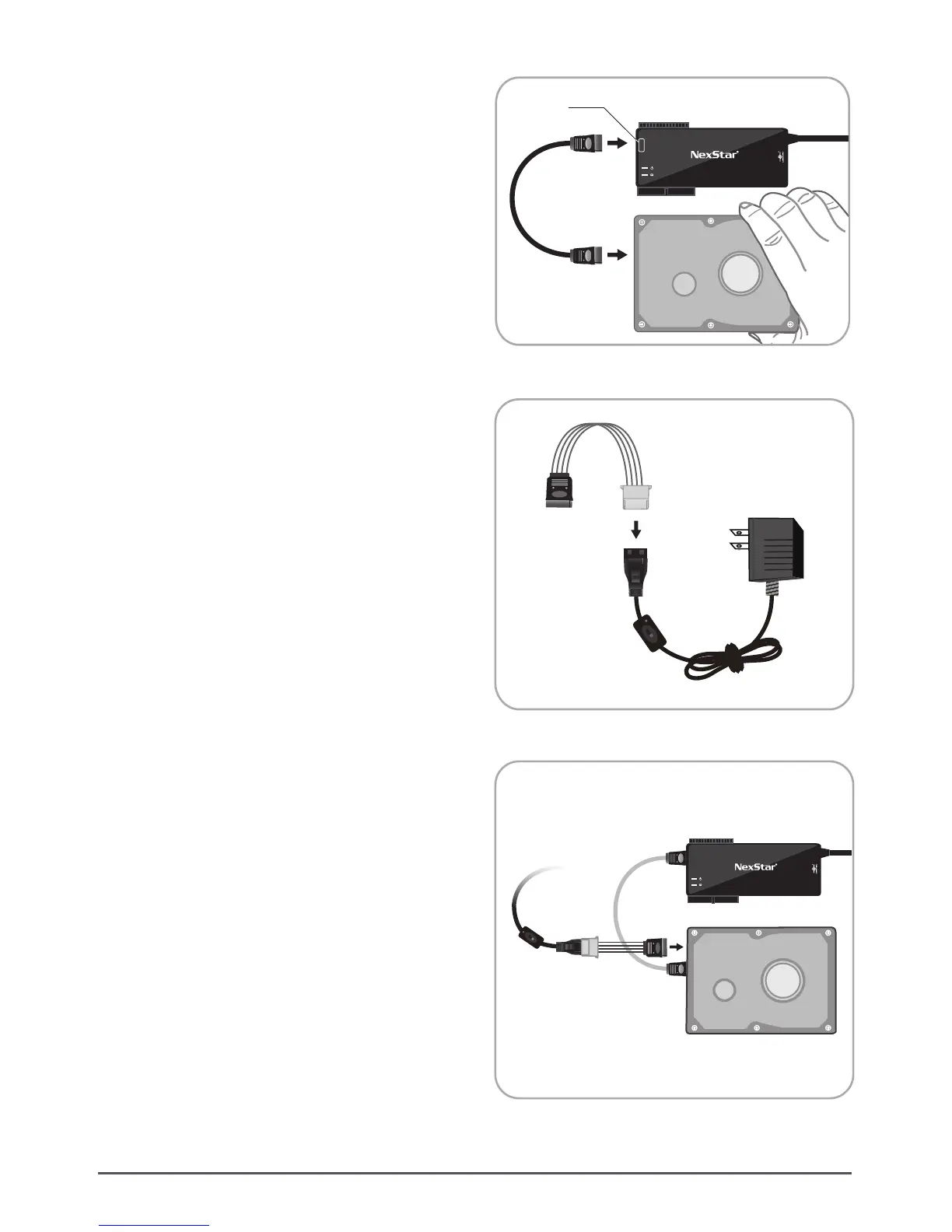

5.4. 2.5” & 3.5” SATA Hard Drive installation:
Installation
9
(4) Connect Power Adapter to hard drive.
( Figure 5.4-C )
( Figure 5.4-B )
( Figure 5.4-C )
(1) Using a SATA cable, connect one cable header to
your SATA hard drive. ( Figure 5.4-A1 )
(2) Connect the other header to the SATA port of
NexStar® Universal Storage Adapter.
( Figure 5.4-A2 )
( Figure 5.4-A1 5.4-A2 )
SATA
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
SATA
Universal Storage Adapter
SATA
SATA
SATA
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
Universal Storage Adapter
SATA
SATA
(A2)
(A1)
SATA 2.5” & 3.5” HDD
SATA 2.5”
& 3.5 HDD
