5.6.2 Air filter inspection

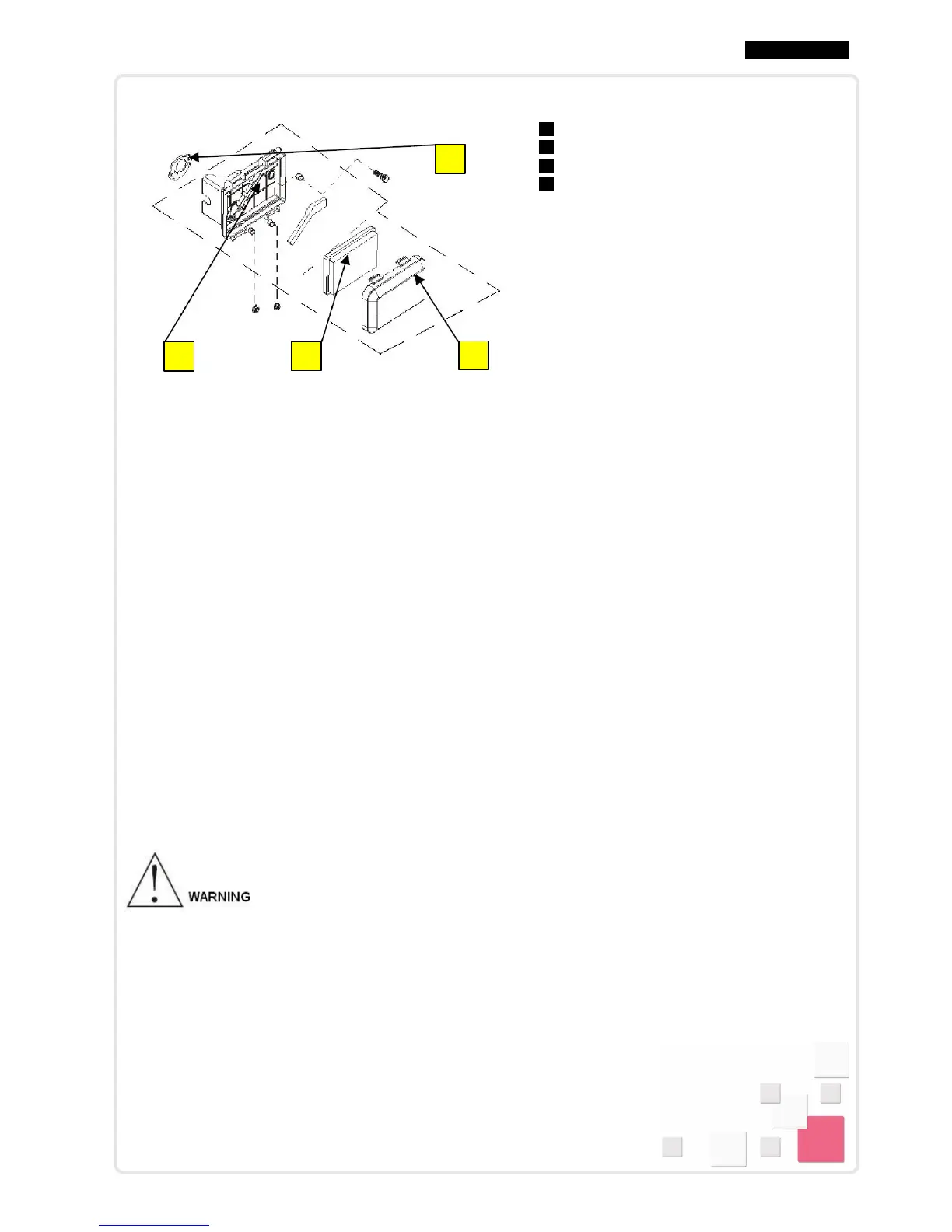

1 Gasked plate
2 Air filter base
3 Foam filter element
4 Air filter cover
Remove the air cleaner cover and inspect the filter, clean or replace dirty filter elements, always replace damaged filter elements, if
equipped with an oil-bath air cleaner, also check the oil level.
5.6.3 Air cleaner service
A dirty air filter will restrict air flow to the carburetor, reducing engine performance, if you operate the engine in very dusty areas, clean
the air filter more often than specified in the maintenance schedule.
NOTE:
Operating the engine without an air filter, or with a damaged air filter ,will allow dirt to enter the engine, causing rapid engine wear,
this type of damage is not covered by the distributor’s limited standard Oil-bath type and Half-bath type warranty..
5.6.3.1 Oil-bath types
• Remove the air filter cover
• Clean the element with the solution which has a high fire point and non-flammable character and then dry it.
• Soak the element with engine oil and then squeezes unwanted oil.
• Reassemble the element and cover.
5.6.3.2 Half-bath types
• Remove the air filter cover.
• Inspect the filter element(s),cleaning or replace it if necessary.
• Reassembly the element and cover.
5.6.4 Sediment cup cleaning
Move the fuel valve to the OFF position, then remove the fuel sediment cup and O-ring.
Gasoline is highly flammable and explosive You can be burned or seriously injured when Handing fuel.
Keep heat, sparks and flame away
Handle fuel only outdoors.
Wipe up spills immediately.
• Wash the sediment cup and O-ring in nonflammable solvent, and dry them thoroughly.
• Place the O-ring in the fuel valve, and install the sediment cup, tighten the sediment cup securely.
• Move the fuel valve to the ON position , and check for leaks,replace the O-ring if there is any leakage.
