VARI XP-200
3 Components & Principle

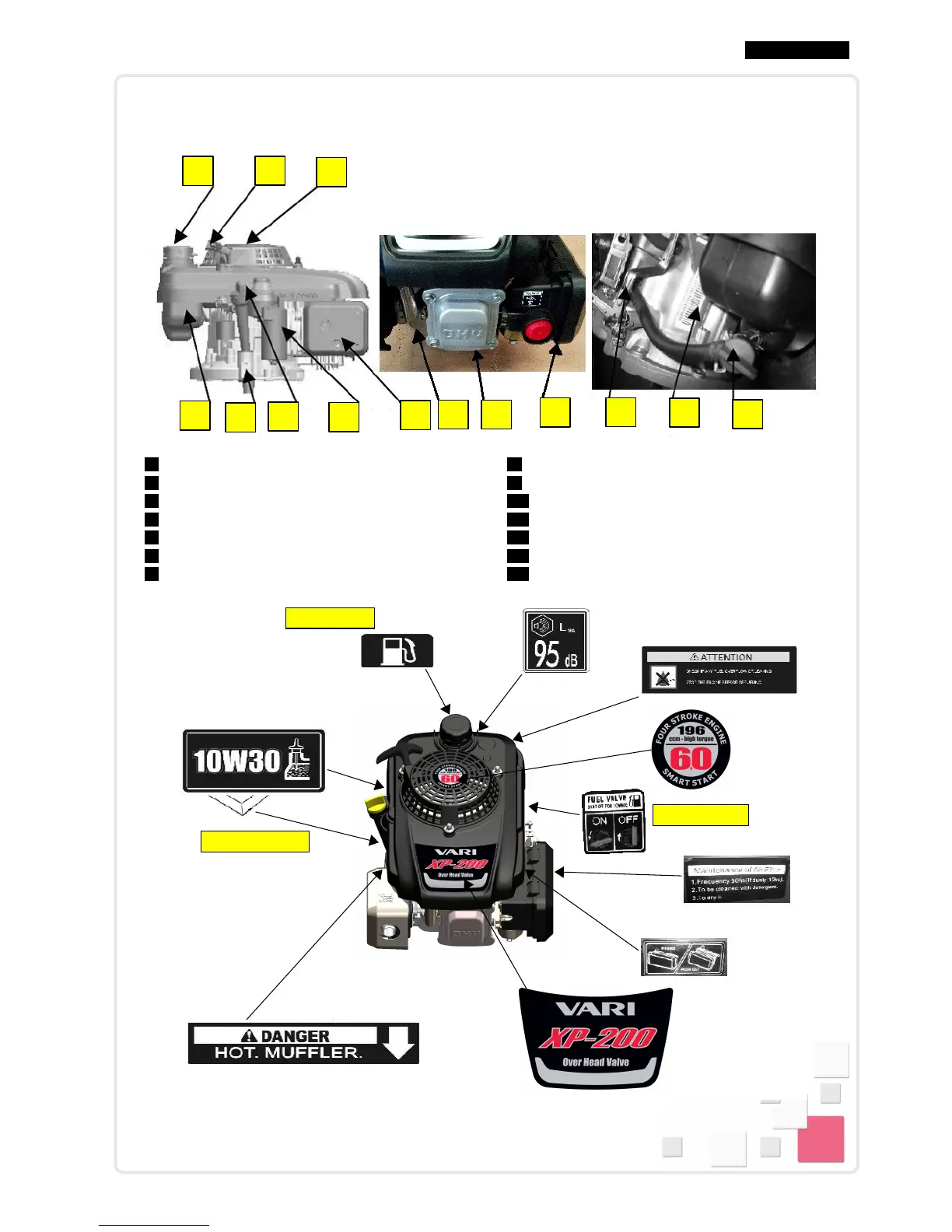

3.1 Configuration
1 Starter
2 Starter grip (only model with recoil startre)
3 Fuel tank cap
4 Fuel tank
5 Oil drain plug
6 Oil filler cap/dipstick
7 Elektric starter (only model with el. starter)
8 Muffler
9 Spark plug
10 Cylinder head cover
11 Air filter
12 Throtle lever
13 Serial number
14 Fuel switch
5
Revision 12/2013
3
2
1
4
5
6
7
14
13
12
11
10
9
8
Fule cap
Oil drain
Fuel switch
