Vari xp-200 - 8.5.1 Adjustment; 8.6 Wiring diagrams

VARI XP-200

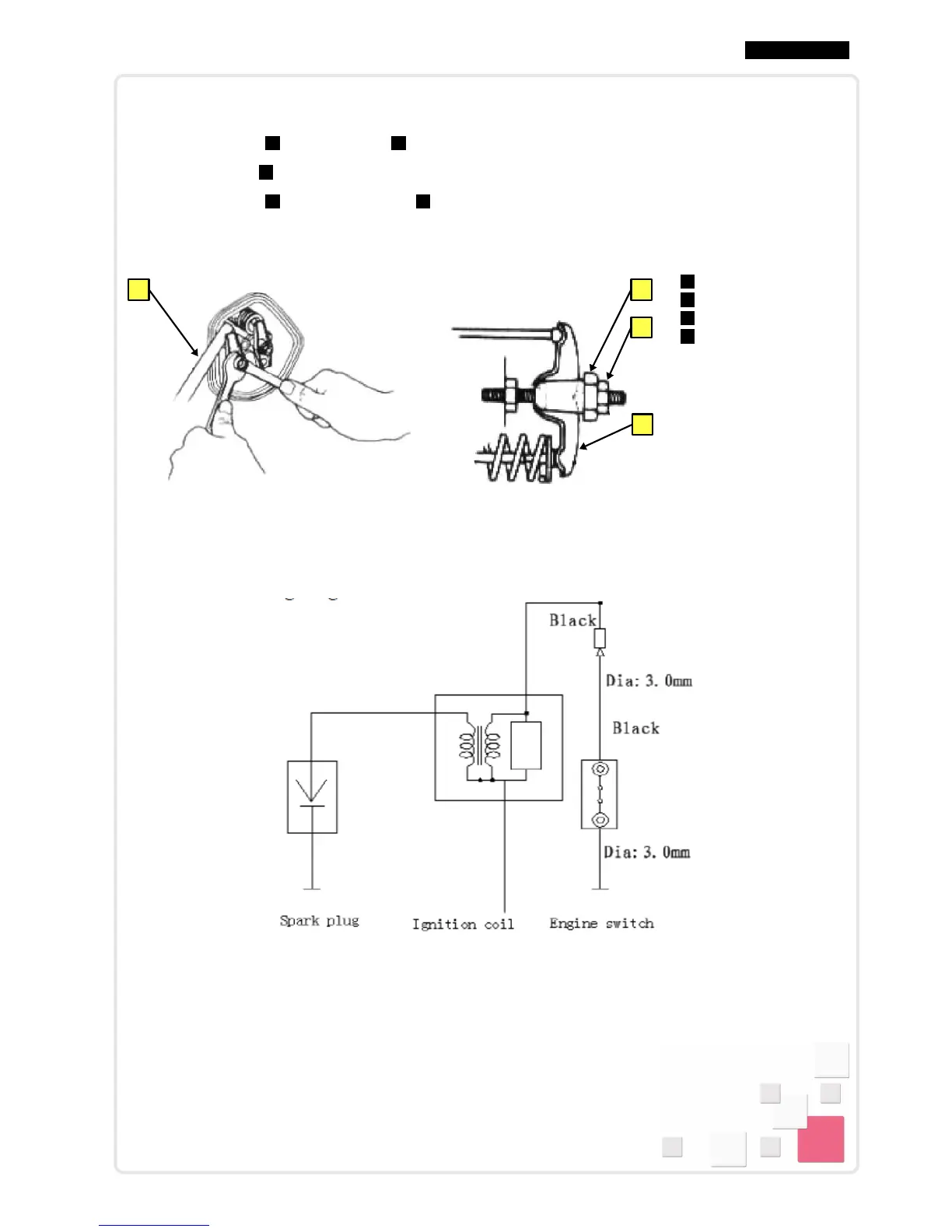

8.5.1.1 Valve lash adjustment
Intake: 0,1-0,15 mm, Exhaust: 0,15-0,2 mm.
• Grasp adjust nut 3 and release lock nut 4 .
• Turn adjust nut 3 to specified lash.
• Grasp adjust nut 3 and screw down lock nut 4 (torque 9-12 N.m).
• After screw down lock, recheck valve gap.
Unscrew adjust nut to increasing valve lash screw adjust nut decreasing valve lash.
1 Gauge
2 Rocker
3 Adjust nut
4 Lock nut
8.5.1.2 Governor system adjustment (tension spring, governor lever and bracket)
Setting the controller to a professional service.
8.6 Wiring diagrams
