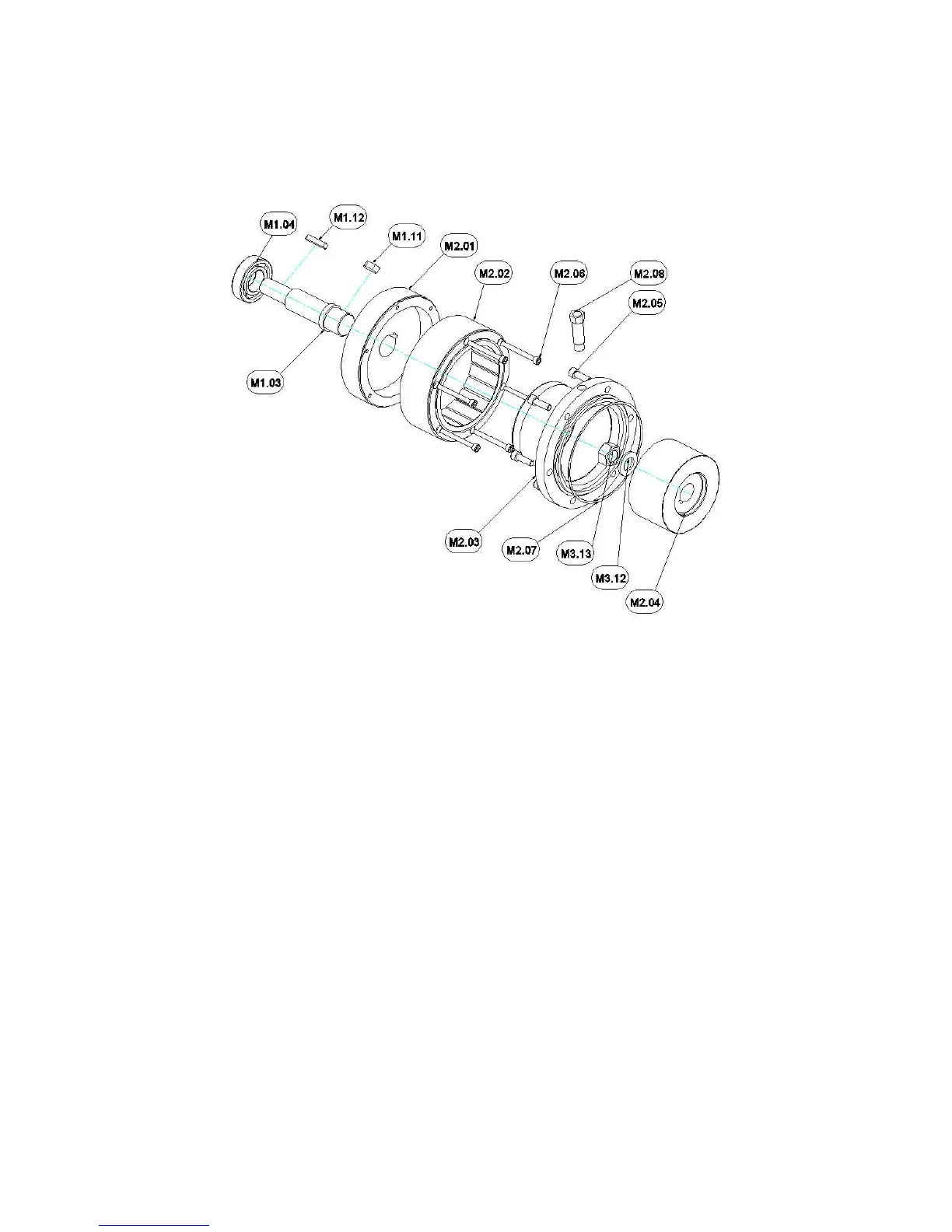

Remove the bolts (M2.05) and pull-off the containment shell (M2.03) from the intermediate flange
(M3.01).
! As regards the containment shell (M2.03), please remember that some remainders of the pumped
fluid may still be in the pump. For safety instructions, please see the relevant media data sheet.
Remove nut M18 (M3.13) and washer (M3.12) from the pump shaft (M3.08).
Separate the internal magnet (M2.04) from the pump shaft (M3.08) with the help of a suitable pull-off
device.
Remove the thrust washer (M3.11) from the pump shaft (M3.08).
Pull-off the intermediate flange (M3.01) via the pump shaft (M3.08).
Heat the intermediate flange (M3.01) to approx. 80°C. Press-out the shaft slide bearing (M3.09) from
the bearing seat.
Press out the pump shaft (M3.08) from the rotor (02).
! Make sure that the thrust washer (M3.10) will not be damaged because it loosens when pump shaft
(M3.08) and rotor (02) are pressed out.
