VARISCO V Series - Disassembly of the Bearing Bracket

Page31

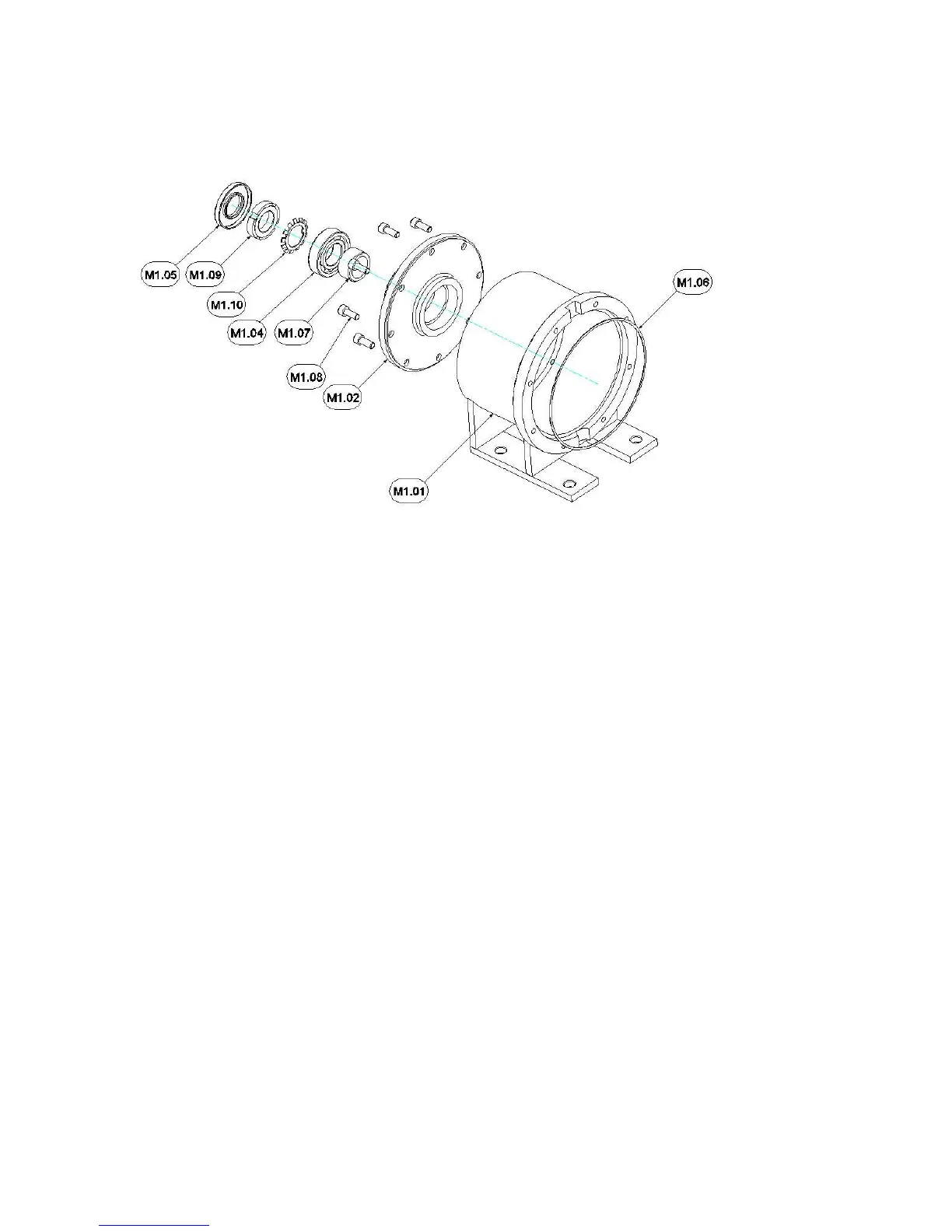

9.5 Disassembly of the bearing bracket

Remove the feather key (M1.12) from the drive shaft (M1.03).
Remove the shaft sealing ring (M1.05), the slotted nut (M1.09) and the safety plate (M1.10) from the
drive shaft (M1.03).
Press out the external magnet (M2.02) and the drive shaft (M1.03) with magnet hub (M2.01) from the
bearing bracket (M1.01) in the direction of the external magnet (M2.02).
Unscrew the bolts (M1.08) and dismantle the ball bearing cover (M1.02) from the bearing bracket
(M1.01).
Remove the ball bearing (M1.04) from the ball bearing cover (M1.02).
Unscrew the screws (M2.06) and separate the external magnet (M2.02) from the magnet hub
(M2.01).
Press out the drive shaft (M1.03) from the magnet hub (M2.01) in the direction of the feather key
(M1.12).
Remove the ball bearing (M1.04) from the drive shaft (M1.03).
