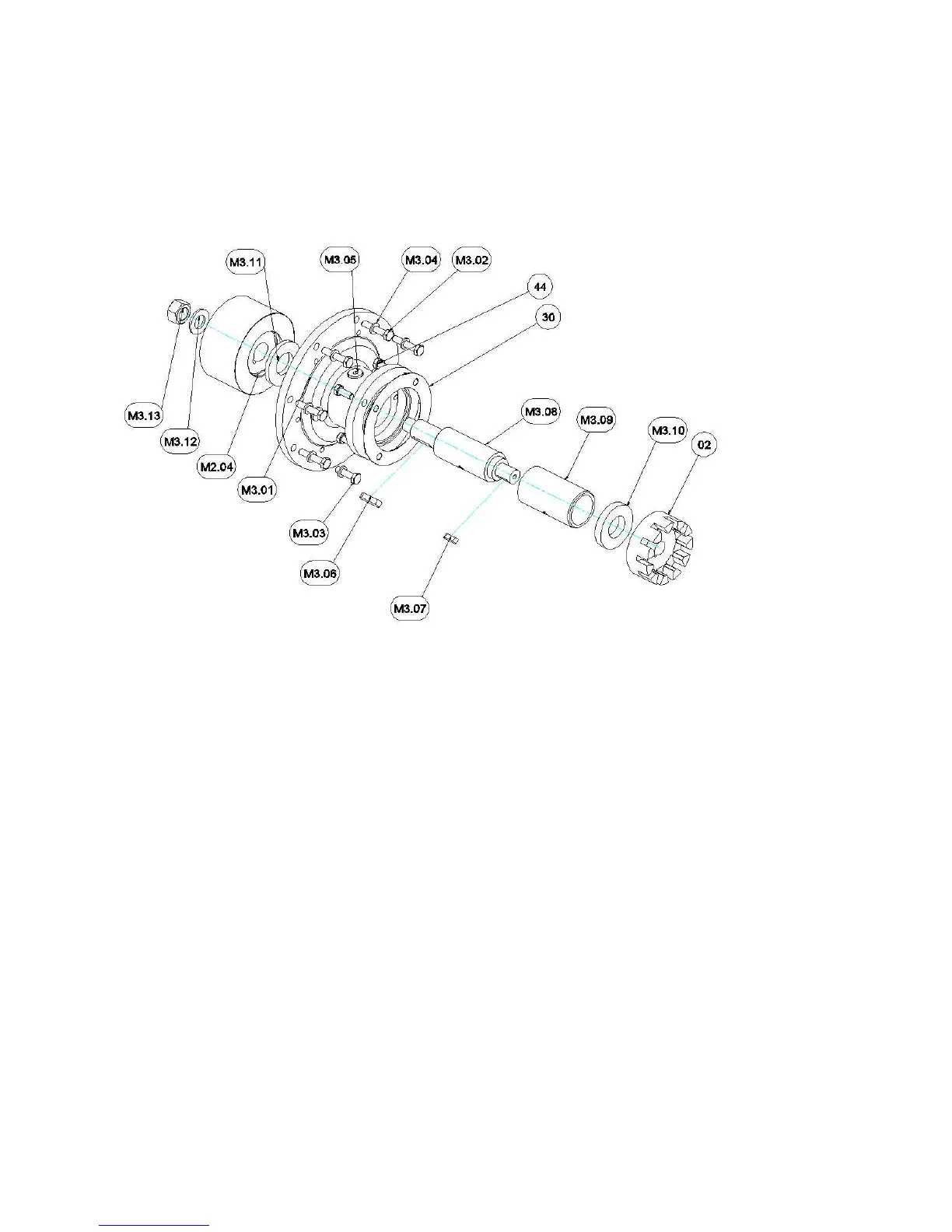

9.4 Disassembly of the plug-in unit
Unscrew the bolts (M3.02) and (M3.03) and pull-off the complete plug-in unit from the bearing
bracket (M1.01).
! On principle, the plug-in unit should only be separated from the external magnet (M2.02) by radial
guidance (restricted guidance). Make sure that the external magnet (M2.02) and the containment
shell (M2.03) do not get in contact. If they get in contact, the external magnet (M2.02) could be
damaged. In such a case pump malfunction cannot be excluded.
