VT190DiamondVue/CrystalVueUser’sGuide150‐180
2.5 Input Video Connections
The VT190 Series provides four industry standard video inputs:
Analog RGB (VGA) with auto detect of Digital Separate Sync, Sync-On-Green, and Composite Sync.
Auto detects from VGA to UXGA, interlaced and non-interlaced video.
DVI-D with auto detect of Digital Separate Sync.
S-Video for 4 wire video
Composite for NTSC, PAL, and SECAM video (interlaced)
Optional BNC Adaptor Cable
A HD15 (VGA)-to-5xBNC adapter cable is available. The functions of the cables are described below.
The R (Red), G (Green), and B (Blue) input connectors for color.
The HS/CS: Separate horizontal/composite sync signal from the video source.
The VS: Separate vertical sync signal from the video source.

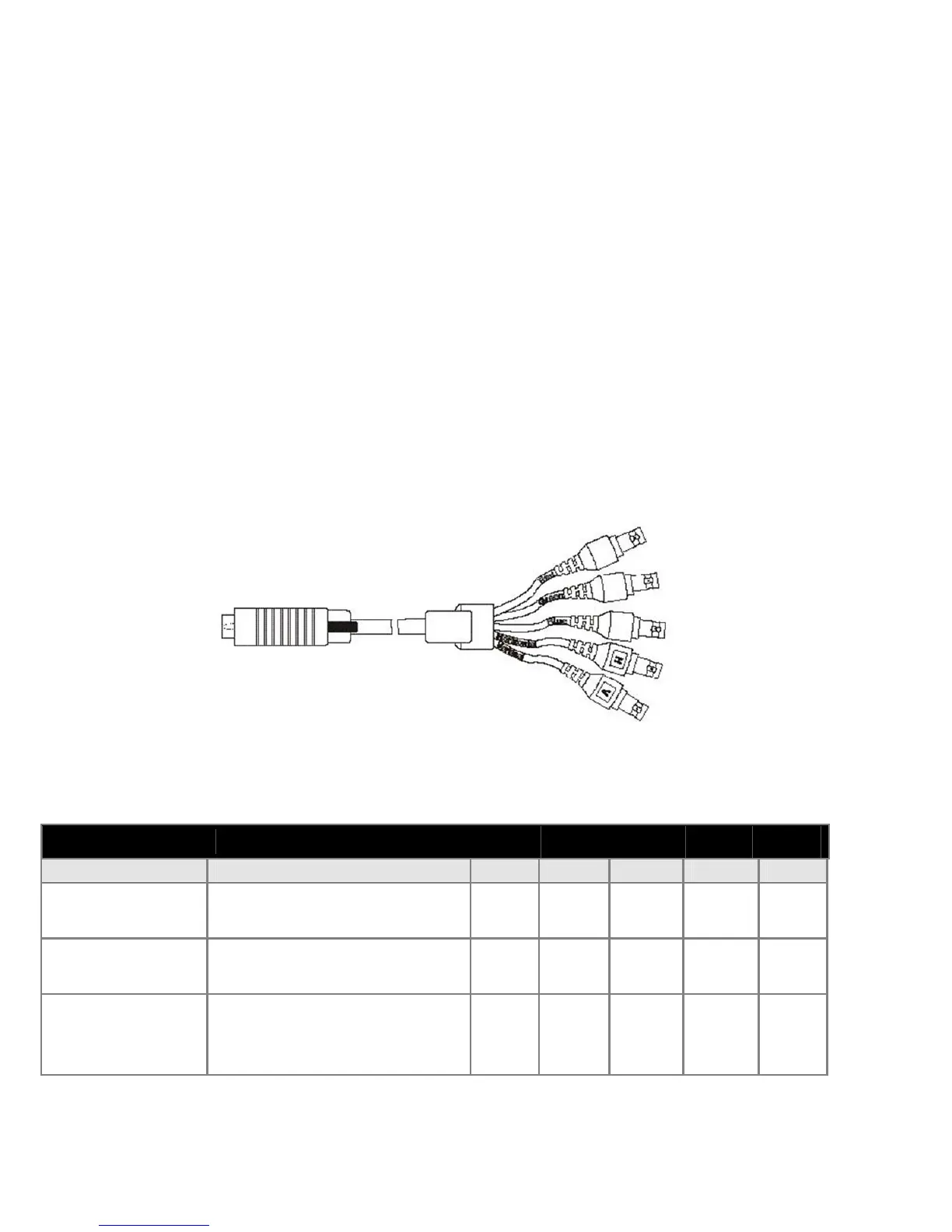

BNC Adapter Cable
This table describes the signal types you can use with the connectors:
BNC Signal Types
BNC Signal Type Description R G B HS/ CS VS
Sync-on-Green Use the three video connectors.
Horizontal and vertical syncs are
supplied on the green video line.
X X X
Composite Sync Use the three video connectors
plus the horizontal sync/ composite
sync input
X X X X
Separate
Horizontal and
Vertical Sync.
Use the three video connectors
plus the horizontal sync/
composite sync and vertical
sync input.
X X X X X
