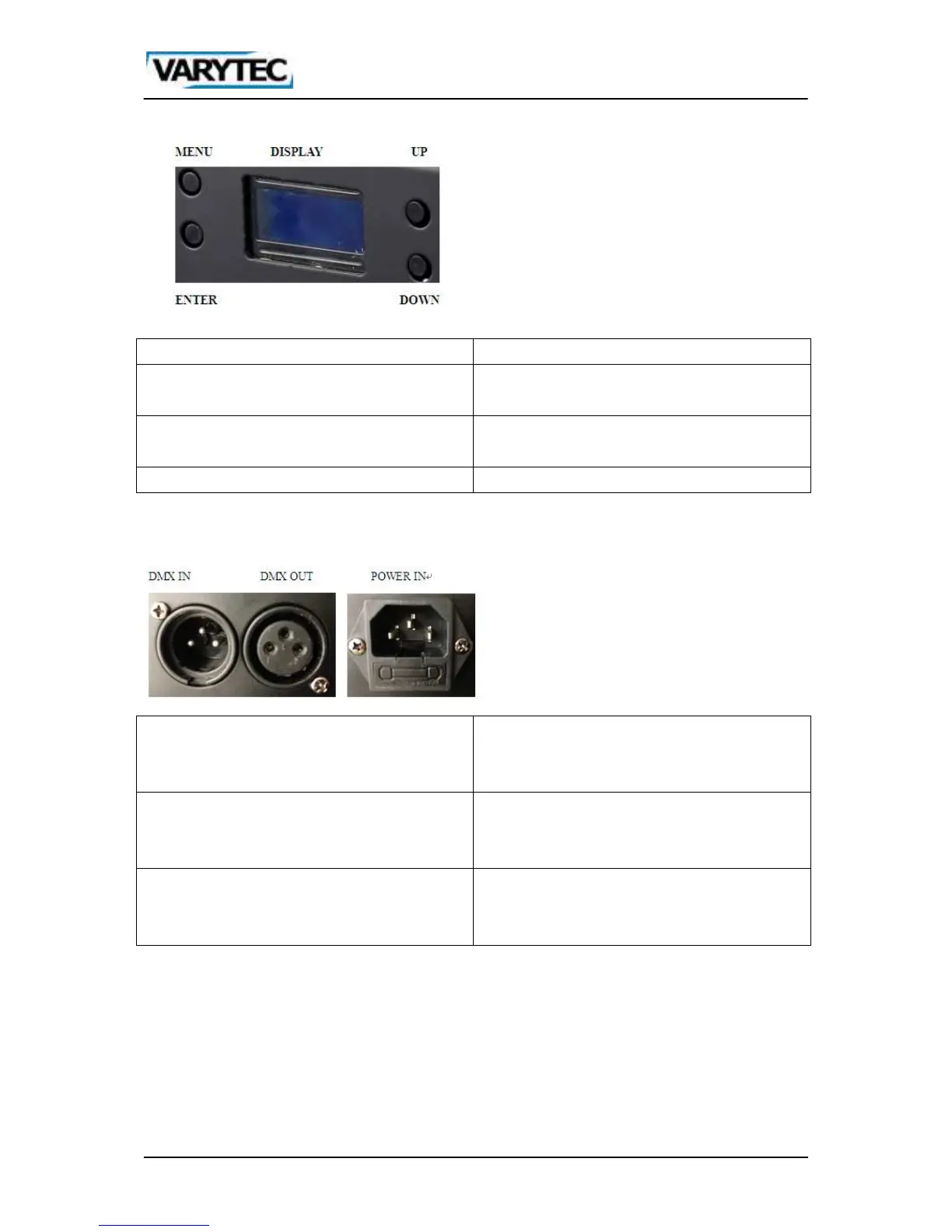

9.2. Button explanation
Function of the buttons:
MENU Changes the function main menu
UP Steps up through the different pages
Or increases the value if you set up numbers.
Down Steps down through the different pages
Or decreases the value if you set up numbers.
ENTER Confirms your changes.
9.3. Wiring
DMX IN Here you can plug your dmx signal cable coming
from your console or master slave mode from
your master unit
DMX OUT From here you can connect and daisy chain the
next unit, make sure you are working according
the DMX512 restrictions!
POWER IN Here you can plug the included power plug cable.
Make sure first to plug the cable into the item and
then into the mains!
