Spare Parts / Retrofit Options‘ part number)
When the PFO battery life expires, PFO battery needs to be exchanged. Production date is specified on label on the rear panel of PM
controller. Life time of NiMH-battery is specified with 20'000 hours if surrounding temperature is not higher than 30°C . A significant
decrease is directly linked with higher temperatures. The following diagram shows the influence on life time at various ambient
temperatures.

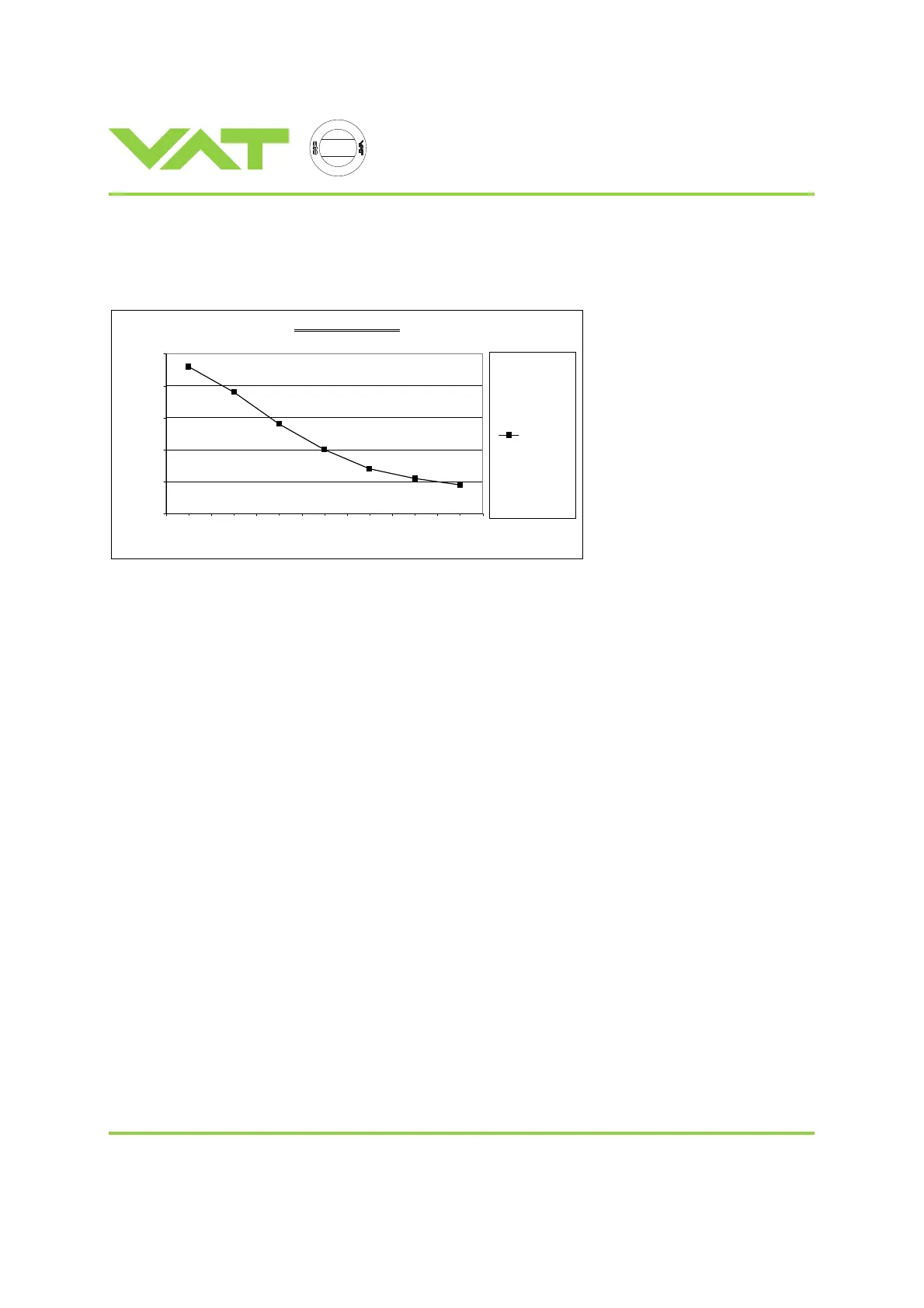

PFO duration of life
0
10
20
30
40
50
20° 25° 30° 35° 40° 45° 50°
Environment temperature [°C]
Exp. of life
[month]
PM-4, PM-5
Procedure:
- Turn off power to PM controller, disconnect power cable and wait for 60 seconds
- Disconnect sensor cable, valve cable and interface cable
- Open bottom and top covers
- Disconnect connector J5 of battery pack from the bottom side
- Remove the battery pack from the top side
- Install new battery pack and plug in connector J5 of battery pack
- Reattach covers
- Attach label with new production date on rear panel
