ISO 9001
EN 29001
Installation, Operating, and Maintenance Instructions
Series 64.1
VAT Vakuumventile AG, CH-9469 Haag, Schweiz
Tel ++41 81 771 61 61 Fax ++41 81 771 48 30 Email reception@vat.ch http://www.vatvalve.com
283681EB
2011-03-18
2/19
1 Intended Use of Product
This product is an adaptive pressure controller for VAT series 64 control valves. The product may only be operated within the ranges
specified below:
1.1 Technical Data
Mains voltage
100 - 240 VAC (±10%), 50/60 Hz
Temperature
0 - 50 °C
Sensor input signal 0 - 10 VDC max.
Sensor power supply + 15 VDC (±5%), 1400 mA max. (total current for sensor 1 and 2)
- 15 VDC (±5%), 1400 mA max. (total current for sensor 1 and 2)
Operation only with VAT series 64 control valve
Additional technical information see chapter ‚9 Engineering Information’
2 Installation
2.1 Content of VAT PM Controller Delivery
Adaptive Pressure Controller PM-4 or PM-5
Plug for mains connection of controller
Plug for interface cable
Plug for cable of pressure sensor 1 (standard) and 2 (option)

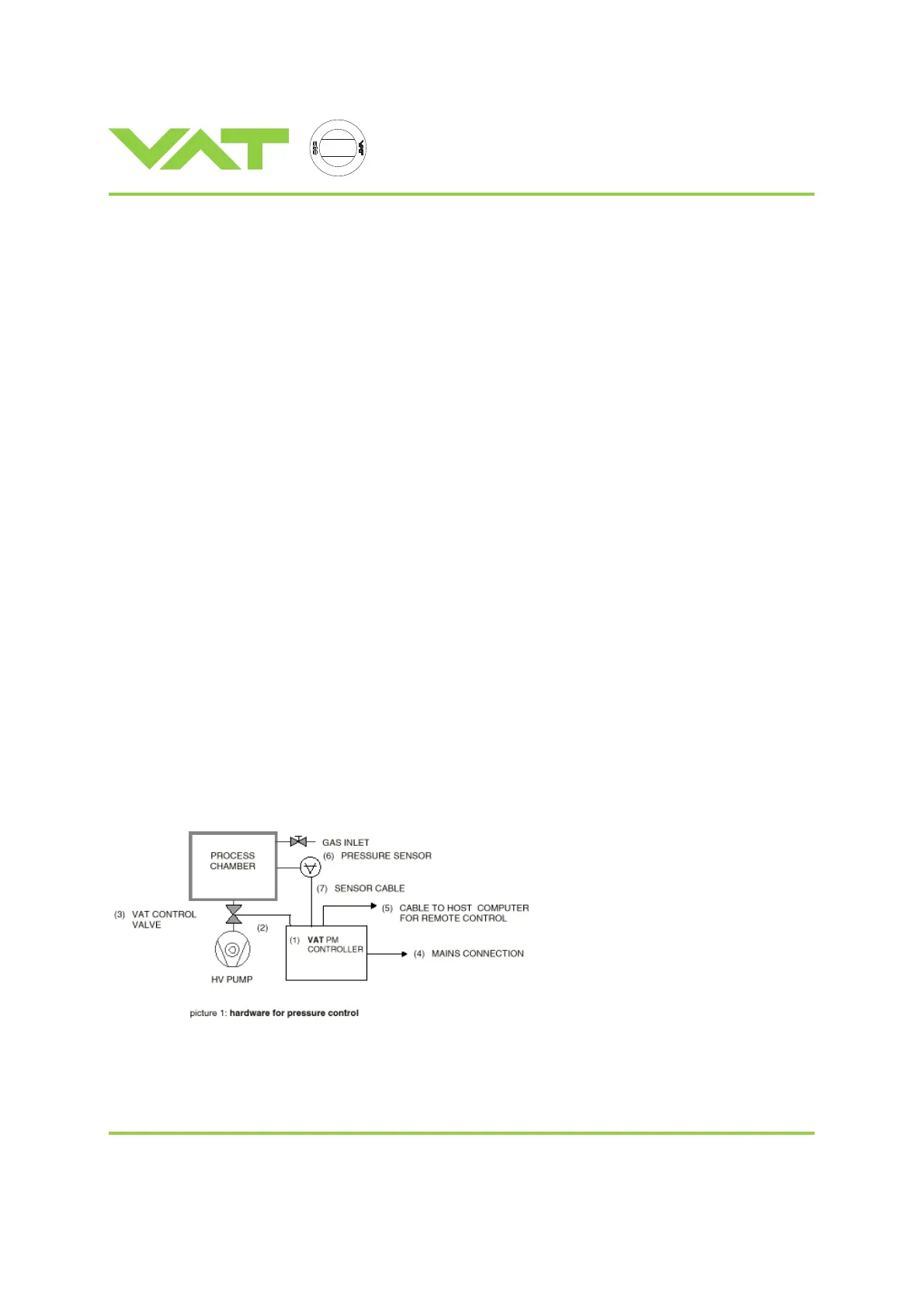

2.2 Hardware Installation
