Pax-i3D Smart(PHT
-30LFO) Installation Manual
60

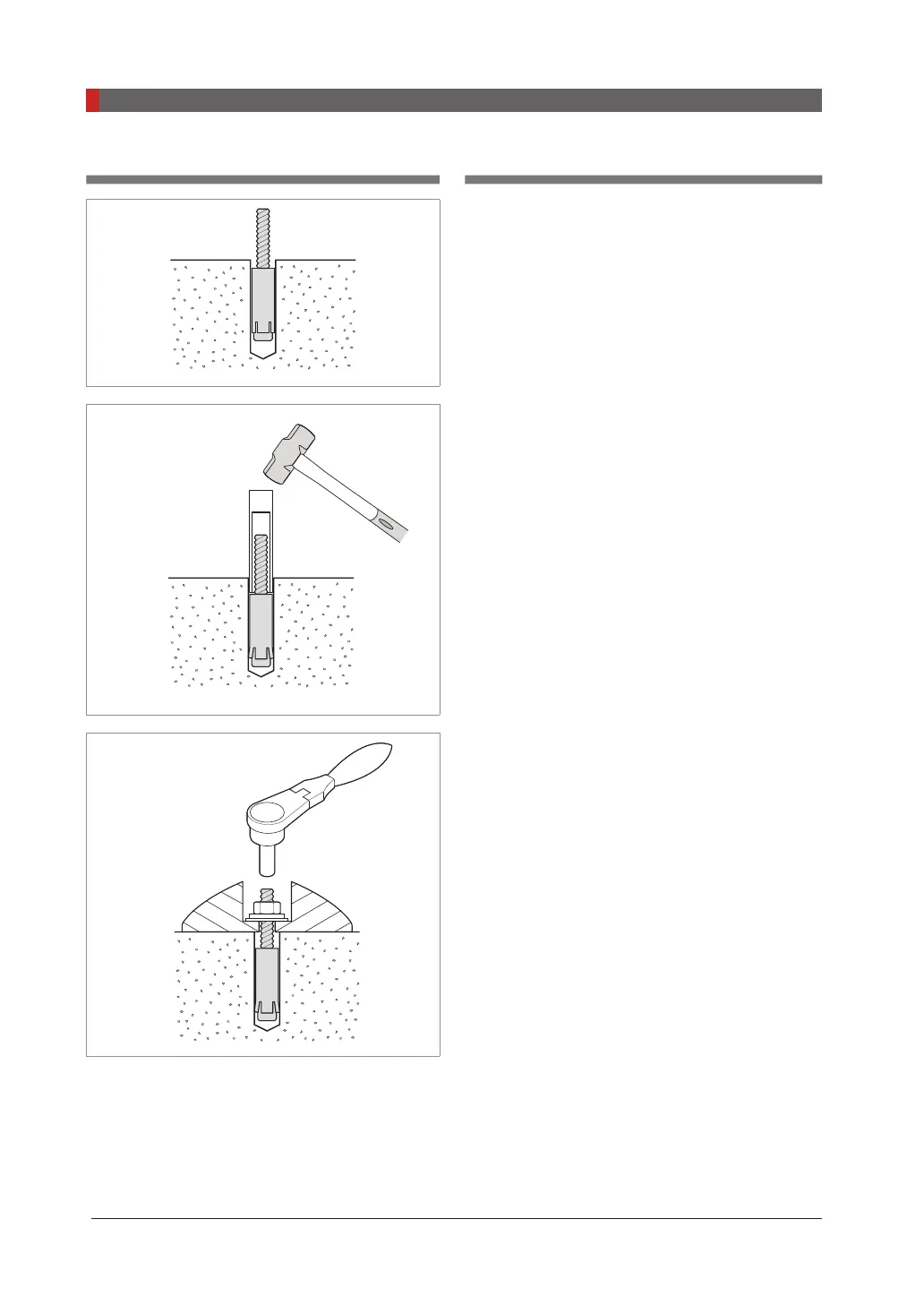

4 Installing the Equipment: Floor Standing (Optional)
4.
Remove nuts and washers, put the anchor
bolts into the holes.
5.
Secure the anchor bolts with the hammer
.
6.
Place the base unit combined equipment on
the proper position, lock the nuts and washers
using ratchet wrench.
