Pax-i3D Smart(PHT
-30LFO) Installation Manual
62

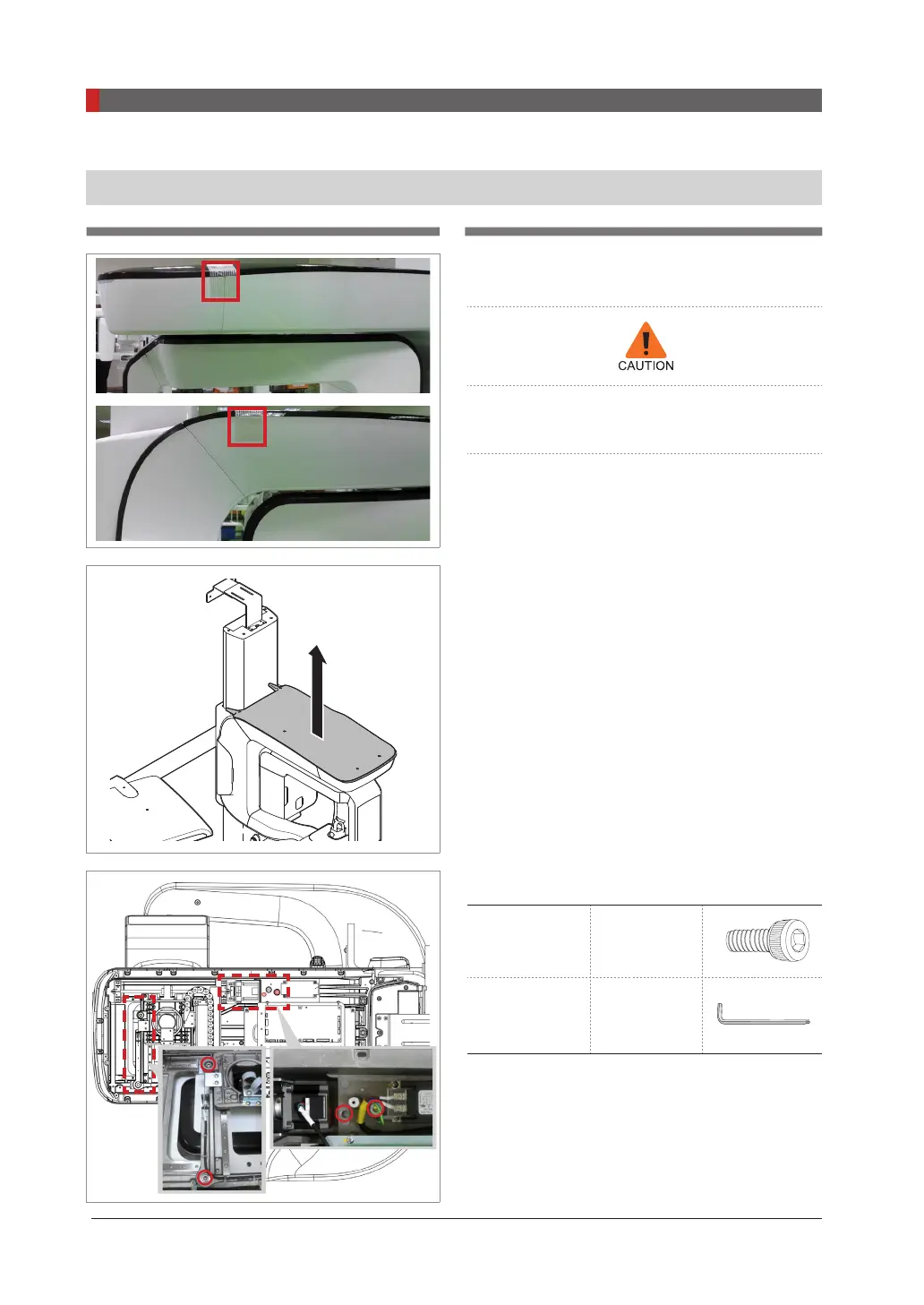

4 Installing the Equipment: Floor Standing (Optional)
4.6
Removing the T
ransportation Safety Bolts
1.
Remove the semi-clear tape on the both
sides
Be careful not to scratch the cover
.
2.
Remove the vertical frame cover
.
3.
Remove four safety bolts.
Wrench bolts
M 8
Allen wrench
6 mm/0.24”
61
63
Table of Contents
Table of Contents
13
Introduction
15
Manufacturer's Liability
16
Customer's Responsibility
16
Marks & Symbols
17
Standards and Regulations
18
Choosing an Installation Site
19
Room Requirements
20
Specifications for Electrical Installation
23
Electrical Requirements
23
Temperature and Humidity
25
Exposure Switch Installation Options
25
Installation Versions
27
Installing the Warning Lamp and Door Interlock Switch
28
Installing the Emergency Stop Switch
28
Before Installing the System
29
Required Tools
30
Checking the Shockwatch and Tiltwatch Indicators
32
Unpacking the Boxes
33
Checking the Parts
41
Installing the Equipment: Floor Standing (Optional)
47
Assembling the Base and Main Units
48
Installing the CEPH Unit (Optional)
51
Connecting the Cables to the Equipment
54
Installing the Wall and Column Brackets
55
Fixing the Base (Optional)
59
Removing the Transportation Safety Bolts
62
Leveling the Equipment
64
Tightening the Bolts Firmly
66
Completing Miscellaneous Works
67
Assembling Various Covers
68
Assembling Temple and Chin Supports
70
Installing the Switch Holders
71
Setting up PC
73
Direct Connection Diagram
74
The Recommended PC Requirements
75
Installing the Internal Peripherals
78
Connecting the Cables to PC
80
Setting up Pc's Environment Variables
83
Before Beginning
84
Checking PC BIOS Settings
84
Turning the Firewall off
85
Setting up the Power Mangement Options
87
Turning off the User Account Control
89
Setting Folder Exclusions with Anti-Virus Software
91
Installing Software
93
Before Beginning
94
Software Installation Flow
95
Installing Image Viewer Program
95
Installing the Installshield
96
Setting up the User-Specific Information
106
When Easydent4 Is Installed
106
When Ezdent -I Is Installed
113
Configuring the Parameters
116
Setting up the IP Address for the os CEPH Sensor (Optional)
123
Acquiring a Test Image
127
Aligning the Collimator
128
PANO Collimator Alignment
128
CBCT Collimator Alignment
132
Acquiring the Test Image
136
Technical Specifications
137
Appendix
143
Installing the Warning Lamp and Door Interlock Switch
144
Installing the Emergency Switch
147
Limiting the Column Height
148
Connecting the Third-Party Exposure Switch(Optional)
152
Checking PC BIOS Settings
153
Installation Checklist
154
