Vaughan Junior - Optional Effluent Nozzle; Effluent Nozzle Specifications and Use

Euent Nozzle
The euent nozzle is made up of a camlock tting and a rubber nozzle so designed to be able
to ex as larger solids are passed through. On the occasion that it does block, turn the pump o,
undo the camlock and clear the blockage. NOTE: If both nozzles are blocked, be careful of built up
pressure when removing the camlock tting.
Standard lrrigator
The camlock tting screws directly onto the end of the 45° arm.
VCI lrrigators
Two 40 x 32mm reducing nipples (Part No. 730711) are required to t both nozzles to the 45° arms.
QUAD lrrigator
Four 40 x 32mm reducing nipples (Part No. 730711) are required to t the four nozzles to the 45°
arms.

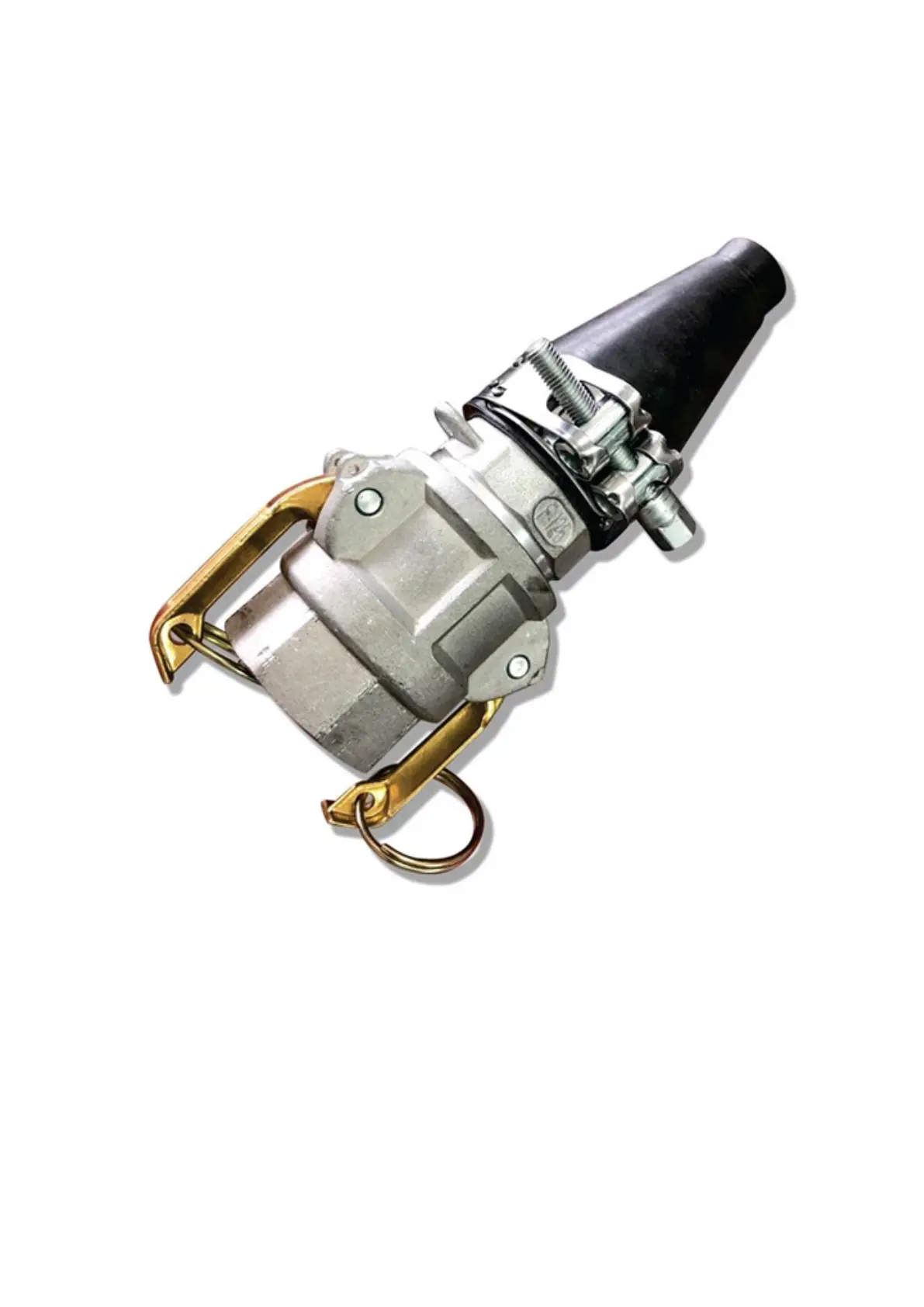

Euent Nozzle
(Optional Extra - Available for Standard, VCI & QUAD)
