Quick Release & Valve
The Quick Release mechanism stops the irrigator and the water supply. It does not turn the pump
o which must be done via a pressure switch, no ow switch or similar.
To set the Quick Release Mechanism
1. Open the valve and hold in position.
2. Place the D shackle under the hook on Quick Release mechanism.
3. Push the hook down and toward the front of the irrigator until it ‘clicks’ into place.
4. Quick Release Shut O is now set.
Quick Release & Shut O
Valve
(Optional Extra - Available for all Models)

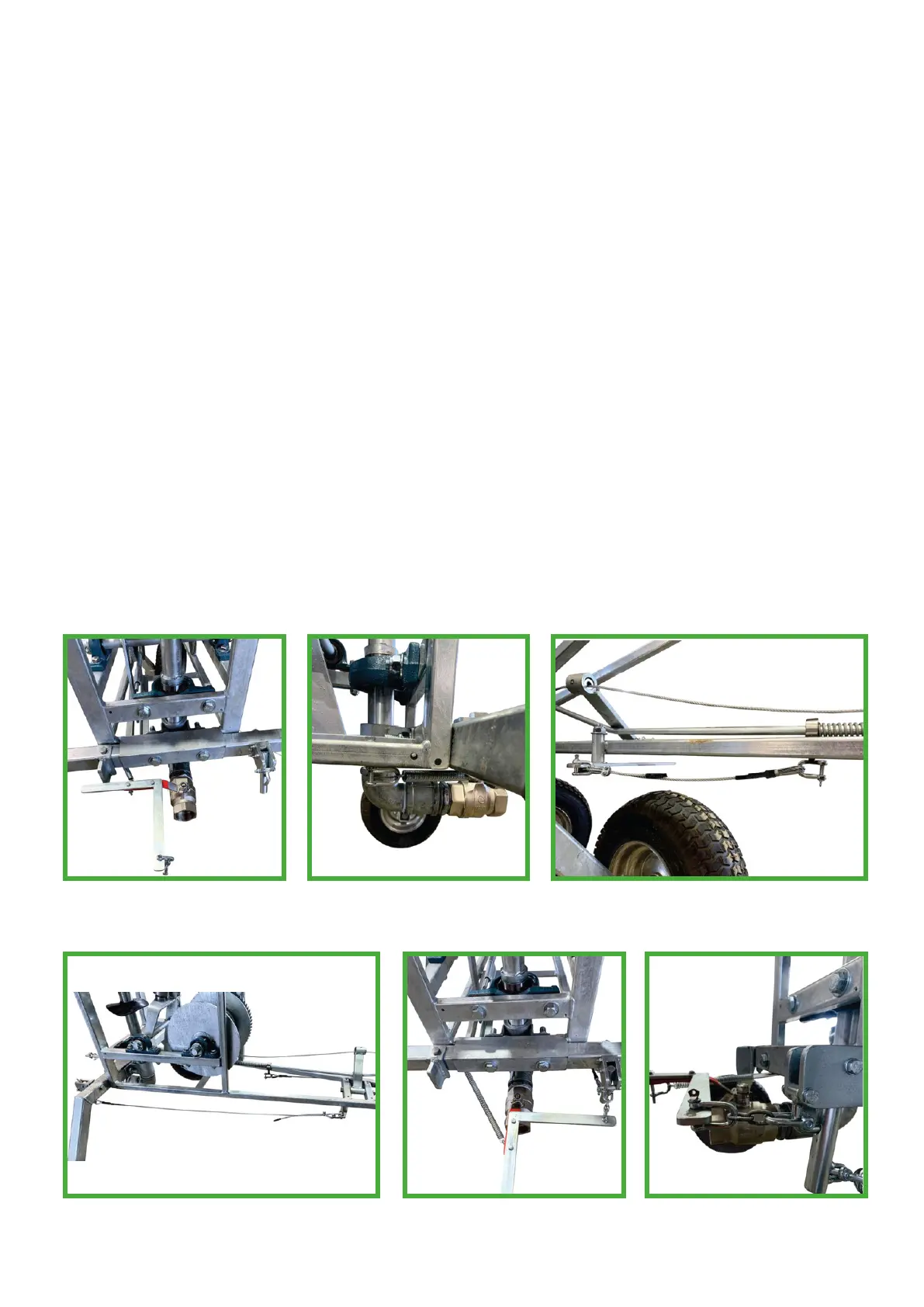

Pic 1: General arrangement, valve is in the
shut position.
Pic 5: Shows mechanism ‘loaded’.
Valve is in the open position.
Pic 2: Connection of spring to the frame.
D shackle is screwed on to an M6 bolt.
Pic 6: Handle locked into quick release
mechanism.
Pic 3: Connection between brake arm and actuator.
Pic 4: Connection between actuator and quick release
mechanism.
