THERMOSTAT DIAGRAM 6

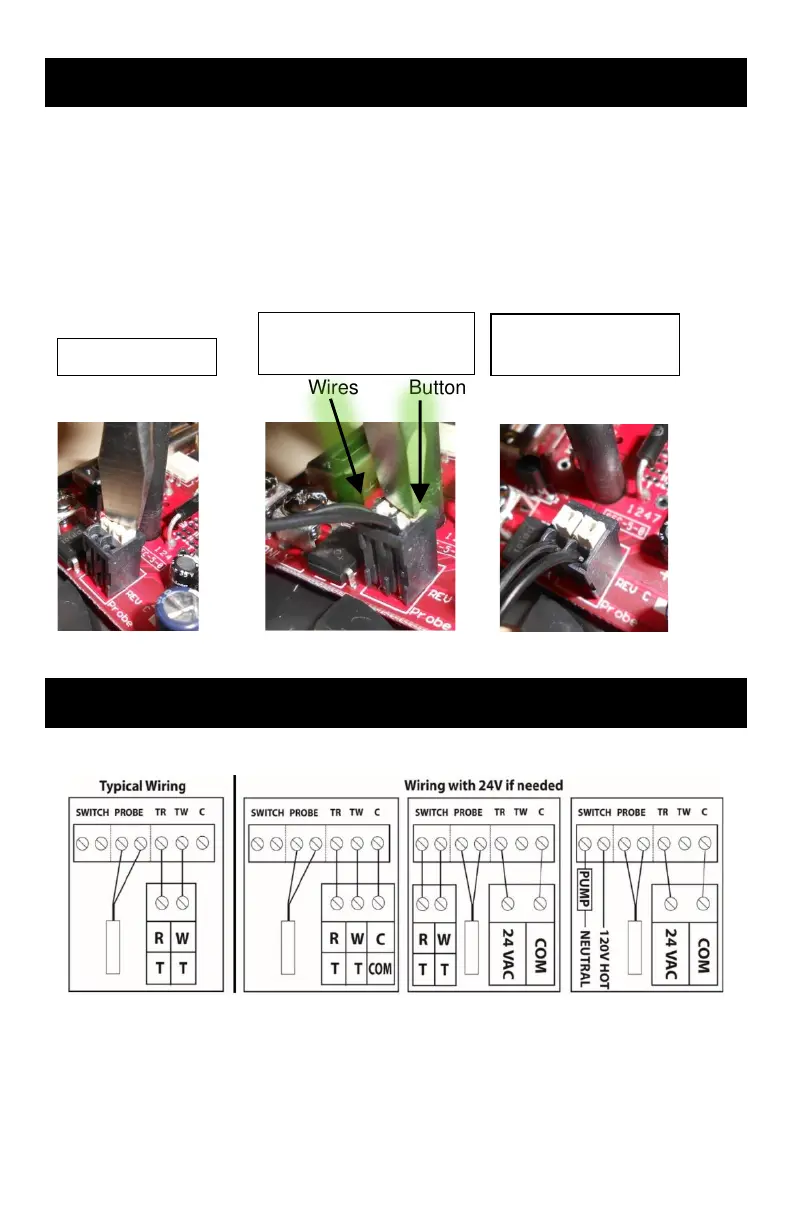

TPI PROBE WIRE INSTALLATION
Inserting the probe wires into the press release connector
4.A – Position tool on top of white buttons
4.B – Push down on buttons and push wires down into holes in top of
connector (This can also be done one side at a time)
4.C – Tug on each wire to make sure they are secure
Wires Buttons
THERMOSTAT DIAGRAM 7
ETC102 WIRING
For TPI Thermostats, and switch contacts on ETC102, 24V Power is
required.
