20

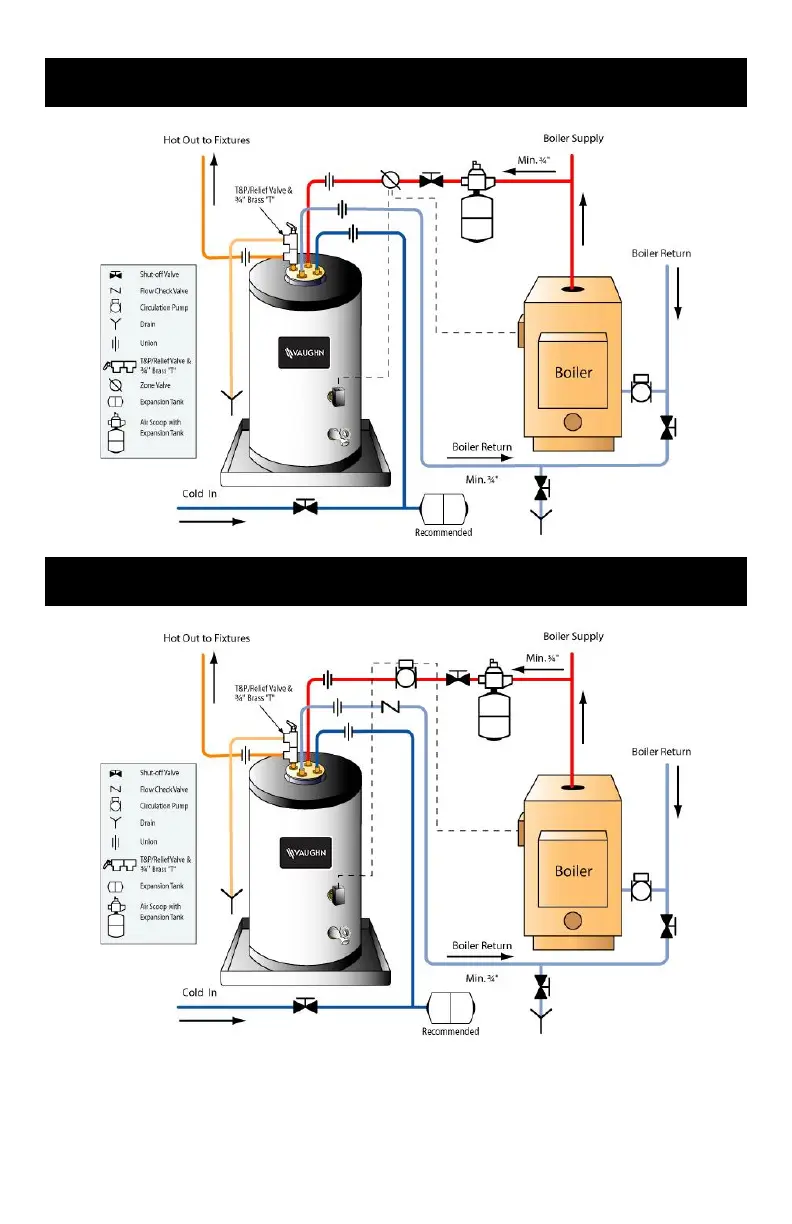

INSTALLATION DIAGRAM 1
Installation Diagram Using Zone Valves
INSTALLATION DIAGRAM 2
Installation Diagram Using Separate Circulator
Note: FD models have 1 inch HX fittings and 1-1/2 inch hot and cold fittings.
