68 Storage

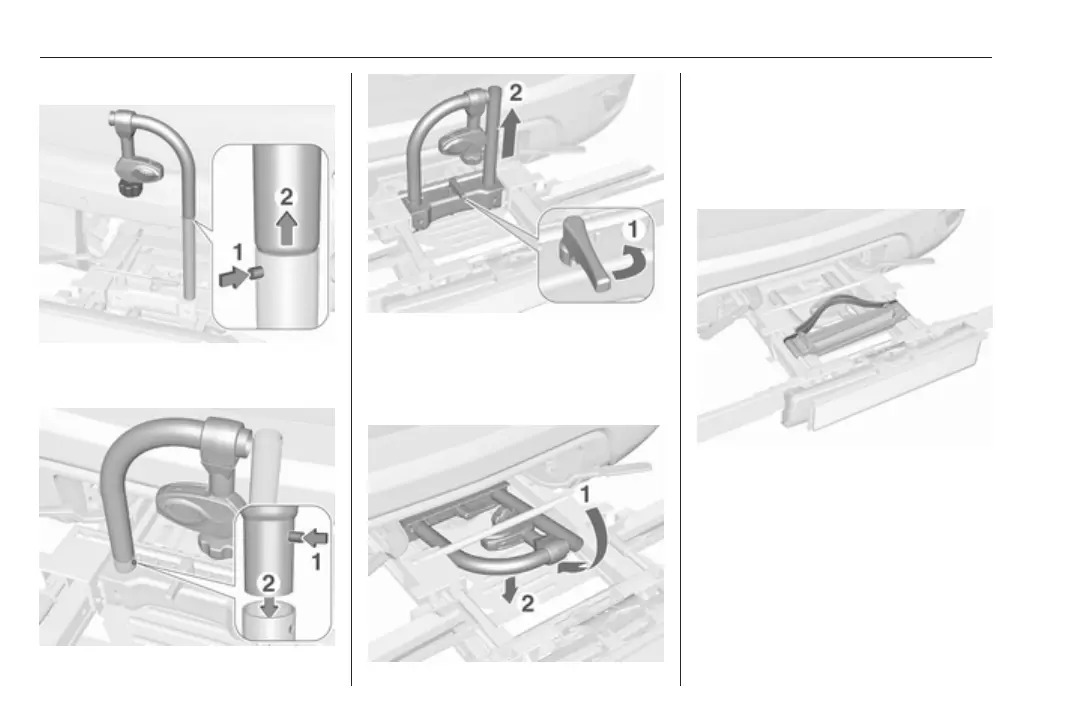

Disassembling the bicycle rack
Press button (1) and remove upper
part of rack (2).
Press button (1) and reinstall rack (2).
Arrange mounting brackets as shown
in the illustration.
Swivel handle (1) sideways to
disengage and lift the rack (2).
Fold the rack backwards, then push
forwards until it stops (1).
Press the rack down at the rear (2).
Fold in wheel recess
Fold in wheel recess. Fasten strap.
Stow the strap retainers accurately.
