Storage 69

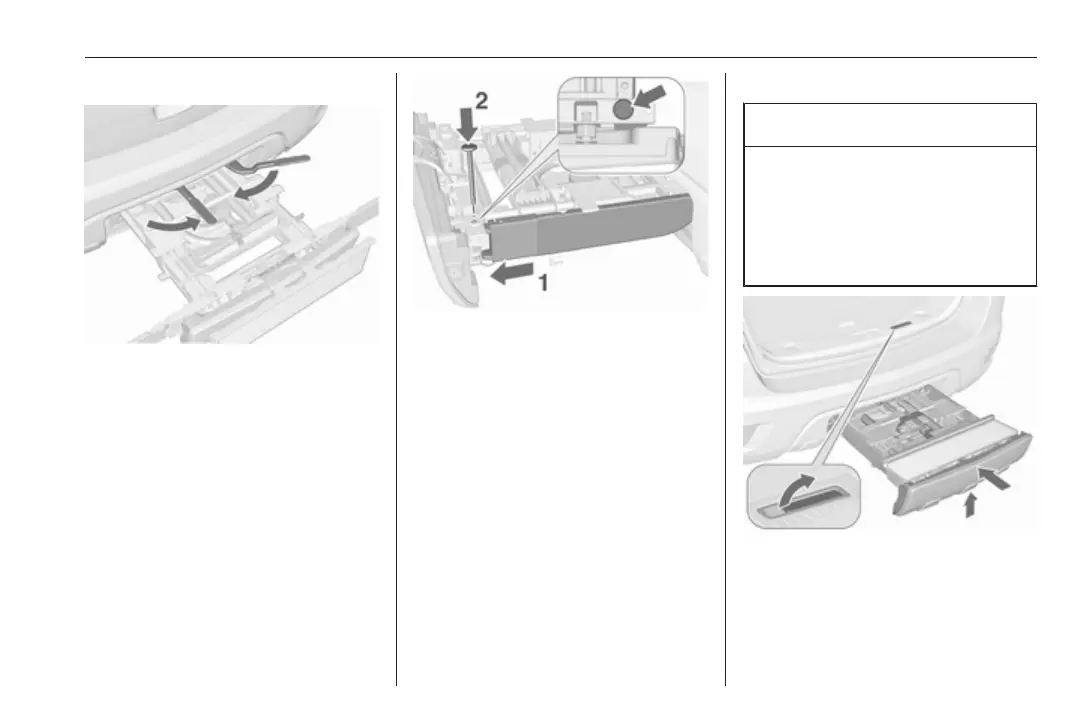

Unlock the rear carrier system
Swivel both clamping levers inwards
as far as they will go. Fasten strap.
Fold in tail lights
Remove both pins. Pull tail lights out
of the retainer and put them in the
position to be stored in.
Push the tail lights into the retainer
(1). Insert pins into the designated
holes of the retainer and the tail lights
(2).
Notice
Check that the tail lights of the
vehicle are working properly.
Fold in number plate holder
Lift the number plate holder and fold
it forwards.
Retracting the rear carrier system
Caution
Ensure that all foldable parts, e.g.
wheel recesses and mounting
brackets, are stowed correctly.
Otherwise the rear carrier system
may get damaged when trying to
retract it.
Push the release lever up and hold it.
Lift the system slightly and push it into
the bumper until it engages.
Release lever must return to original
position.
