www.vax.co.uk
4
assembly

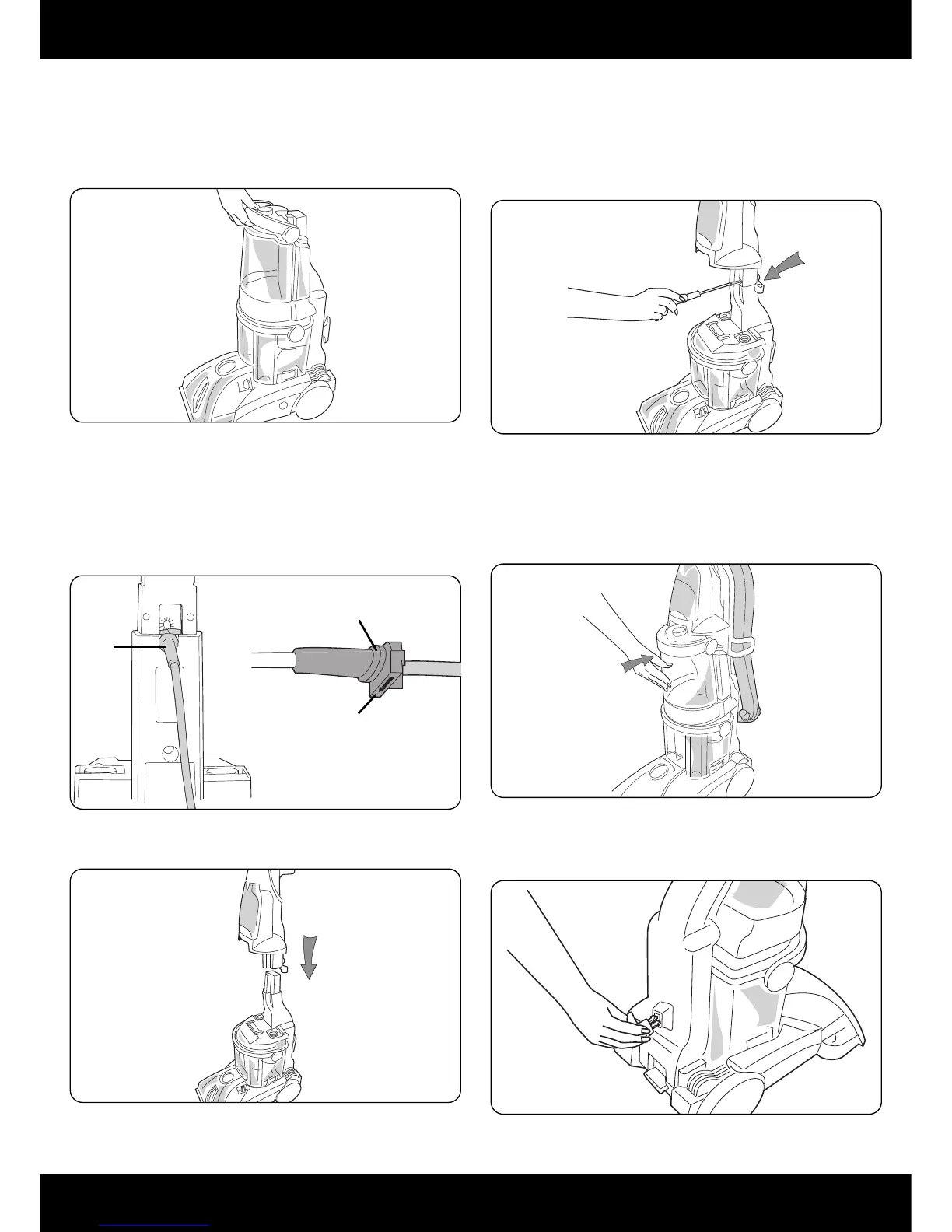

3. Assembly
Attach Upper Handle
Remove clean water tank (upper tank) from cleaner
(Fig.3/1).
NOTE: If the cord protector (A) on back of handle
should become dislodged during unpacking, make sure
it is repositioned properly before continuing with
assembly of your cleaner.
With the arrow (B) on the cord protector pointing down,
press groove (C) in the cord protector into slot in the lower
handle (Fig.3/2).
With cord hook to back of cleaner, push upper handle down
onto lower handle (Fig.3/3).
Push bolts into holes on front of handle. If bolts will not go
through hole easily, handle is not pushed completely down.
Place nuts in recessed areas on back of the handle. Hold
each nut in place while tightening each bolt securely (from
the front of the handle) with a Phillips screw driver
(Fig.3/4).
NOTE: Only two nuts are needed on this model. The
extra nut is not required but has been provided for
your convenience.
Replace clean water tank (upper tank) by positioning
bottom first. Press tank into place (Fig.3/5)
Attach Hose/Cord Hook
Insert tabs on hook into slots on back of cleaner. Snap
hook onto cleaner (Fig.3/6).
Fig.3/1
Fig.3/4
Fig.3/5
Fig.3/6
Fig.3/3
Fig.3/2
A
B
C
