VBOX 3i - Page 111

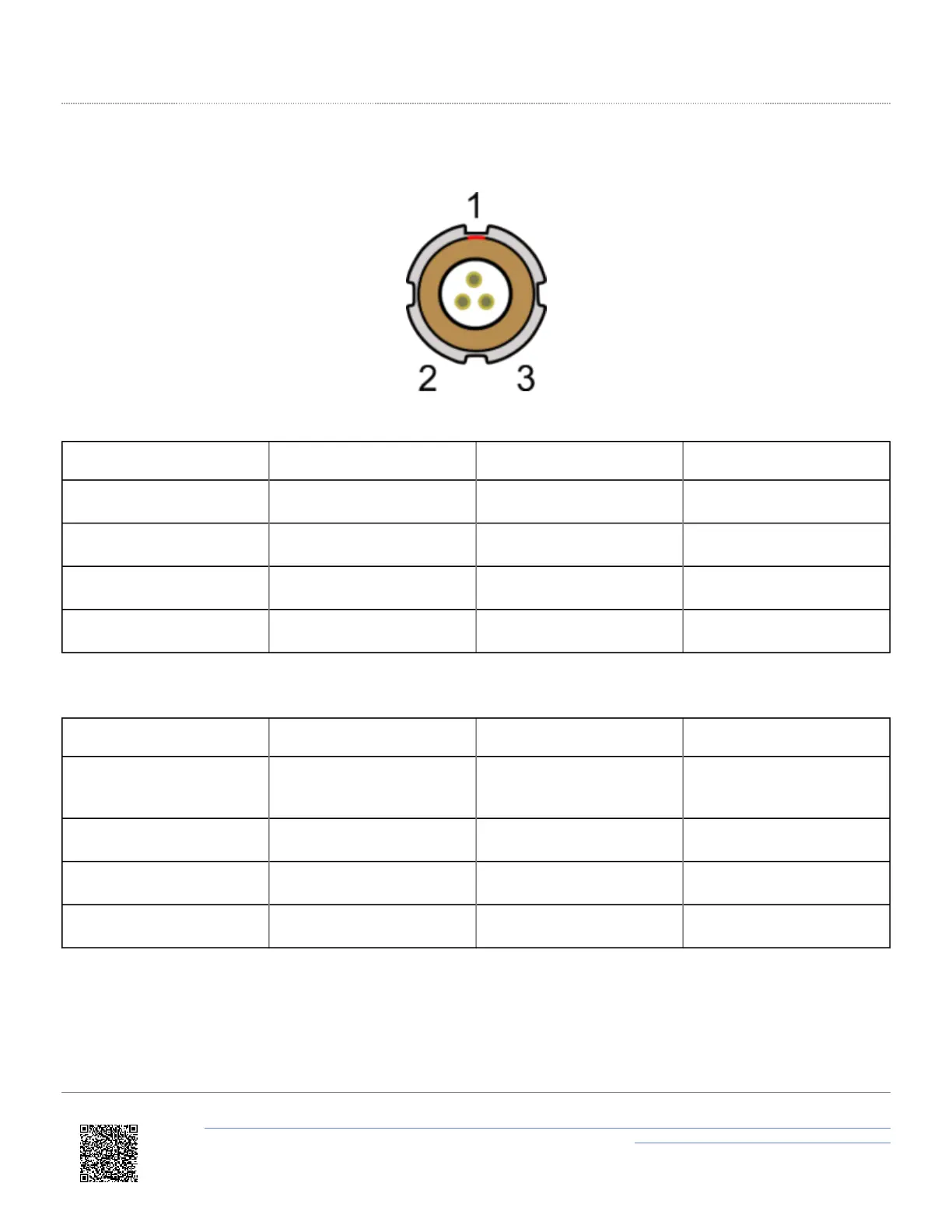

Connector 2 / 3 - AD 1 / AD 2 (Lemo 3 PIN)
One Analogue and One Digital Output Each
V1/V2/V3
PIN I/O Function Range
1 O Analogue Out 1 / 2 0 – 5 V
2 O Digital Out 1 / 2 0 – 5 V
3 O Analogue Ground
Shell O Digital Ground
V4/V5
PIN I/O Function Range
1 O
Isolated Analogue Out 1 /
2
0 – 5 V
2 O Digital Out 1 / 2 0 – 5 V
3 O Isolated Analogue Ground
Shell O Digital Ground
