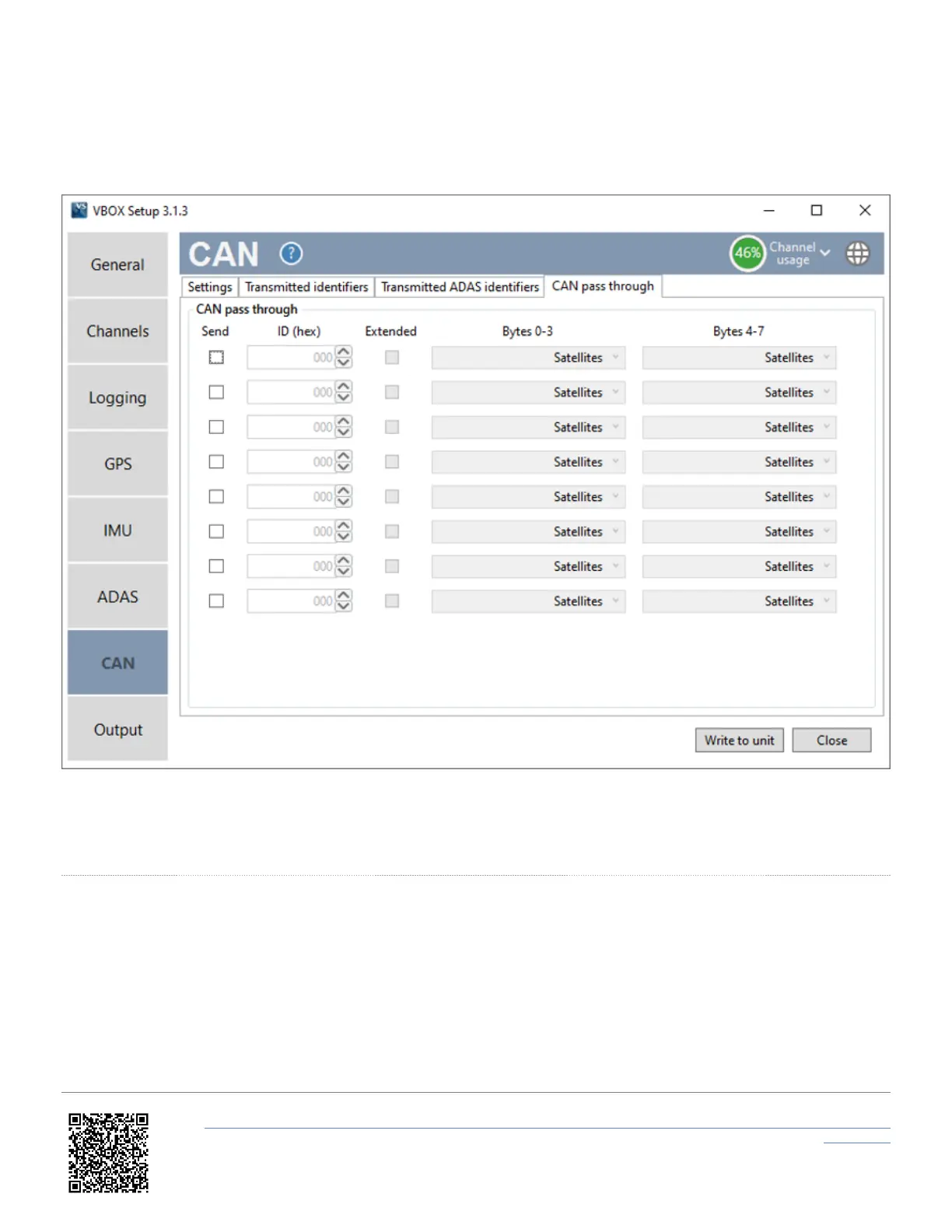

Note: If you are loading VB3i configuration settings from a previously saved .RCF file and external modules were
connected during the save, selected CAN pass through channels may not be reloaded correctly. Please check and
directly configure the channels through VBOX Setup.
Note: These output CAN channels will be in a 32 bit IEEE float format. 29 bit extended identifiers optional.
VB3i CANVEL
If an input channel is given the name 'CANVEL', then the VBOX will translate the data of this channel directly through to
the GPS speed channel under the following criteria.
• IMU integration is not enabled
• The VBOX cannot calculate speed, i.e. no satellite signal (complete satellite drop out)
The VBOX will scale the input channel to the default speed output format of km/h according to what units have been
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_3i_Range/VBOX_3i_User_Guide_(All_Variants)/08_-
_VB3i_CAN
37
