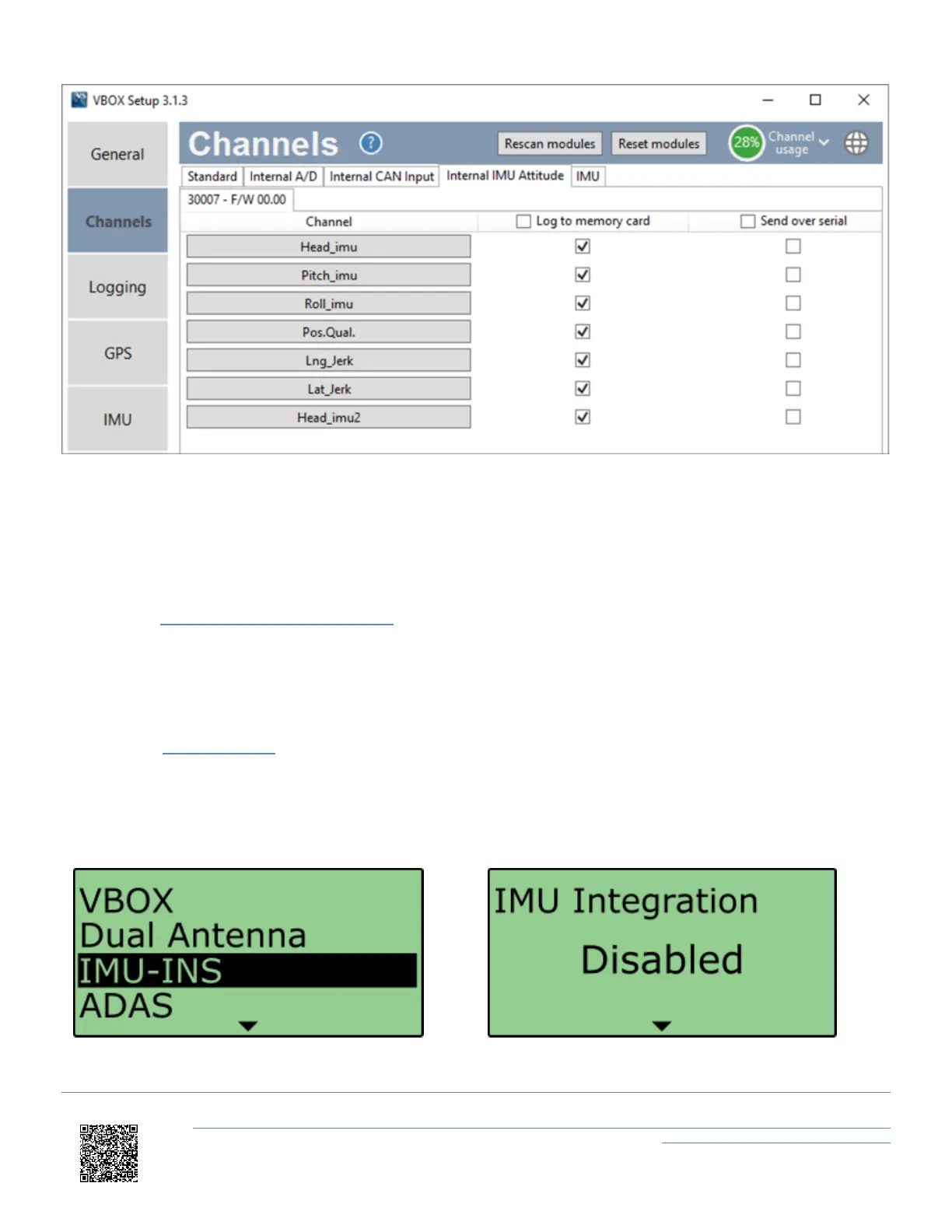

9. Serial IMU channels (x accel, y accel, z accel, temp, pitch rate, roll rate and yaw rate) will also automatically
be set to log. If Serial IMU data is required to be displayed as a Live Serial data display then the user must tick
the channels for 'Send over serial'.
10. Select 'Write to unit' to upload settings to VB3i.
11. Perform initialisation and full calibration procedure before commencing testing.
VBOX Manager
1. Ensure IMU04 is connected via RLCAB119, and the VBOX 3i is powered on.
2. Connect VBOX Manager to the VBOX.
3. Enter the 'SETUP' menu of VBOX Manager.
4. Select 'IMU-INS' and then click on the 'IMU Integration' menu.
5. Scroll to 'Enable' and select. Once the 'OK' confirmation screen has cleared, 'Enabled' will be displayed.
