VDG TM100B25 - Single Phase 220 Volt Wiring; Three Phase with Brake (RTM) Wiring

18 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

6

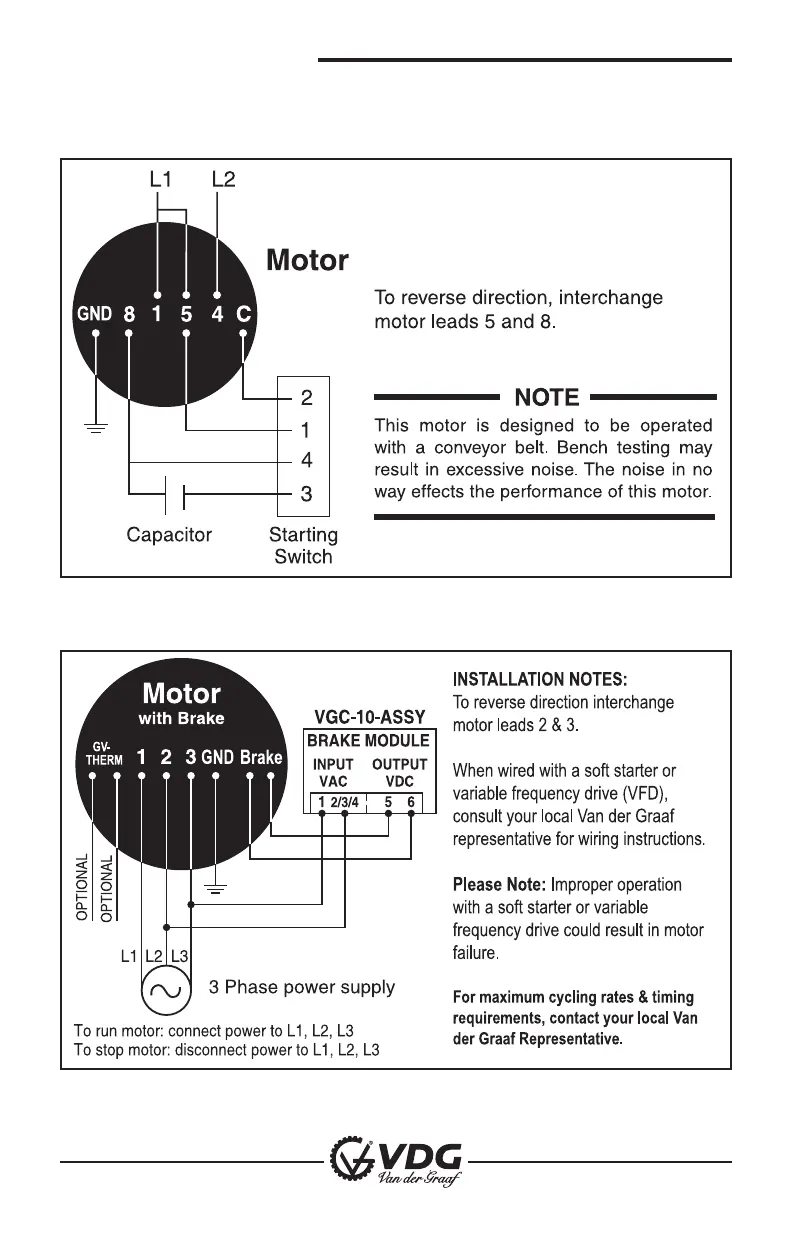

Connection Diagrams

SINGLE PHASE (220 VOLTS)

THREE PHASE WITH BRAKE (RTM)

329 (12/2003)

330 (04/2006)
