Display of road obstructions
In the status line
In the top right status line, the system displays whether there are any road
obstructions on the planned route.
T red: . . . . . . . . Road obstructions on the planned route that would cause a
severe delay.
T green: . . . . . . Less than 50 km to the road obstruction on the planned route. It
is possible to plan a detour using the “Local detour” function
(available only with dynamic route planning deactivated).
T orange: . . . . . Accepted or avoided traffic jams on the original route
(with dynamic route planning activated).
In the map display
If traffic information is available, the system will show the positions of accidents or
stationary traffic on the map.

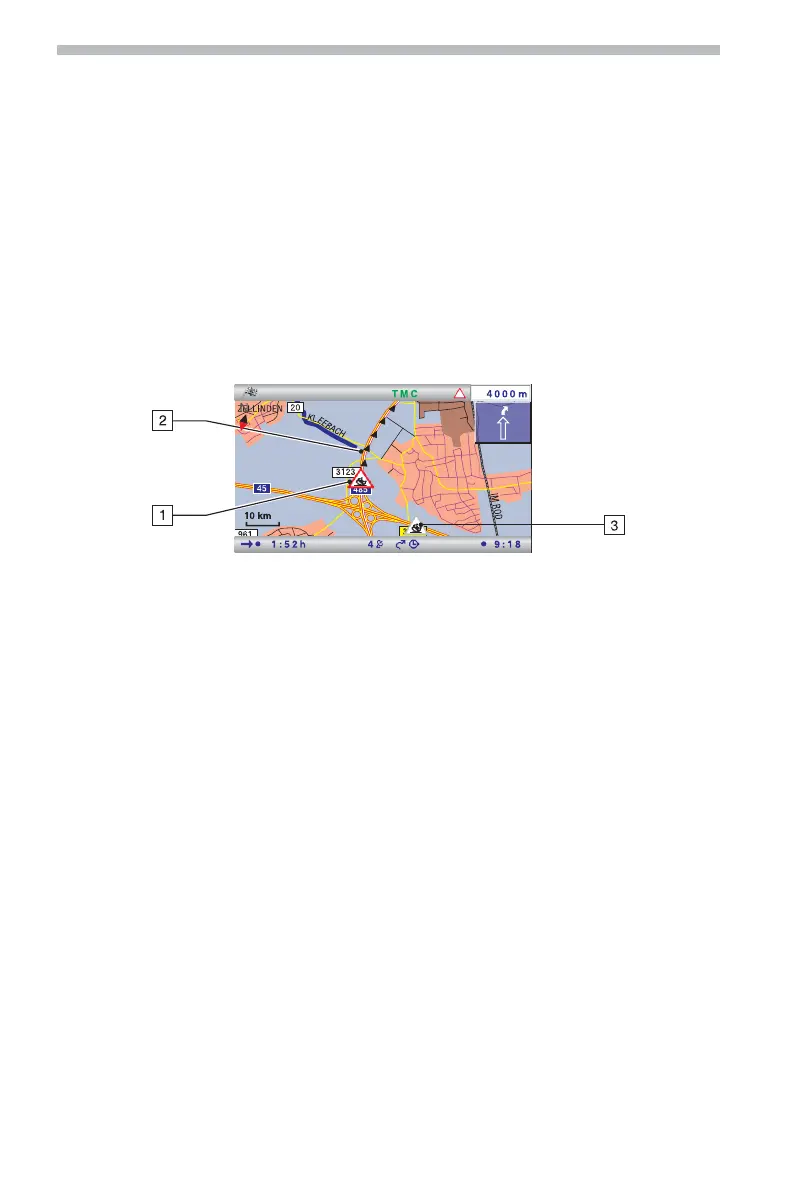

1 Obstructions on the route (with a red border).
2 Affected section of route.
3 Symbols with a grey or orange border are not on the planned route and are not
relevant to the guidance.
The system only displays TMC messages which you have activated under “Message
selection” in the “Info” or “Settings” menu.
TMC symbols
The TMC symbols are displayed differently depending on the scale of the map:
Map scales of over 10 km: The traffic obstructions are displayed as triangles with a
directional arrow. The arrow indicates the travel direction of the road obstruction.
Map scales of 10 km or less: The symbol indicates the type of traffic obstruction (e.g.
accident, roadblock). The road section affected is marked with arrows.
See the appendix for an overview of the TMC symbols.
Navigation
26
