LVP615U 使用说明
31
6.1.2 Set output image parameters
LED screen real resolution can be arbitrary. So we need set
LVP615U to output the same image as the led screen. Then the LED
screen can display whole image.
（0，0）
Out hori start_LL
Out_hori_width
Our vert_start
Out vert height
LED screen
LVP615U output resolution = 1920×1080
LVP615U out image area
1920
1080

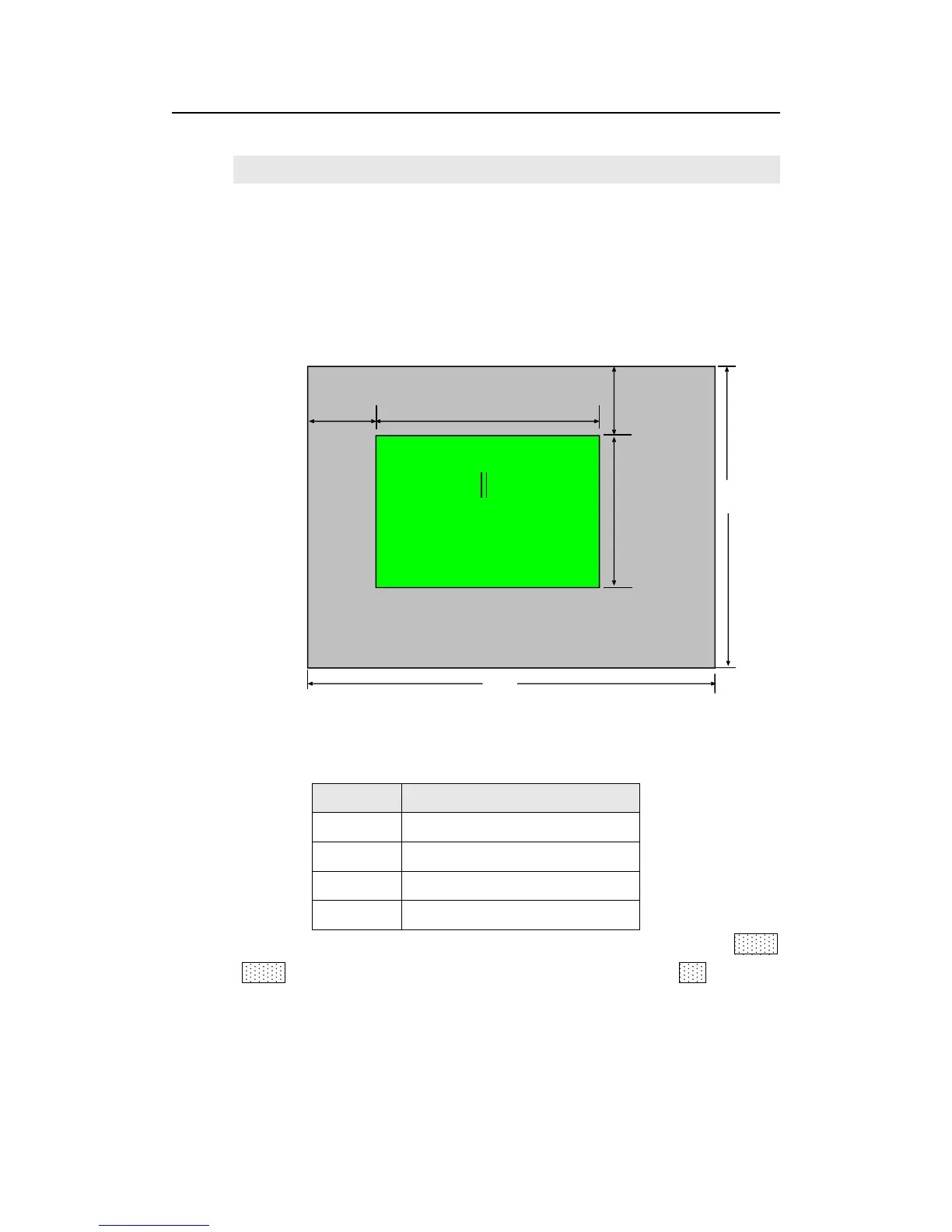

As shown in the above picture: the size and location of output
image of LVP615U can be defined in 4 parameters:
Item NO.
Item name
1.2
Out_hori_width
1.3
Out_vert_height
1.4
Out_hori_start
1.5
Out_vert_start
Note：current set parameters can be changed by rotating knob.
knob rotating speed can decide the step value. Press“OK”button to
save the set parameters.
