LVP615U 使用说明
47
mode button (M1, M2 or M3) to select a mode to save parameters, press ↓ to
select parameter option needed to adjust. For example “D.1 Main Width”,
rotate knob to change parameter, press OK button to save.

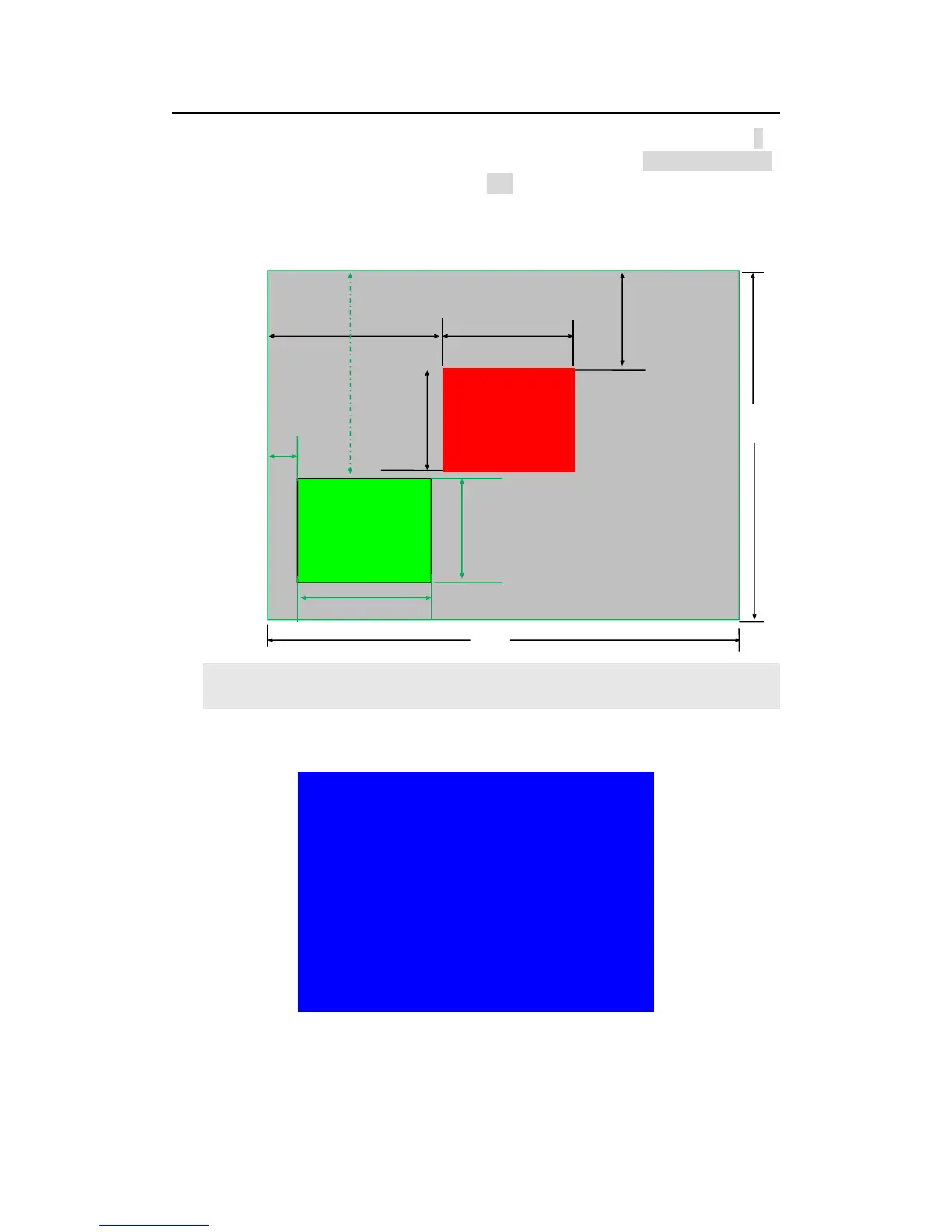

（0，0）
PIP H_start
PIP Width
PIP V_Start
PIP height
Main out image
LVP615U output resolution = 1920
×
1080
1920
1080
Pip out image
Main V_start
Main height
Main width
main H_start
6.10 Mosaic setting
E.Mosaic（Video Wall App）
--------------------------------------
E.1 LED Total Width 3840
E.2 LED Total Height 2160
E.3 Unit Width 1920
E.4 Unit Height 1080
E.5 Unit H_Start 0
E.6 Unit V_Start 0
E.7 Sync.Mosaic ON
E.8 Auto Calculation OK To Apply
