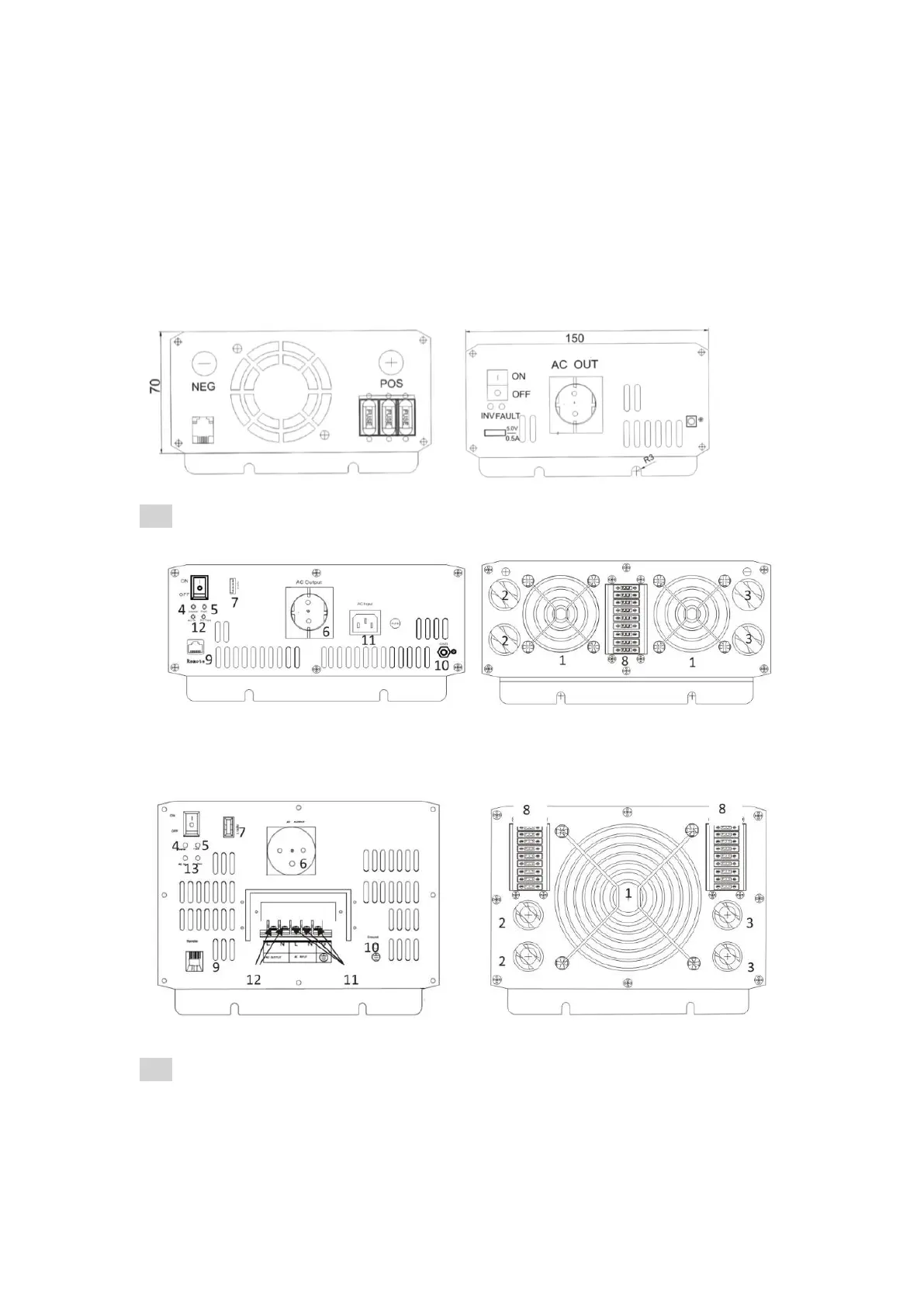

10. MECHANICAL DRAWING

Front and back Panels

1000W

2000W

3000W

A) ON/OFF Switch: This switch controls ON/OFF operation of the unit

B) Charger In: plug AC input cable into it and AC source

C) AC socket
