Section 8: Little Beaver 2.0 Ultrasonic Scaler Description

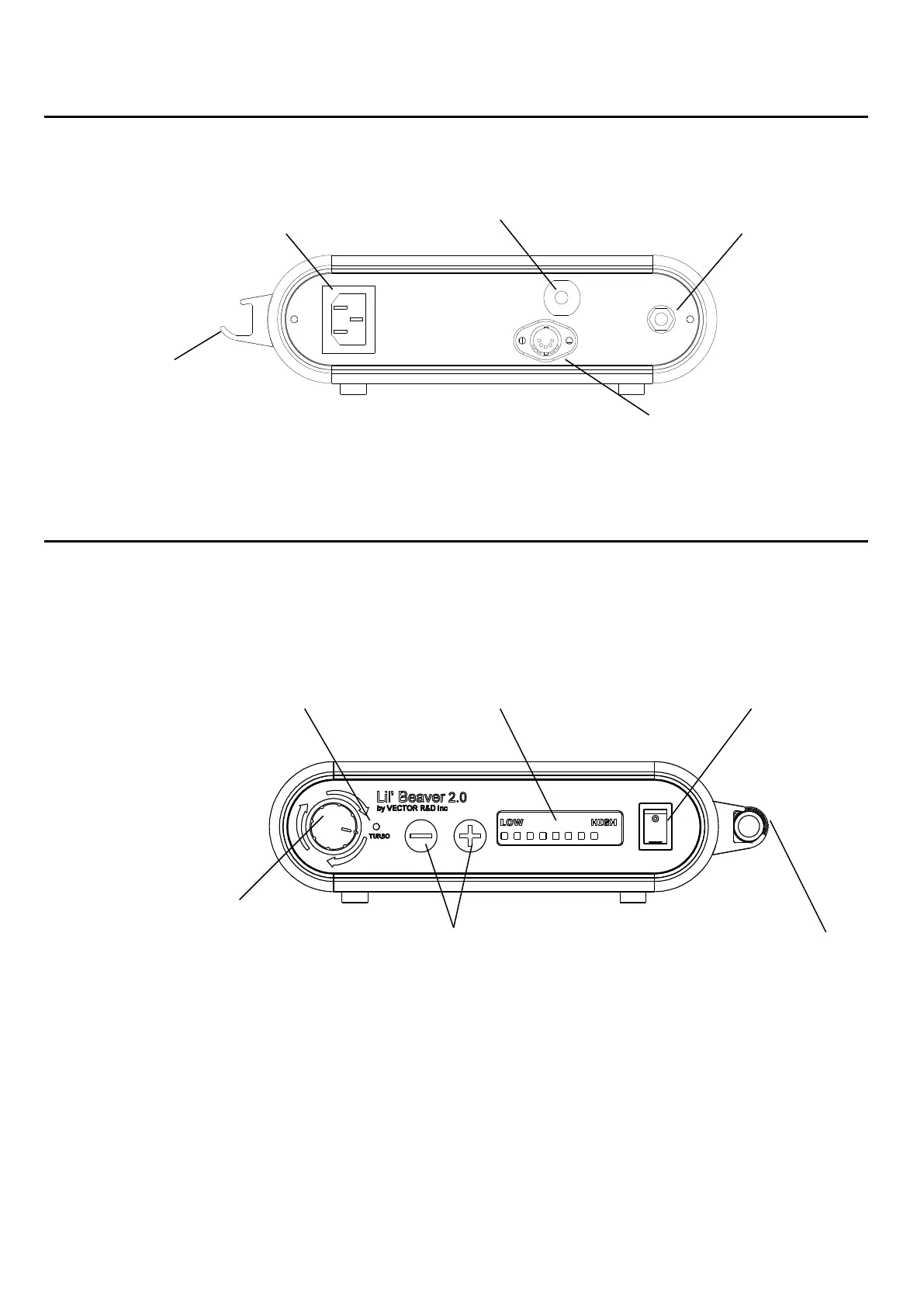

8.1 System Controls – Rear Panel
Front Panel
Water Flow Adjustment
Turn knob to select Water Flow
level for operation. Clockwise
increases water flow, while
counterclockwise decreases water
flow.
The rate of flow through the Hand
piece determines the temperature
of the water flow. Lower flow rate
produces warmer temperature;
higher flow rate produces cooler
temperature.
Foot Switch Connector
Connect foot switch here,
ensure it is firmly seated.
Solenoid Water Inlet
Power Socket
Intensity Control
Increase or decrease power level
for operation: “┿” increases
power, “–” decreases power.
Handpiece
Operates 25Khz or 30Khz
Ultrasonic inserts and
transmits power and water
flow from the scaler to the
insert.
Power Switch / AC Power
Indicator Light
Illuminates when POWER
ON/OFF control switch is on.
Handpiece Holder
Securely holds the
Handpiece when system
is not being used.
Intensity Display
Indicates the power level,
total 8 LEDs display.
Handpiece tubing outlet
Turbo Indicator Light
Illuminates when foot
switch is deeply pressed,
and it is functioning in
“Turbo” mode.
