Wiring Instructions Wiring Overfill Alarm without Acknowledgment Switch
7
Wiring Overfill Alarm without Acknowledgment Switch
1. Pull one wire for neutral from the Overfill Alarm to the power panel.
2. Pull one wire from the Overfill Alarm to the console for connection to the alarm relay.
3. Pull one wire for line from the alarm relay in the console to the power panel.
4. Turn power Off and connect wiring according to the wiring diagram in Figure 4 and Table 1.

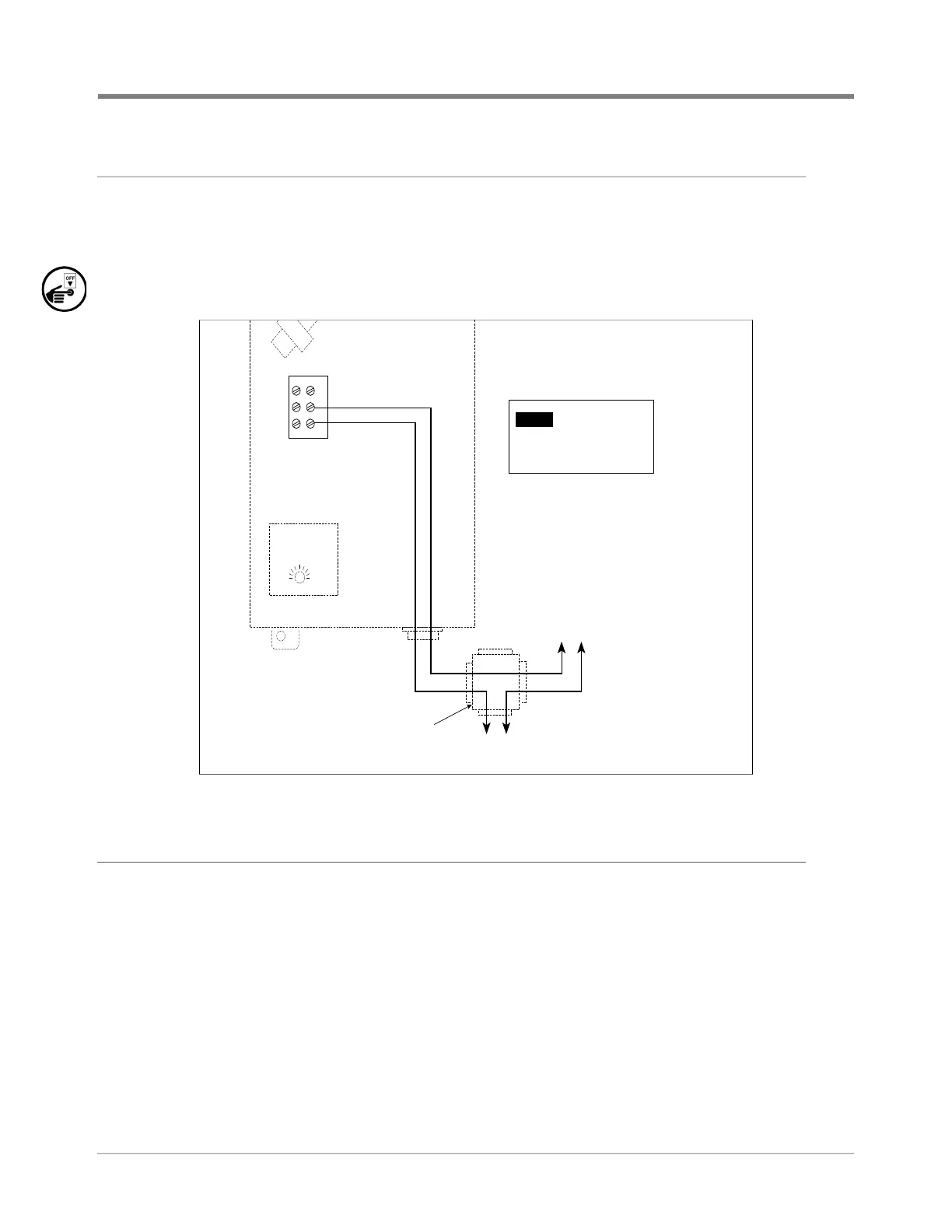

Figure 4. Overfill Alarm only wiring connections
Enclosure Grounding
There are two separate methods for grounding the Overfill Alarm. Ensure that the ground connection is made in
accordance with all local codes.
If using a properly grounded rigid metal conduit or equivalent to enclose the external wiring for the Overfill Alarm,
th
e ground hub that terminates the conduit provides an adequate grounding provision for the Overfill Alarm.
If using a ground wire within the conduit, terminate the ground wire on the grounding stud located in the bottom of
the enclosure. Ensure that a star washer is between the enclosure and the lug attached to the ground wire and
that the lug is secured in place by the included KEPS nut (see Figure
5).
To power panel
L N
1
2
3
Overfill Alarm
(cover open)
Horn Time
Delay Relay
To Console Relay -
See Console Connection
Table in this manual
Customer supplied
junction box
NOTICE
MAKE GROUND CONNECTION IN
ACCORDANCE WITH LOCAL CODES.
To Next Page
