Mounting Instructions

Overfill Alarm and Acknowledgment Switch Dimensions

Figure 1 shows the Overfill Alarm mounting dimensions and Figure 2 shows the Acknowledgment Switch

mounting dimensions.

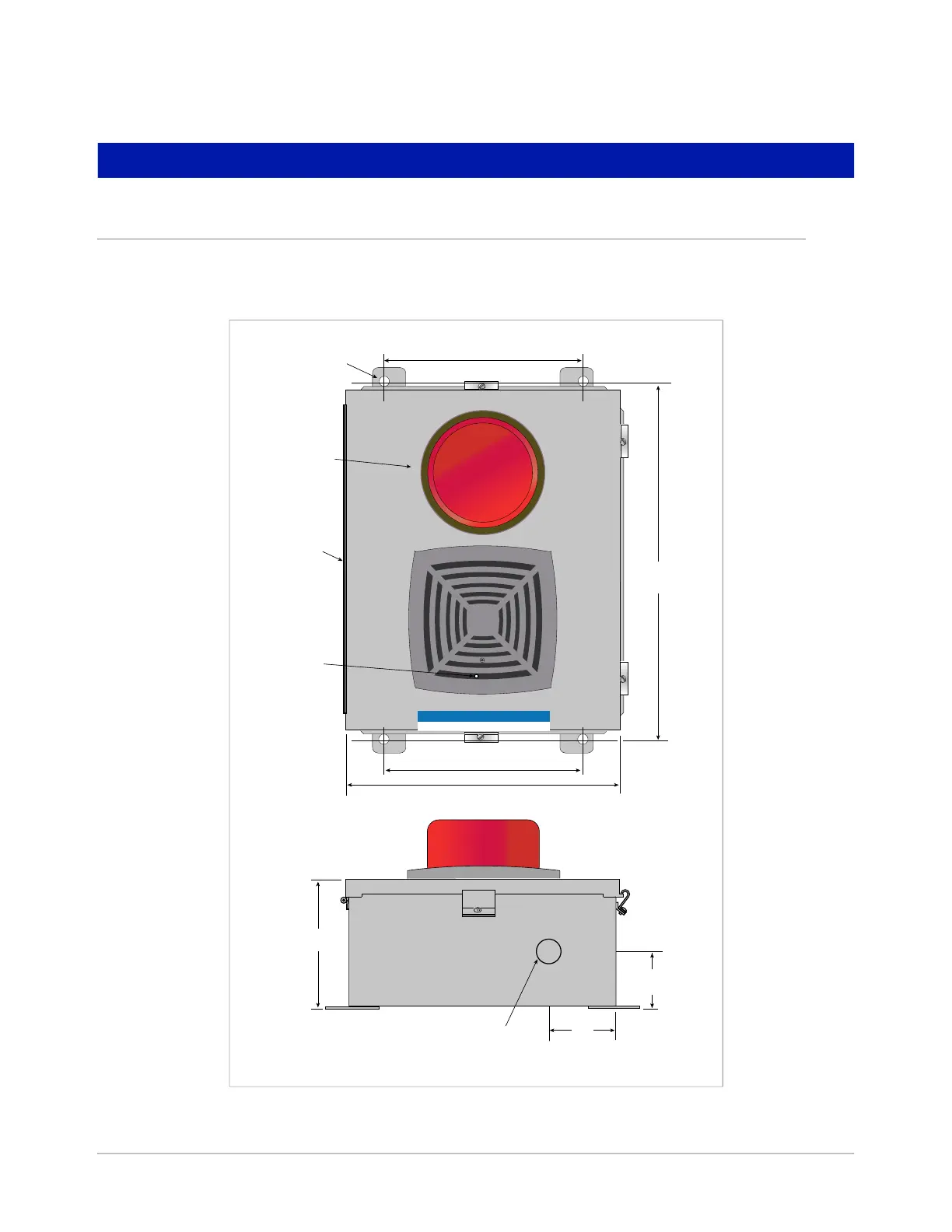

Figure 1. Overfill Alarm Mounting Dimensions

VEEDER-ROOT

0.313'' (8 mm) dia.

4 holes

2 ''

(50.8 mm)

1/2 ''

conduit

connector

1.6 ''

(40.6 mm)

4 ''

(101 mm)

6'' (152.4 mm)

8'' (203 mm)

6'' (152.4 mm)

10.3 ''

(261.9 mm)

Hinge

side

Red Flashing Light

Horn volume

adjustment screw

(1/16'' Hex Hd)
