Wiring Instructions Enclosure Grounding
8

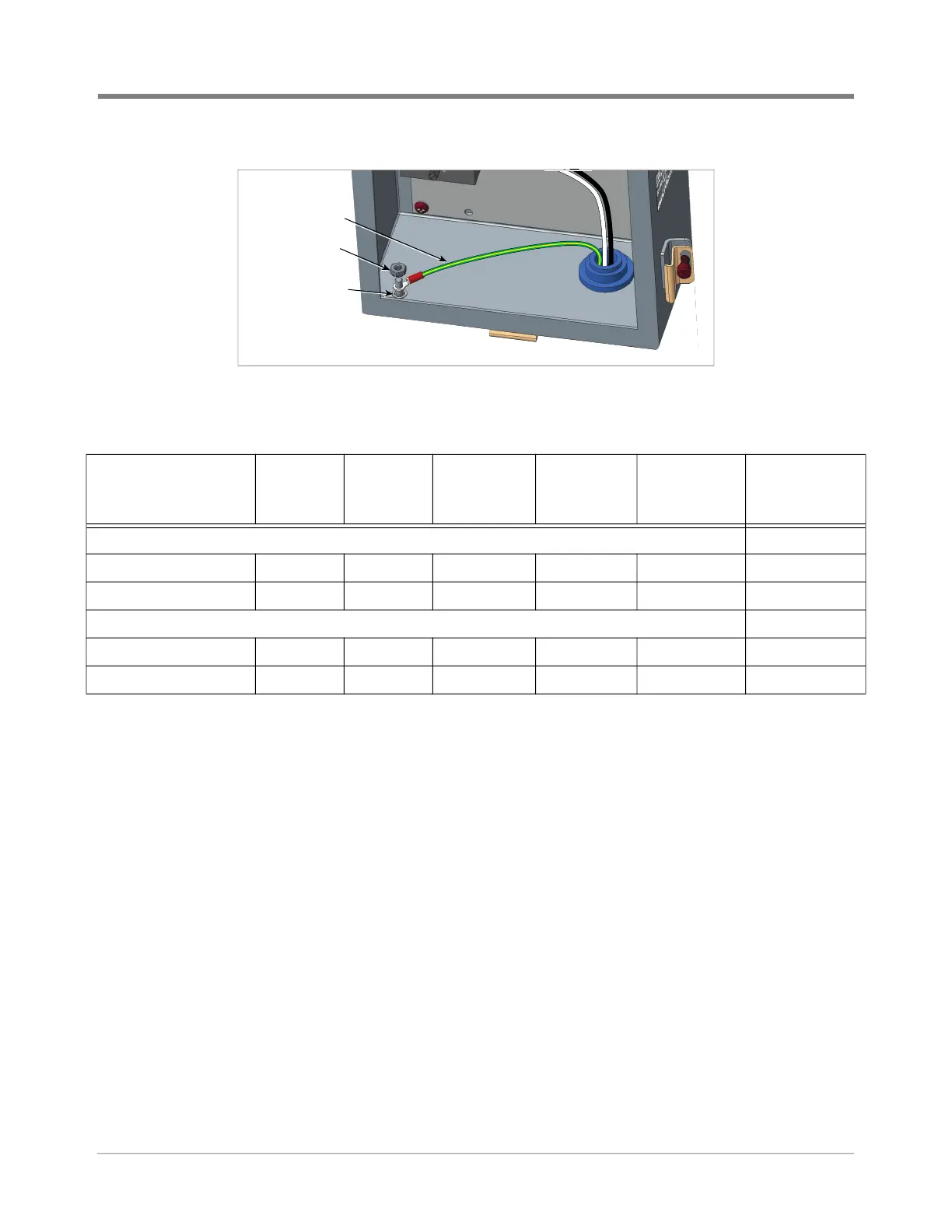

Figure 5. Overfill Alarm Ground Wire Termination
Table 1. Console Connections
Input
TLS2 or TLS-
IB
C
onnection
TLS-50 or
TLS-HLD
Connection
TLS-300
Output Relay
Connection
TLS-350
I/O Combo
Relay
Connection
TLS-350
4 Relay Output
Module
Connection
TLS-4XX
Overfill Alarm
Re
lay Connector
Overfill Alarm without Acknowledge Switch (see Figure 4)
Overfill Alarm terminal 2 J6, 1 J5, 1 NO NO NO NO
Line (from power panel) J6, 2 J5, 2 C C C C
Overfill Alarm with Acknowledge Switch (see Figure 3)
Ack Switch terminal 1 J6, 1 J5, 1 NO NO NO NO
Ack Switch terminal 5 (line) J6, 2 J5, 2 C C C C
Star Washer
(against enclosure)
Ground Wire
KEPS Nut
To Next Page
