Veeder-Root TLS-350 PLUS - PMC Alarm Summary

Operation PMC Alarm Summary
PMC Alarm Summary
Table 2 contains a listing of the PMC generated alarms including their displayed message and cause. TLS
Console PMC alarms may be interspersed amongst non-PMC alarms, please see TLS350 Series manuals for
more information.

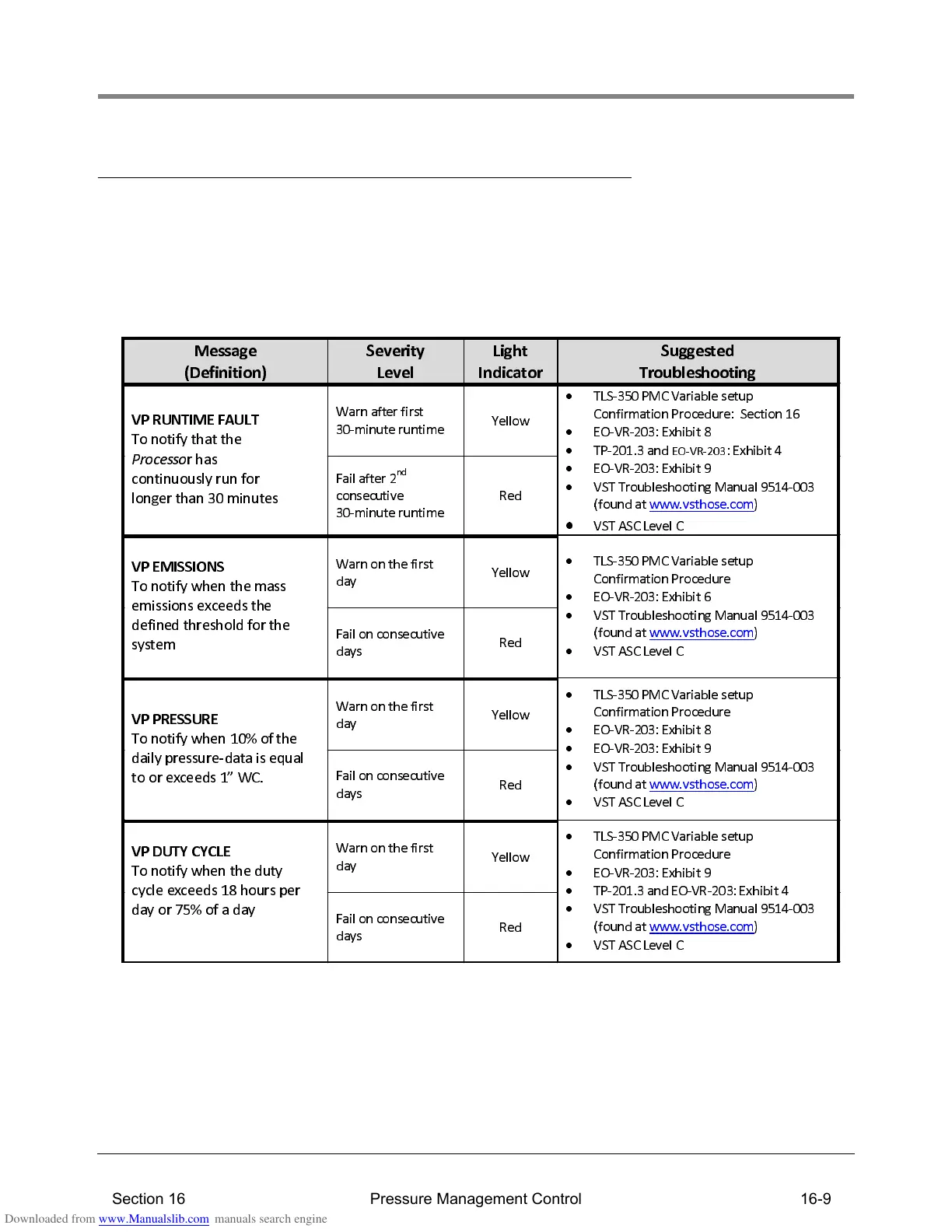

Table 2. TLS 350 (PMC) Alarm Troubleshooting Summary
Message
(Definition)
Sever ity
Level
Light
Indic ator
Suggeste d
Troublesho oting
W arn after first
30-minute runtime
Yellow
VP RUNTIME FAULT
To notify that the
Processo r has
contin uous ly run for
longer than 30 minutes
Fail after 2
nd
consecutive
30-minute runtime
Red
• TLS-350 PMC Variable se tup
Confirmation Procedure: Section 16
• EO-VR-203: Exhibit 8
• TP-201.3 and
EO-VR-203 : Exhibit 4
• EO-VR-203: Exhibit 9
• VST Tr oubleshooting Manual 9514-003
(found at www.vsthose.com
)
• VST ASC Leve l C
Warn on the first
day
Yellow
VP EMISSIONS
To notify when the mass
emissions exceeds th e
defined threshold for the
system
Fail on consecutive
days
Red
• TLS-350 PMC Variable se tup
Co nfir ma ti o n Pr o c edure
• EO-VR-203: Exhibit 6
• VST Tr oubleshooting Manual 9514-003
(found at www.vsthose.com
)
• VST AS C Lev el C
Warn on the first
day
Yellow
VP PRESSURE
To notify when 10% of the
daily pressure-data is equal
to or exceeds 1” WC .
Fail on consecutive
days
Red
• TLS-350 PMC Variable se tup
Co nfirm ation Procedure
• EO-VR-203: Exhibit 8
• EO-VR-203: Exhibit 9
• VST Tr oubleshooting Manual 9514-003
(found at www.vsthose.com
)
• VST ASC Leve l C
Warn on the first
day
Yellow
VP DUTY CYCLE
To notify when the duty
cycle exceeds 18 hours per
day or 75% of a day
Fail on consecutive
days
Red
• TLS-350 PMC Variable se tup
Co nfirm ation Procedure
• EO-VR-203: Exhibit 9
• TP-201.3 and EO-VR-203: Exhibit 4
• VST Tr oubleshooting Manual 9514-003
(found at www.vsthose.com
)
• VST ASC Leve l C
Section 16
Pressure Management Control
16-9
