Veeder-Root TLS-350 - Page 41

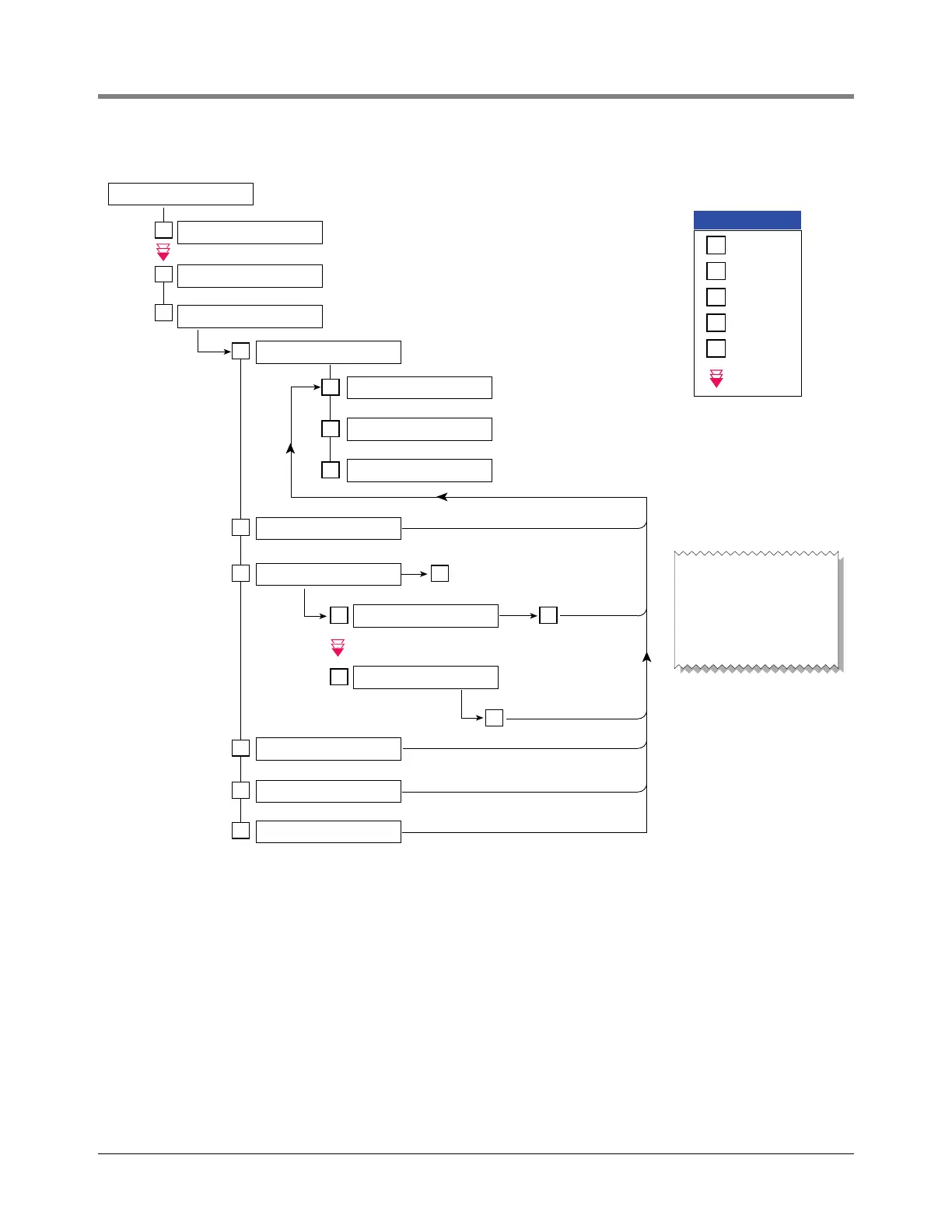

ISD/PMC Diagnostic Menus Removing & Replacing Vapor Flow Meters
35
P
ISD DIAGNOSTIC
PRESS <STEP> TO CONTINUE
SYSTEM DIAGNOSTIC
PRESS <STEP> TO CONTINUE
DIAG MODE
PRESS <FUNCTION> TO CONT
CLEAR TEST AFTER REPAIR
PRESS <ENTER>
CONTAINMENT OVER PRESS
PRESS <ENTER>
F
F
S
E
VAPOR LEAKAGE TEST
PRESS <ENTER>
S
VAPOR COLLECTION TEST
PRESS <ENTER>
S
SENSOR OUT TEST
PRESS <ENTER>
S
SETUP TEST
PRESS <ENTER>
S
PROCESSOR STATUS TEST
PRESS <ENTER>
S
CLEAR TEST AND LOG
ARE YOU SURE?: YES
E
E
E
FP: ff h:HH nnnnnnnnnnn
PRESS <ENTER>
S
E
CLEAR TEST AND LOG
ARE YOU SURE?: YES
E
ARE YOU SURE?: YES
PRESS <STEP> TO CONTINUE
E
2
2
2
2
2
1
2
ISD-EVR/fig4.eps
Notes:
1. All repair dates are saved in the Miscellaneous Event Log.
2. Reference the Clear Test Repair Menu table on the next page.
ff = fuel position label
HH = hose on ff
nnnnnnnnnnn hose label
Selects all hoses on
this fuel position
See example printout
at right.
Press step to select an individual
hose on this fuel position.
FP: ff
PRESS <ENTER>
TEST FAIL CLEAR DATES
CONTAINMENT OVER PRESS
02-06-11 12:43
VAPOR COLLECTION TEST
FP: 1 h: 1 MIDGRADE
02-06-10 11:13
E
F
P
S
T
Enter
Function
Print
Step
Tank/Sensor
Repeat key
presses
Key Legend
