48
Diagnostics Vapor Monitor - Clear Test After Repair

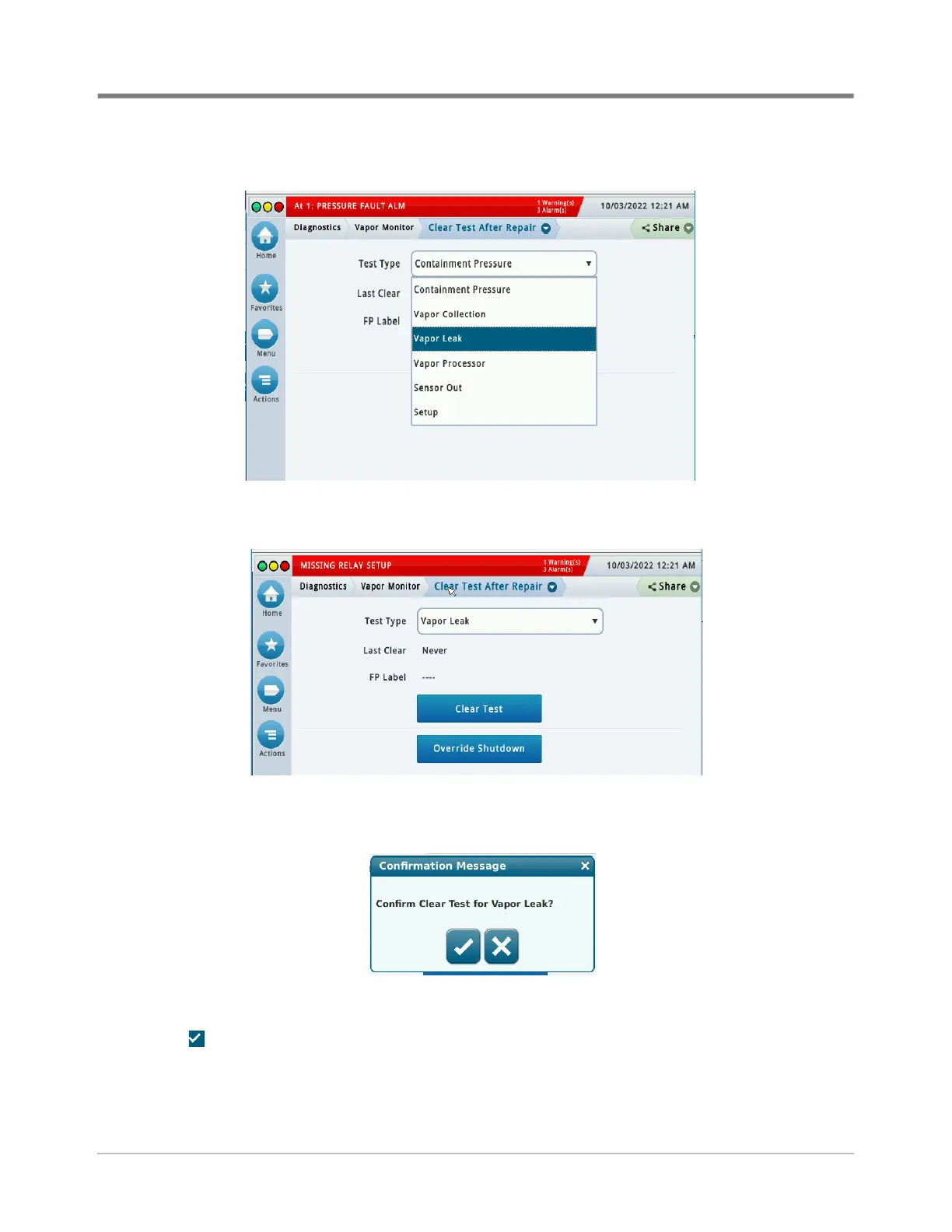

2. In the Test Type drop-down box, scroll down to test type to clear, in this example, Vapor Leak (Figure 72).
Figure 72. Select Test Type
3. Touch the Clear Test button to clear the test (Figure 73).
Figure 73. Clear Test
4. A Confirmation Message dialog box appears.
Figure 74. Confirmation Message Dialog Box
5. Touch the button to clear the warnings and alarms for the selected test. This will prevent data for the
selected Test Type prior to the Last Clear Date/Time posted from being used at the next Assessment Time.
Using this feature will result in a ‘TEST MANUALLY CLEARED’ logged entry in the ISD ‘Shutdown & Misc.
Event Log’ and the Last Clear field will also update.
