Veeder-Root TLS-450PLUS Hardware Replacement Guide

Replacing The Right Door (Ack Switch Panel Or Display) Before Turning Off Power
7
5. Remove the TLS-450PLUS Ack Switch Panel/Display door by removing the top and bottom hinge shoulder
screws (see Figure 7).

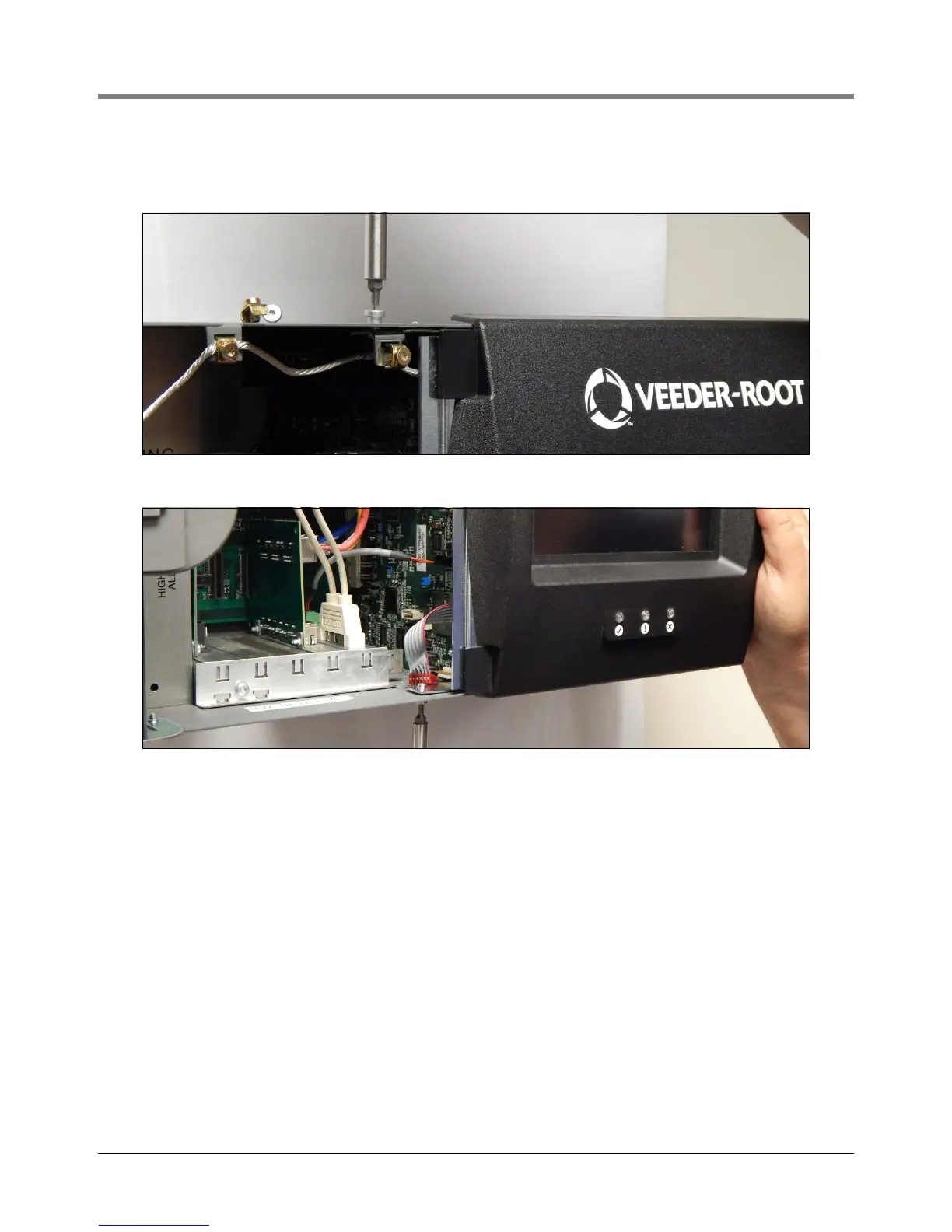

Figure 7. Remove Top And Bottom Optional Display Door Hinge Screws
6. Replace the Ack Switch Panel/Display door be reversing the appropriate steps above.
