Veeder-Root TLS-450PLUS Hardware Replacement Guide

Replacing The Right Door (Ack Switch Panel Or Display) Before Turning Off Power
6

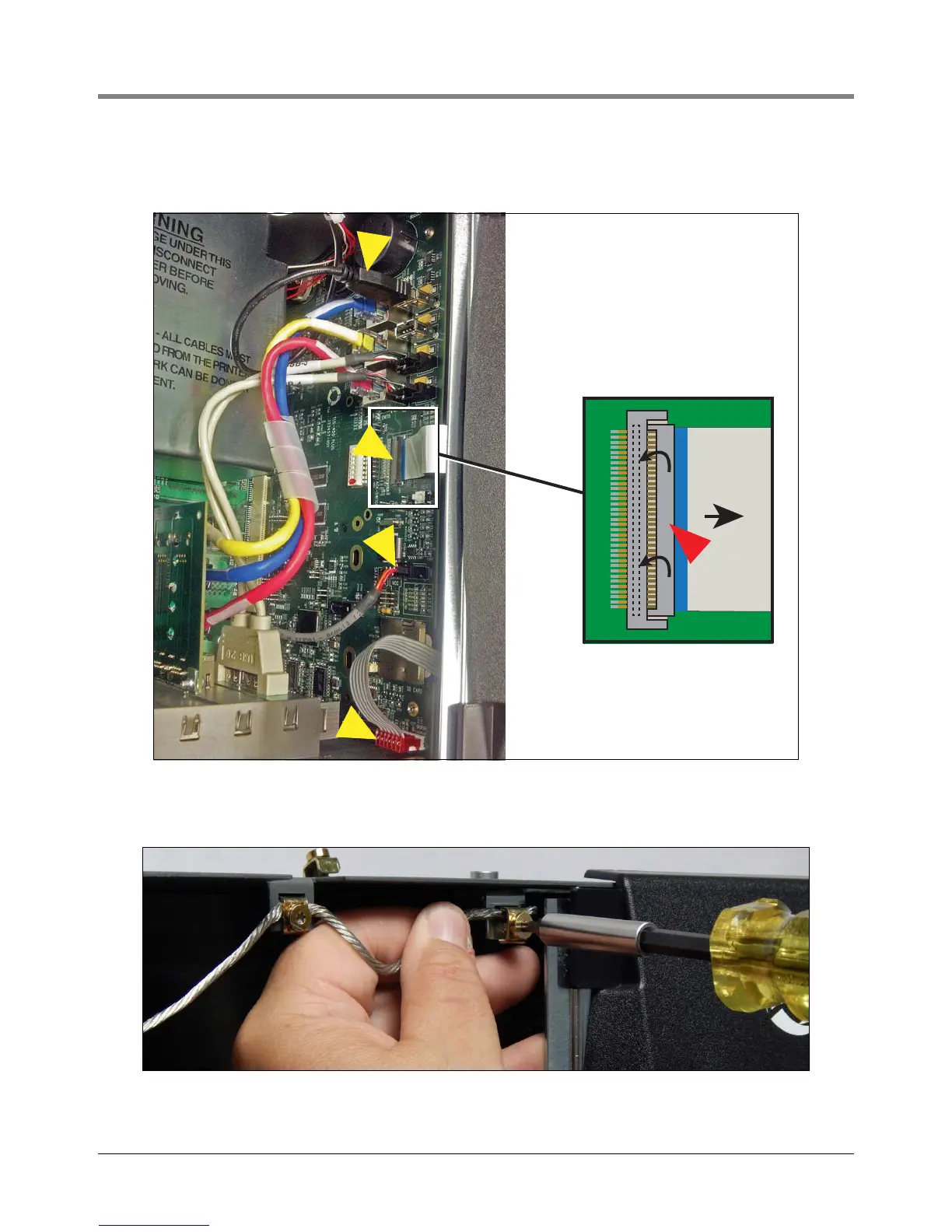

3. Remove the LED Back light cable (pointer 2) from CPU board connector (see Figure 5).
Figure 5. Remove Display Cables From CPU Board
4. Remove the Ground wire at the top of the door (see Figure 6).
Figure 6. Remove Ground Wire From Ack Switch/Display Door
1
4
2
3
1a
