14
4 Mounting
VEGAMET 841 • 4 … 20 mA
58864-EN-200401
4321
5

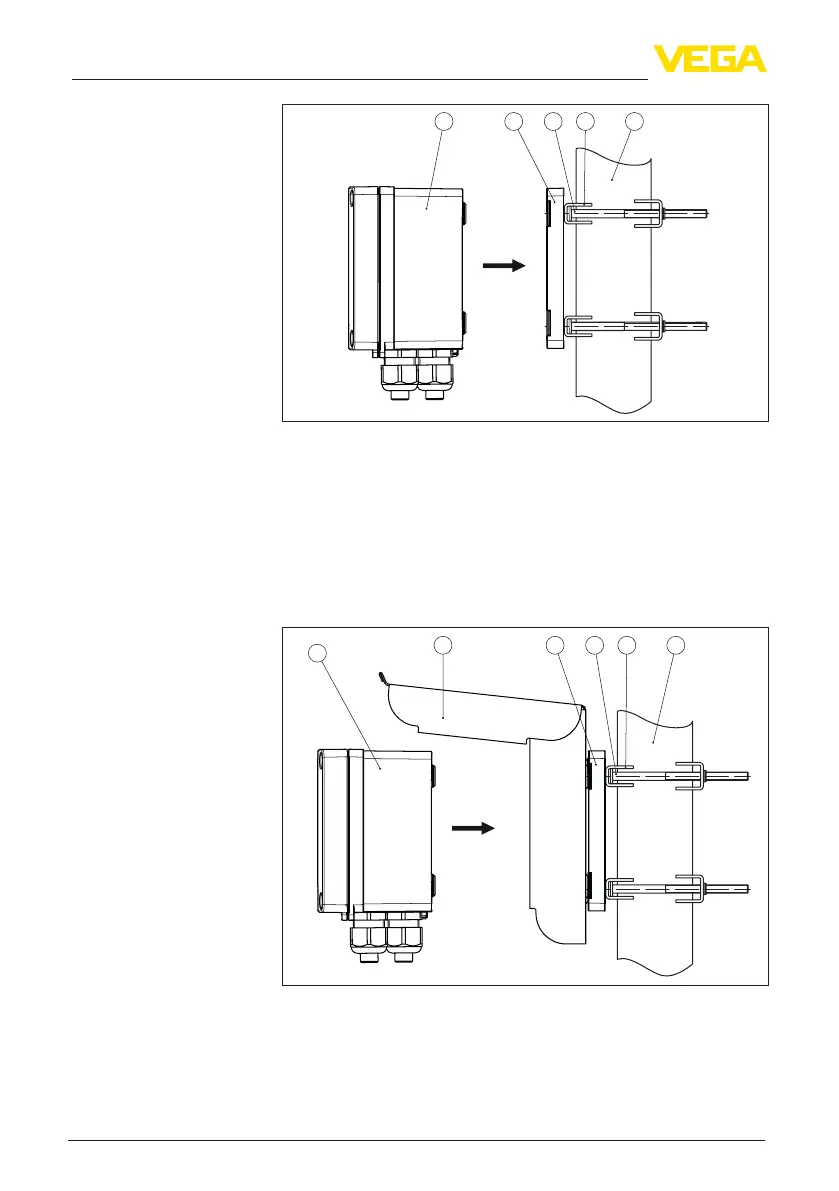

Fig. 4: Tube mounting
1 VEGAMET 841
2 Mounting plate
3 4 screws M6 x 100
4 Mounting brackets
5 Pipe for diameter 29 … 60 mm (1.14" to 2.36")
The optional sun protection can be used to protect against direct sun-
light. The sunshade is simply mounted between the mounting plate
and the controller, this is possible for both wall and pipe mounting.
5432
1
6
Fig. 5: Mounting sun protection with pipe mounting
1 VEGAMET 841
2 Sun shade
3 Mounting plate
4 4 screws M6 x 100
5 Mounting brackets
6 Pipe for diameter 29 … 60 mm (1.14" to 2.36")
Mounting sun shade
