4 Mounting
VEGAMET 841 • 4 … 20 mA
58864-EN-200401
Loosen the four screws in the housing cover and open it to the left.
Fasten the device to the mounting plate using the screws (M5) sup-
plied.
82 mm
(3.23")
ø13 mm
(0.51")
ø7 mm
(0.28")
82 mm (3.23")

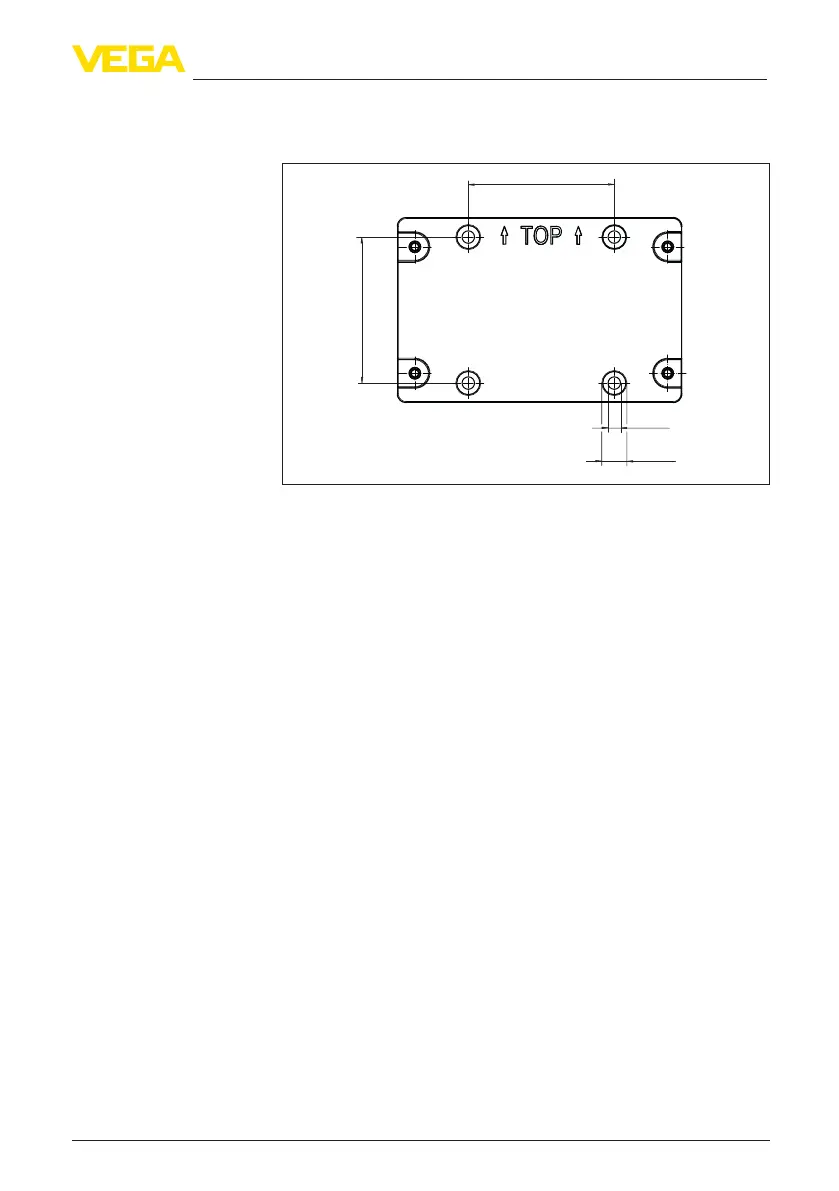

Fig. 3: Mounting plate for wall mounting VEGAMET 841
The optionally available mounting accessories are required for tube
mounting. The kit consists of two pairs of mounting brackets and four
mounting screws M6 x 100.
The mounting brackets are screwed to the mounting plate and the
tube as shown in the following illustration.
Loosen the four screws in the housing cover and open it to the left.
Fasten the device to the mounting plate using the screws (M5) sup-
plied.
Tube mounting
