7 Set up with the integrated display and adjustment unit
VEGAMET 841 • 4 … 20 mA
58864-EN-200401
When the [+] and [->] keys are pressed quickly, the edited value,
or the cursor, changes one value or position at a time. If the key is
pressed longer than 1 s, the value or position changes continuously.
Approx. 60 minutes after the last pressing of a key, an automatic reset
tomeasuredvalueindicationistriggered.Anyvaluesnotconrmed
with [OK] will not be saved.
7.2 Display
The measured value display shows the digital display value, the
measuring loop name ( measurement loop TAG) and the unit. In addi-
tion, an analogue bargraph can be displayed. Up to three measured
valuewindowswithdierentmeasuredvaluescanbecongured.If
pump control is activated, an additional status bar with display of the
assigned pumps is available.
Measured values are displayed according to the following presenta-
tion:
1
2
3
4
5
6
7
TAG-No. 1
%
47.8
1
2

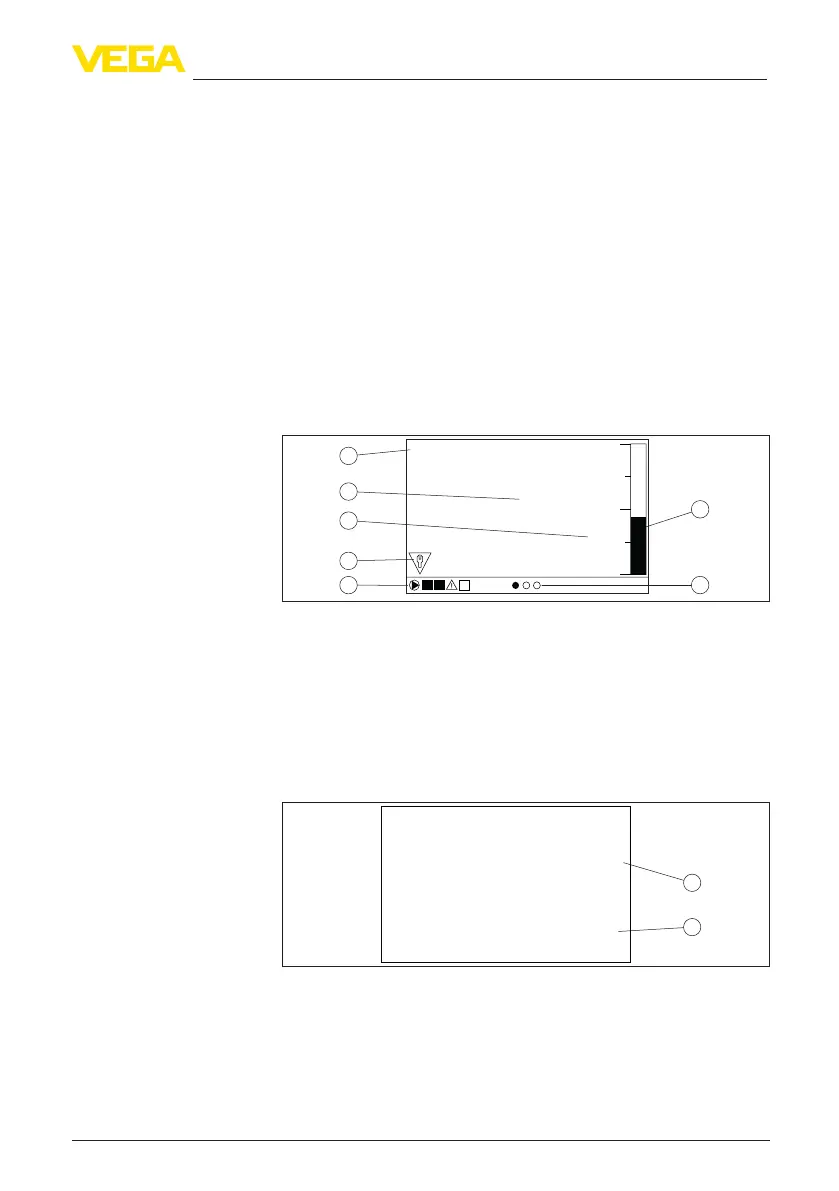

Fig. 9: Example measured value indication (measured value with bargraph)
1 Measurement loop name
2 Measured value
3 Unit
4 Status message acc. to NAMUR NE 107
5 Status bar for pump control
6 Bargraph measured value
7 Display active measured value window
The menu items are displayed according to the following presentation:
1
2
Max. adjustment
Sensor value at 100% :
Actual measured sensor value :
19.970
mA
20.000
mA
Fig. 10: Menu item display (example)
1 Sensor measured value at 100 %
2 Current sensor measured value
Time functions
Measured value indica-
tion
Menu item display
