3 Product description
VEGACONNECT • Wired interface adapter with connection box
66081-EN-211221
3 Product description
3.1 Conguration
The scope of delivery encompasses:
•
Interface adapter VEGACONNECT 4
•
Connection box with two connection cables
•
USB cable type A to type C
•
HART resistance
•
2 x suspension catch
•
Magnetic pen
•
Bluetooth USB adapter
•
Documentation
– This operating instructions manual
– Ex-specic"Safety instructions" (with Ex versions)
– Ifnecessary,furthercerticates
VEGACONNECT consists of the following components:
4 5
8
7
9
6
2
1
3
OPEN
TWIST
USB
LOCK
CONNECT

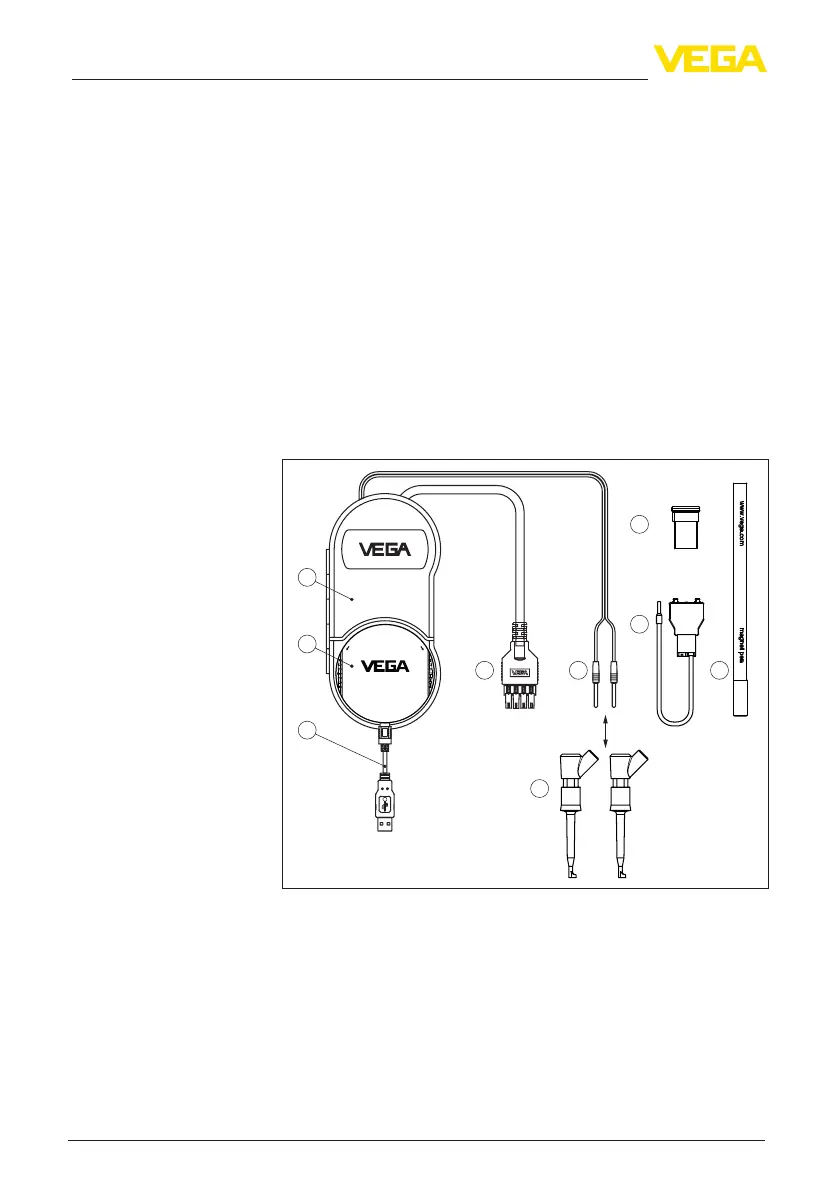

Fig. 1: Conguration VEGACONNECT
1 USB cable type A to type C
2 VEGACONNECT 4
3 Connection box with storage space
4 I²C bus cable
5 HART cable with 2 mm pins
6 2 x suspension catch for cable with 2 mm pins
7 Bluetooth USB adapter
8 HART resistance
9 Magnetic pen
On the back of the connection box there is a fold-out hook to hang the
device on a pipe, for example, if there is no place to put it. In addition,
Scope of delivery
Constituent parts
