6 Setup with the integrated indicating and
adjustment unit
6.1 Adjustment system
The integrated indicating and adjustment unit is used for measured
value display, adjustment and diagnosis of VEGAMET 624 as well as
the connected sensors. The indication and adjustment are carried out
via four keys and a clear, graphic-capable display with background
lighting. The adjustment menu with selectable language is clearly
structured and enables easy setup.
Certain adjustment options are not possible or only partially available
with the integrated indicating and adjustment unit. These are e.g.
settings for the e-mail server. For such applications, the use of
PACTware with appropriate DTMs is recommended.
Ser. No.
12345678
on
OK ESC
COM
3
2
1
3
6
5
7
4
1
2

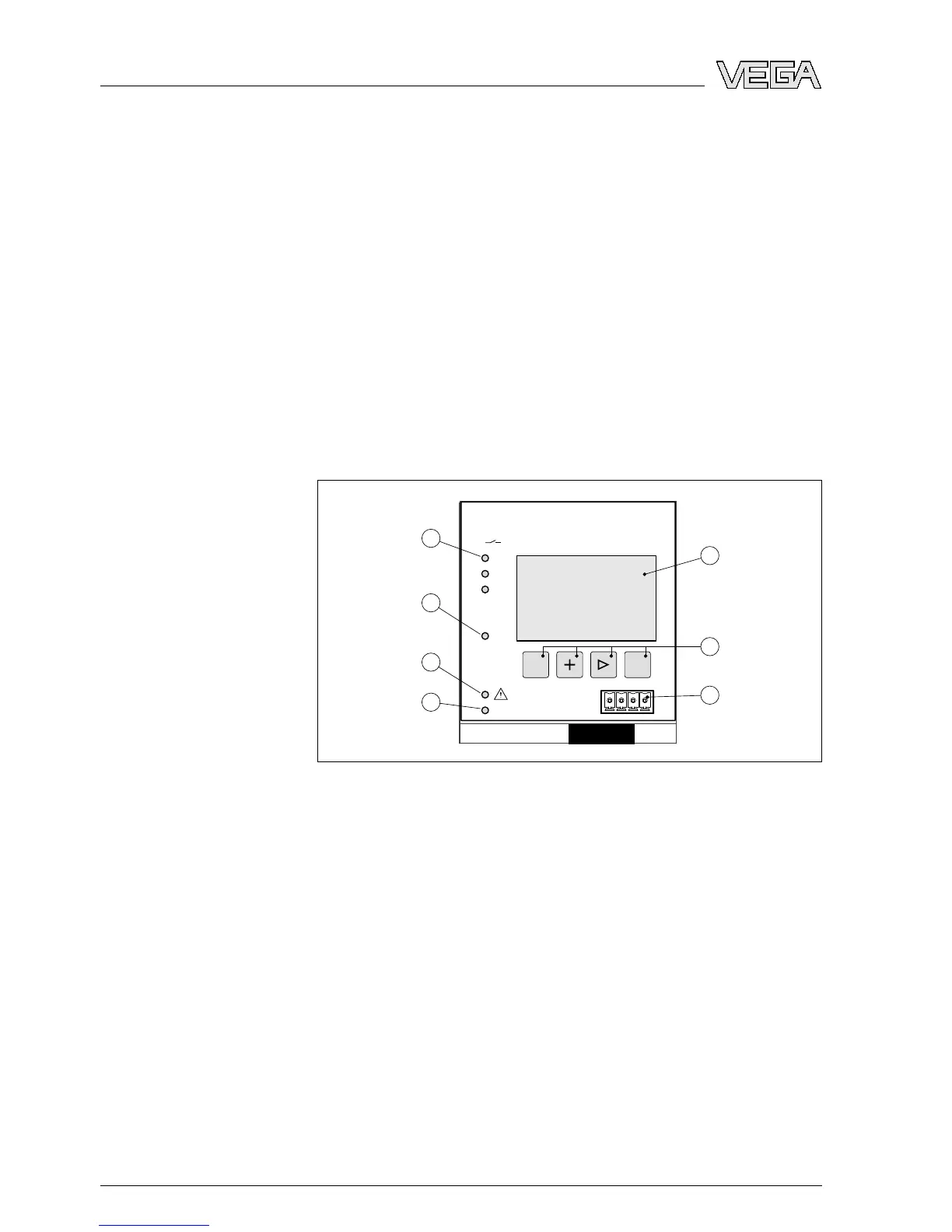

Fig. 5: Indicating and adjustment elements
1 LC display
2 Adjustment keys
3 Communication interface for VEGACONNECT
4 Status indication operation
5 Status indication fail safe relay
6 Status indication interface activity
7 Status indication operating relay 1 - 3
l [OK] key:
- Move to the menu overview
- Confirm selected menu
- Edit parameter
- Save value
l [->] key to select:
- menu change
- list entry
- Select editing position
Function
Indicating and adjust-
ment elements
Key functions
16 VEGAMET 624 • 4 … 20 mA/HART signal conditioning instrument
6 Setup with the integrated indicating and adjustment unit
28969-EN-091116
