Velex VX502 - Wire Diagram

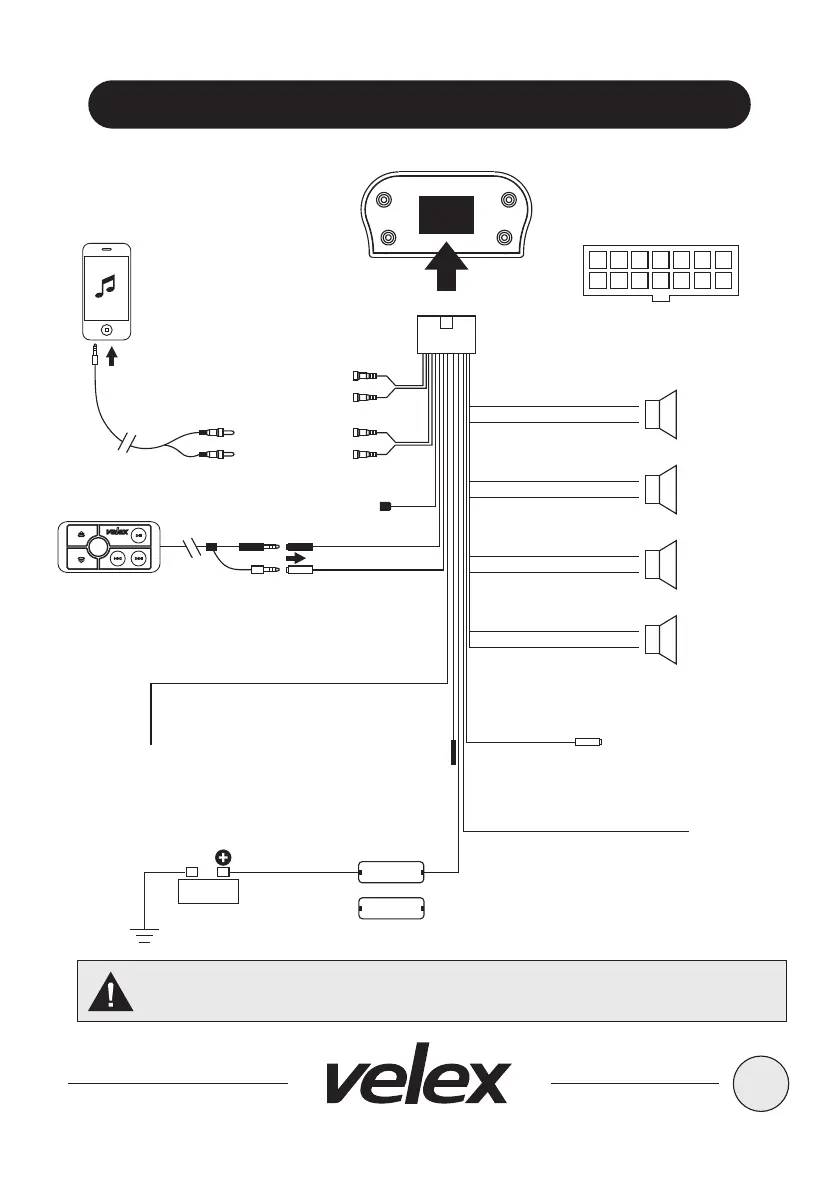

WIRE DIAGRAM
CAUTION!! Do not ground or short the PINK antenna wire
3
WHITE
WHITE/BLK
+
-
4-OHM
SPEAKERS
LEFT
CHANNEL 1
GRAY
GREEN
VIOLET
GRAY/BLK
GREEN/BLK
VIOLET/BLK
+
+
+
-
-
-
RIGHT
CHANNEL 1
LEFT
CHANNEL 2
RIGHT
CHANNEL 2
REMOTE OUT
(500mA MAX)
+12V BLUE
+12V RED IGNITION
+12V YELLOW
BATTERY
FUSE REPLACEMENT
15 AMP
BATTERY
CHASSIS
GROUND
POINT
DIRECT BATTERY
WIRING CIRCUIT
PINK
ANTENNA
(DO NOT CUT)
BLACK
CHASSIS
GROUND
PIONT
(DOT NOT GROUND OR
CONNECT TO +12V)
OPTIONAL BACKLIGHTING
ON/OFF CONTROL
ORANGE
VX502
SRC
INSERT
REMOTE
CONTROL
USB CHARGING
(1A MAX)
AUX INPUT
(R) INPUT RED
(L) INPUT WHITE
(R) OUTPUT RED
(L) OUTPUT WHITE
PRE-AMP OUTPUT
RCA TO 3.5mm
ADAPTOR
NOT INCLUDED
1
14
15 AMP
GRAY
BLK
