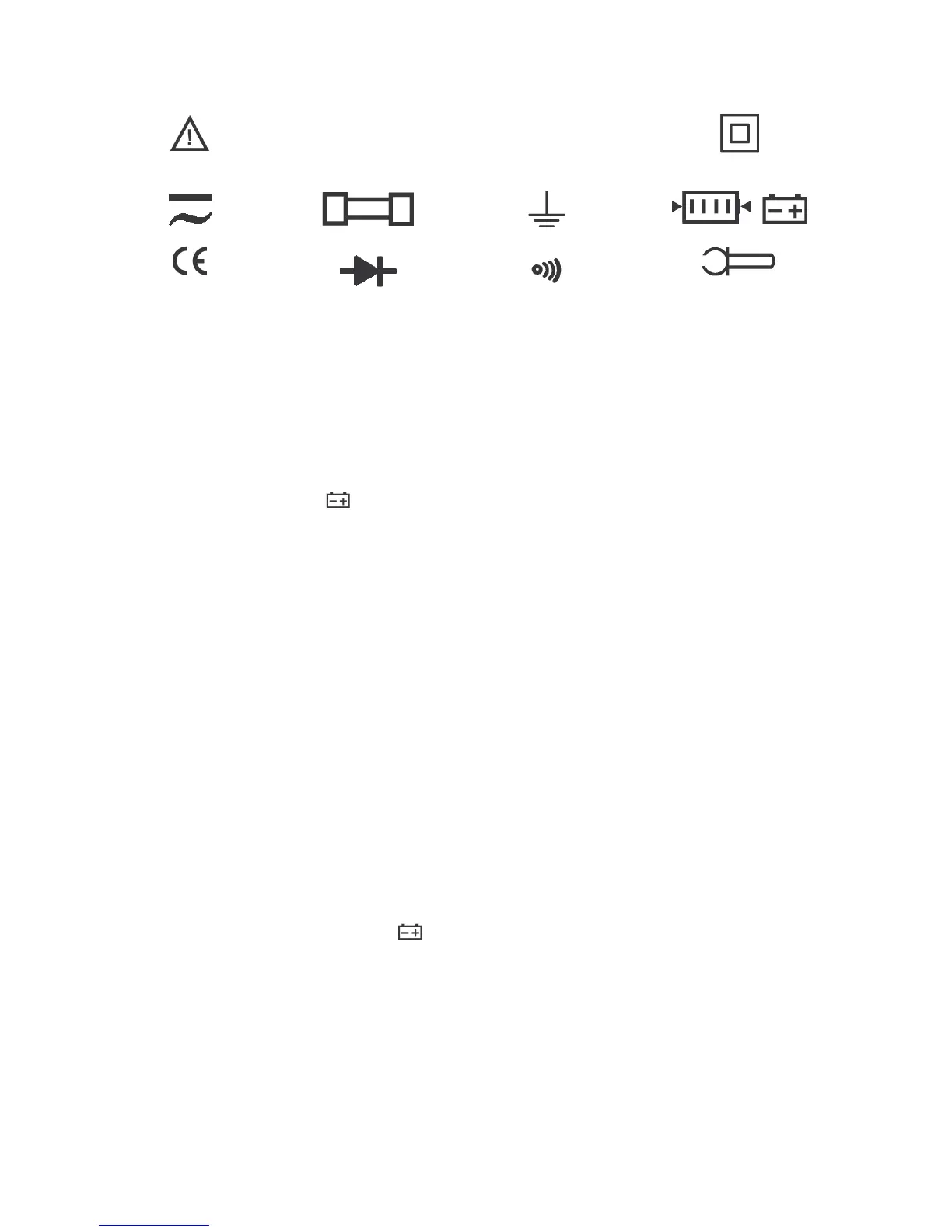

b. Display Symbols
Safety issue,
consult the manual
AC
Alternating current
DC
Direct current
Double insulation
(Protection class II)
AC or DC
Fuse
Earth ground
/
Battery / Battery low
conforms to EU directives
Diode
Continuity buzzer
Measurement with (optional)
clamp
MAX.H
Max. value is being held
DATA-H
Displayed data are held
AUTO
Automatic range selection
CATIII
Overvoltage category III,
pollution degree 2 (IEC1010-1)
4. Maintenance
• Do not remove the back cover while a voltage is being applied. Only a qualified technician should handle repairs.
• Always disconnect the test leads from all current sources before opening the meter.
• Replace the batteries when the symbol is displayed.
• Replace blown fuses with an identical one or a fuse with identical voltage and current ratings: F 200mA/250V
(quick-acting).
• Use a damp cloth and a mild detergent to clean the device. Never apply abrasives or solvents to the meter
• Place the power switch in the OFF position when the device is not being used
• Remove the batteries to keep them from leaking if the device is to be stored for a long time.
5. Specifications
Max. accuracy is achieved during a one-year period after calibration. Ideal circumstances require a temperature of 18
to 28°C (64 to 82°F) and a max. relative humidity of 75%.
5.1 General Specifications
Sampling Time ±0.4sec.
Display LCD 16mm
Max. Display 1999 points (3 ½ digits)
Polarity Indication "-" indicates negative polarity
Overrange Indication "OL"
Displayed Measuring Unit Unit of electrical capacity
Battery-Low Indication " "-symbol is displayed
Maximum Altitude 7000ft (2000m)
Max. voltage between terminals and earth 600V DC or AC
Fuse Protection F 200mA/250V (quick-acting)
Automatic Power Off 15 minutes
Power Supply 3 x 1.5V AAA-battery
Operating Temperature 0°C to +40°C (+32 to +104°F)
Storage Temperature -10°C to +50°C (+10 to +122°F)
Dimensions 158 x 74 x 32mm
Weight ±250g (batteries included)
