13
The standard Bosch CLT sensor curve is included in the Defaults section, and is close to many other
sensors.

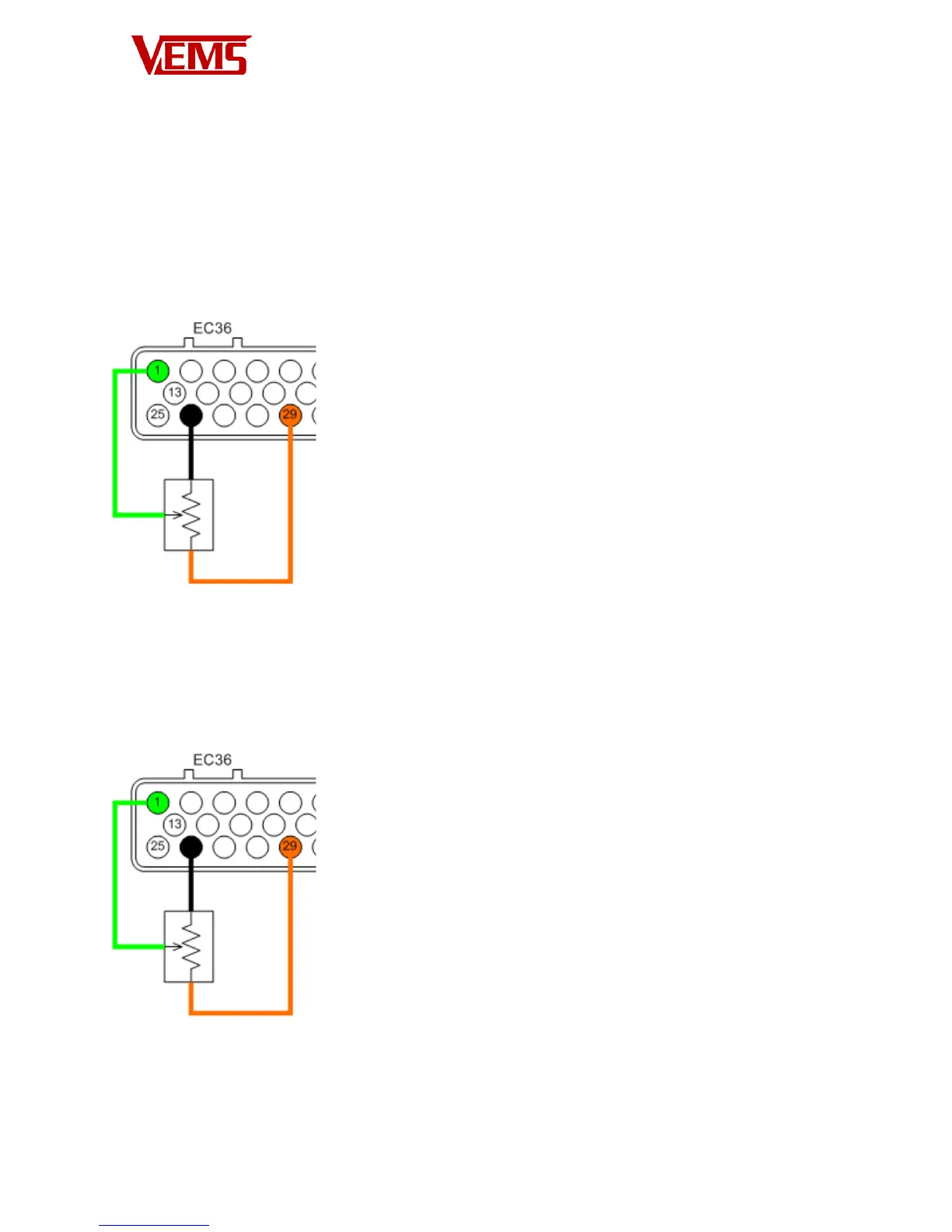

TPS – Throttle Position Sensor
The throttle position sensor is used by VEMS to provide fuel requirements in Alpha-N configuration and
acceleration enrichment.
•EC36-pin29 TPS (+5v) out
•EC36-pin1 Wiper out (0-5v)
•EC36-pin26 Ground
Configuring the TPS sensor
The throttle position sensor is used by VEMS to provide fuel requirements in Alpha-N configuration and
acceleration enrichment.
•EC36-pin29 TPS (+5v) out
•EC36-pin1 Wiper out (0-5v)
•EC36-pin26 Ground
