Alternative Connection If you are using an external ignition module/igniter pack you can also use the
Stepper Motor outputs as control channels:
This method is suitable for 4 cylinder COP/CNP or 4, 6 and 8 cylinder wasted spark.

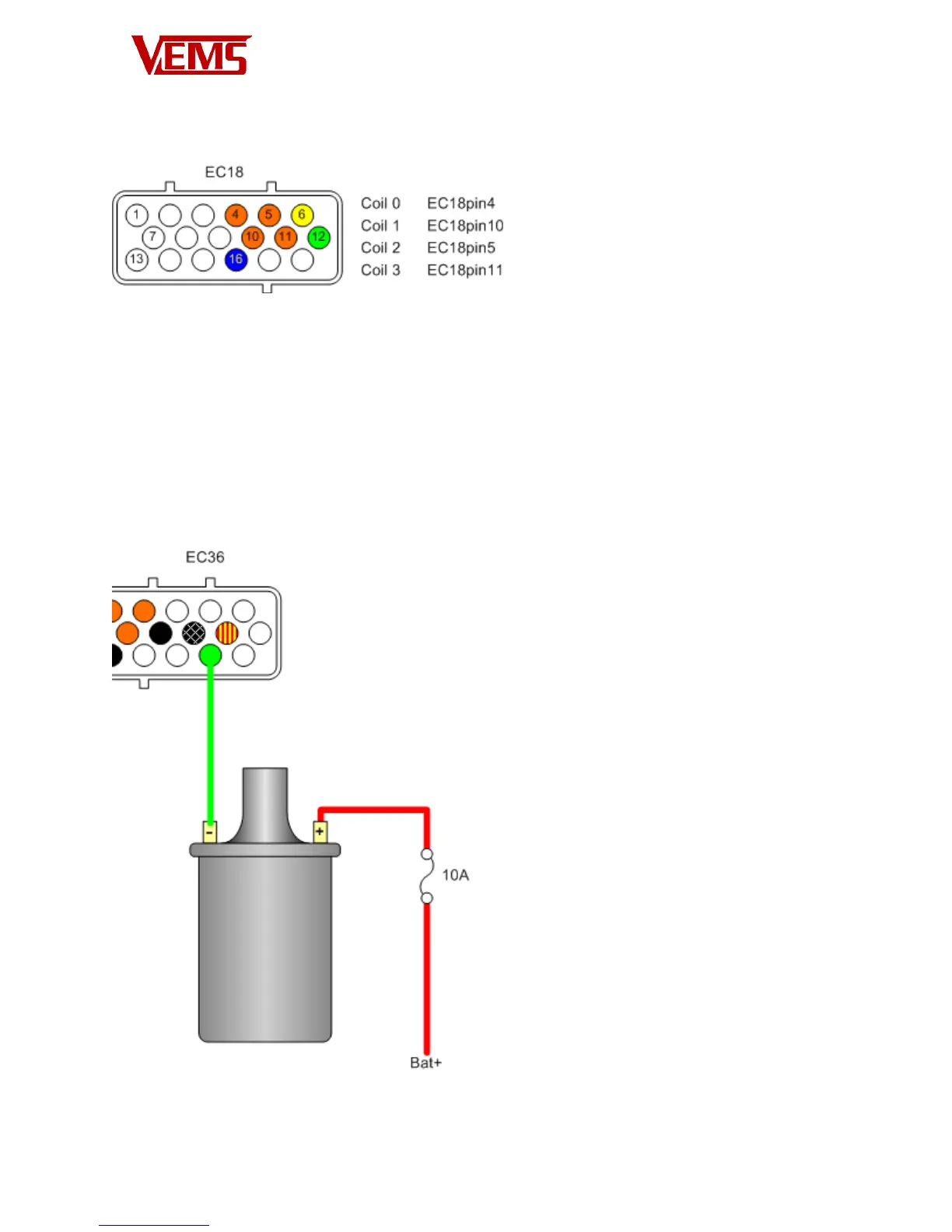

Example coil connections
The following connections suggest the pin numbers as a suggestion only. The actual connections will
depend on the Ignition Channel Options as above.
Single coil
In some instances you will want to keep the distributor, in this case VEMS can be configured to use the
original coil as shown.
