Vendo RSC - Step 1: Assemble the Frame; Step 2: Attach Anti-Tip Brackets; Step 3: Attach Frame to RSC

1238523A
2
---------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------
2x 1238027
2x 1238442
1240013
1238817
2x 1238434
8x V802291
8x V802062

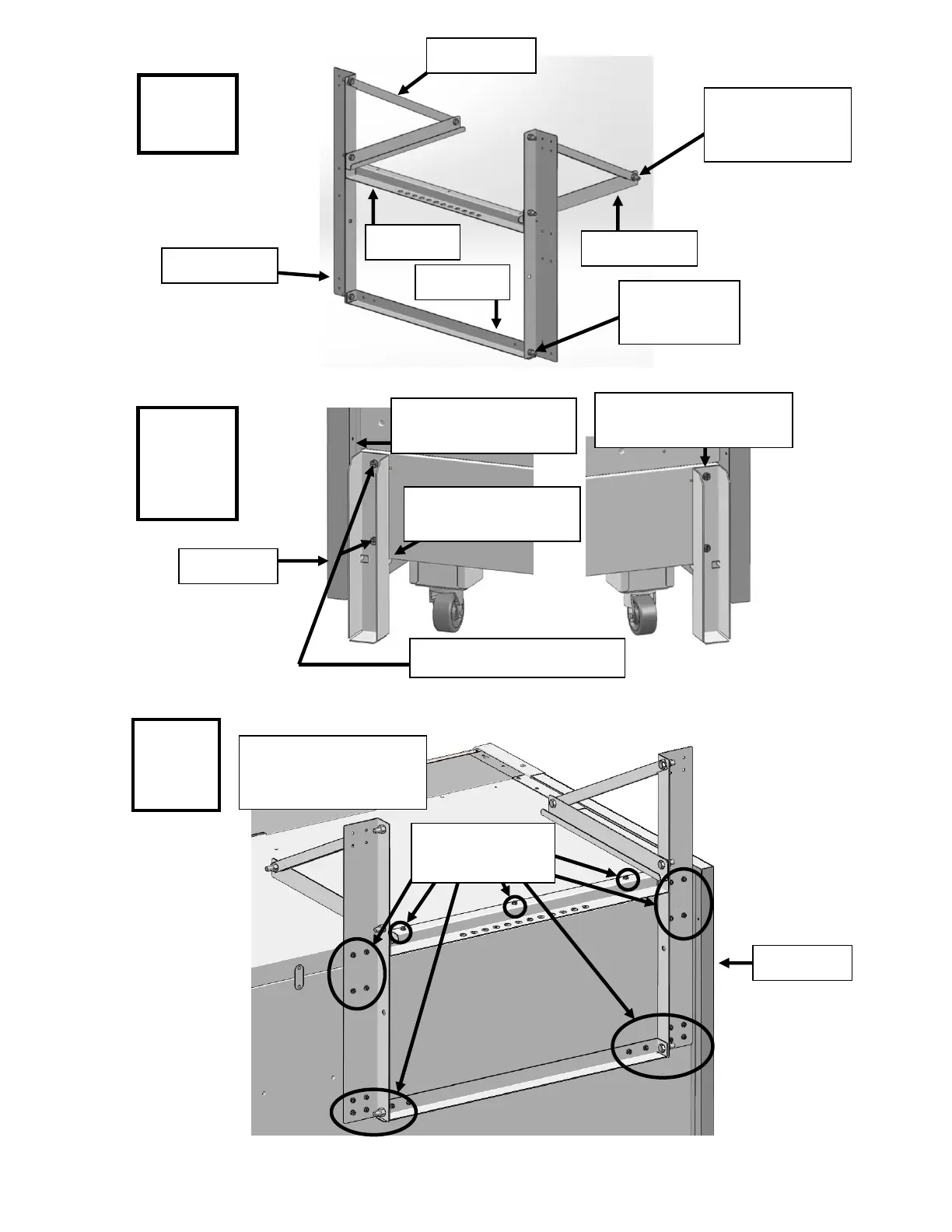

Step 1:
Assemble
the frame
Note orientation
of bolts and nuts
in assembly
Step 2:
Attach two
1238019
anti-tip
brackets
Push bracket against
the side panel
Push tabs against the
bottom of the RSC
Install two V802141 screws
Side panel
Install the other bracket
on the other rear corner
Step 3:
Attach
frame to
RSC
Install using 23
V802141 screws
Place frame on top of
RSC and push it up
against the side panel
Side panel
