Instructions for the installer, maintenance
technician and final user
25

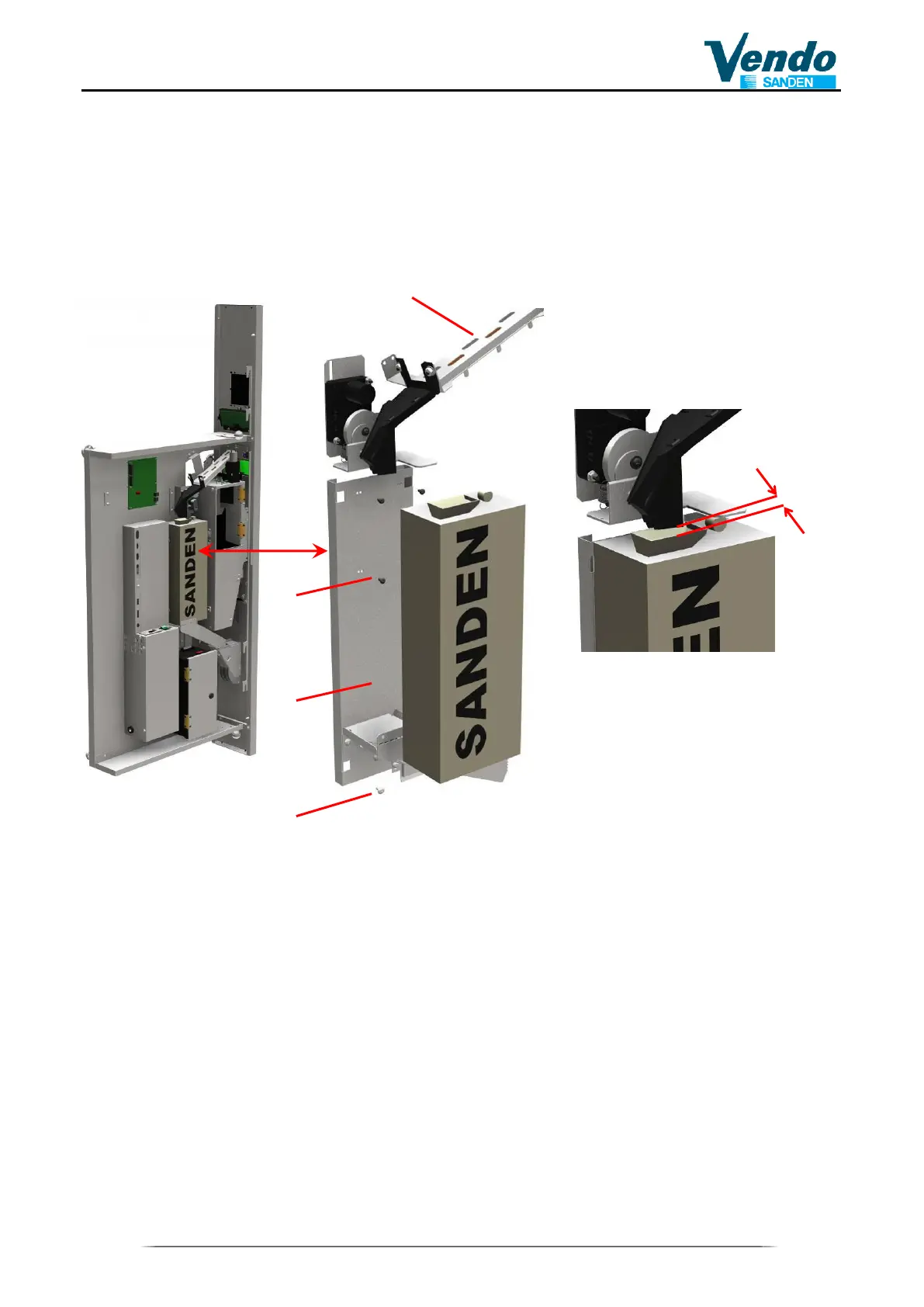

3.7 Coin Mechanism Installation
Hook the coin box on the 3 screws (E) located on the coin box door (F).
Check that the coin slot on the coin box is in line with the outlet of the coin channel (G) and
that the distance between the two parts is approx. 10 mm max.
The distance is adjustable loosening the 4 fastening screws (H) of the door and sliding it
up or down. Once finished remember to tighten the screws again.
You can move it at a right angle by placing spacers (washer 1) between the coin box door
and the back of the coin box support .
When it is perfectly centered, remove the selector and tighten the 3 supporting screws (E).
Caution: these operations are not necessary using the coin mechanism recommended by
SandenVendo Europe S.p.A.
Press the coin return button and check that the mechanism works smoothly. It is important
that the selector opens as much as possible. If this doesn’t happen adjust again the height
of the coin return motor.
Connect the coin mechanism to the MDB connector that is inserted on a support near the
coin box.
THE COIN MECHANISMS WITH EXECUTIVE PROTOCOL HAVE 2 CONNECTORS; A POWER
SUPPLY CONNECTOR THAT COMES DIRECTLY FROM THE TRANSFORMER BOX, AND A
COMMUNICATION ONE FROM THE MAIN BOARD.
