Instructions for the installer, maintenance
technician and final user
26

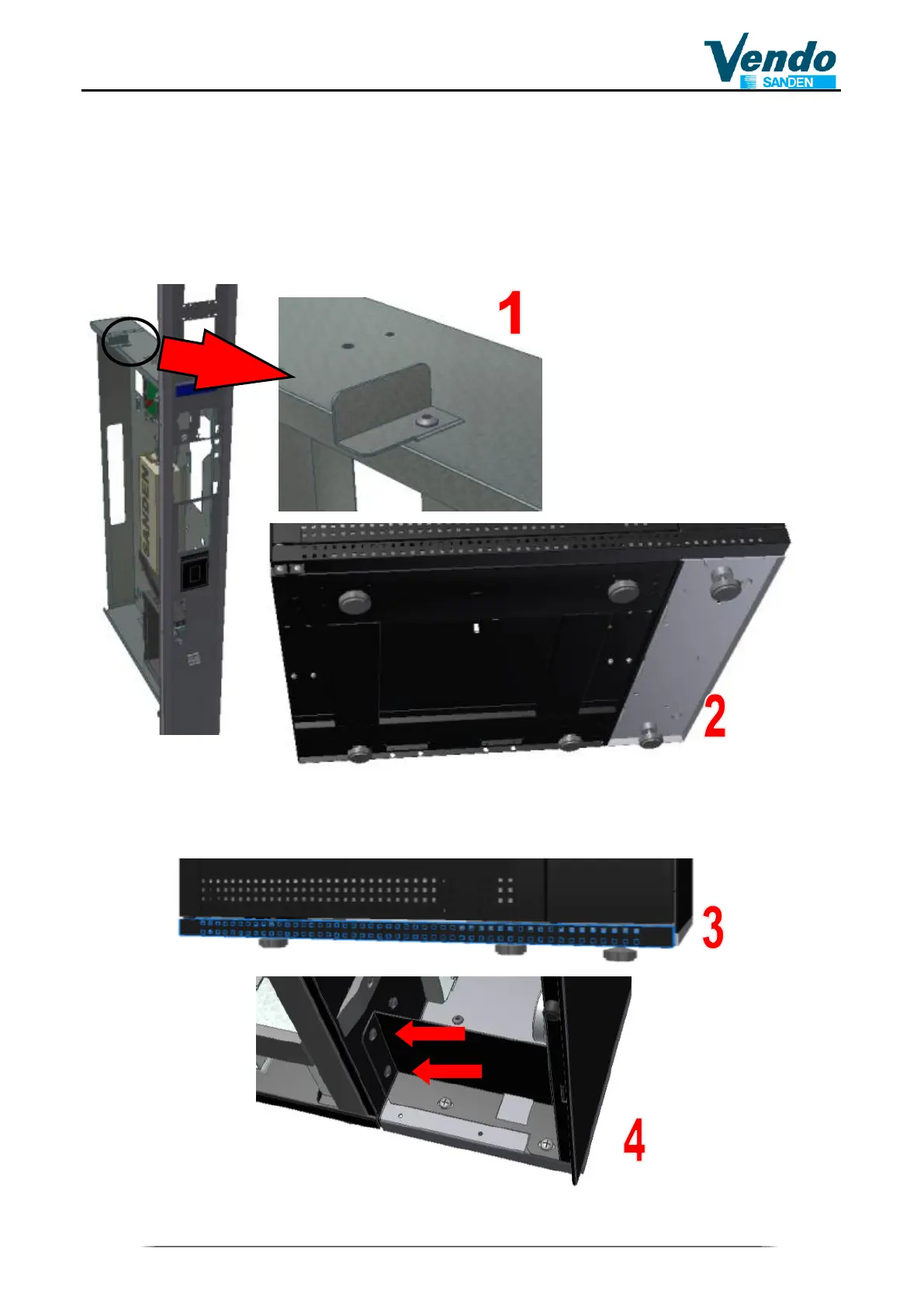

3.8 How to split the vending machine model DC6 - DM6
- Disconnect the vending machine from the power supply and put the service cord into the
drawer
- Make sure the vending machine is stood on 6 levelling screw
- Open the drawer and remove the fixing bracket (see image 1)
- Disconnect all the harnesses that coming from the cabinet (N.B. the ground wires are
fixed with screws) then remove the drawer form the vending machine
- Remove the carter under the door
- Remove the screws at the bottom on the cabinet control panel unit (see image 4)
